Intensive Care Ventilator with Multiple Ventilation Modes and Real-Time Parameter Monitoring for Critical Care Needs
Intensive Care Ventilator with Multiple Ventilation Modes and Real-Time Parameter Monitoring for Critical Care Needs
Specifications
Brand Name :
HDX MEDICAL
Model Number :
ZZ-001
Certification :
CE,FDA
Place of Origin :
CHINA
MOQ :
1
Price :
1
Supply Ability :
50000 PER DAY
Delivery Time :
3-5DAYS
Packaging Details :
CARTONS
Filter :
AC (50Hz or 60Hz, -20dB)
Standard :
ECG, NIBP, SpO2, RESP, TEMP, PR/HR
Applications :
Intensive Care
Oem :
Support
Hr Accuracy :
±1% or ±1bpm
Optional :
Printer, Etco2, IBP, Trolley, Wall Mount
Patient Current Leakage :
<10
Pulse Rate Range :
40-240bpm
Configuration :
Compact
Pr Accuracy :
±2bpm
Weight :
6.5 kg
Power :
low-power
Boards :
Full Separated para boards
Lead Mode :
5 leads or 3 leads
Sample :
Available
Description

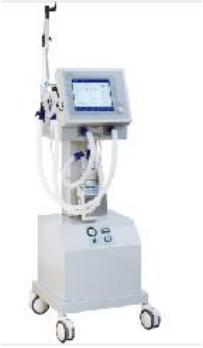

Resuscitation Ventilator-ZZ-001
Versatile intensive care ventilator for adult and pediatric patients.
Transportable, wheeled ventilator with integrated air compressor, ideal for isolated environments without medical air supply.
Multiple ventilation modes: Allows ventilation to be tailored to the patient's specific needs: includes volume-controlled ventilation (VCV), pressure-controlled ventilation (PCV), synchronized intermittent assisted ventilation (SIMV) with and without pressure support (PS), deep breaths, spontaneous breathing with continuous positive airway pressure (CPAP), as well as other modes such as PRVC, DualPAP, NIV, and standby mode. Monitoring parameters include tidal volume (TIV, VTE) and minute volume (MV).
Respiratory parameter monitoring: Measures and displays real-time parameters such as tidal volume, respiratory rate, airway pressure, flow, etc.
Waveform visualization: P-T, F-T, V-T; P-V, F-V, F-PV loops; optional SpO₂-T, EtCO₂-T
Trends of PEEP, FiO₂, MV, tidal volumes (VTE, VTI), Peak
Respiratory parameters:
Tidal volume: 20 – 2,000 mL
Rate: 1 – 100 bpm
Inspiratory time: 0.1 – 10 s in 0.1 s steps
FiO₂: 21–100%
Triggers: Flow (0.5–20 L/min), Pressure (–20 to 0 cm H₂O)
Pressure: PC 5–70 cm H₂O; PS 0–70 cm H₂O; Electronic PEEP 0–50 cm H₂O
Safety Alarms: Alert caregivers in case of malfunctions, parameter anomalies, or other critical events.
User-Friendly Interface: A clear ≥ 15-inch touchscreen for easy parameter monitoring.
Comprehensive, color-coded, 3-level audio-visual clinical alarms (volume, pressure, apnea, power)
Integrated 30-minute nebulizer
To deliver with capnography (EtCO₂) module.
Built-in lithium battery with a minimum runtime of 60 minutes.
