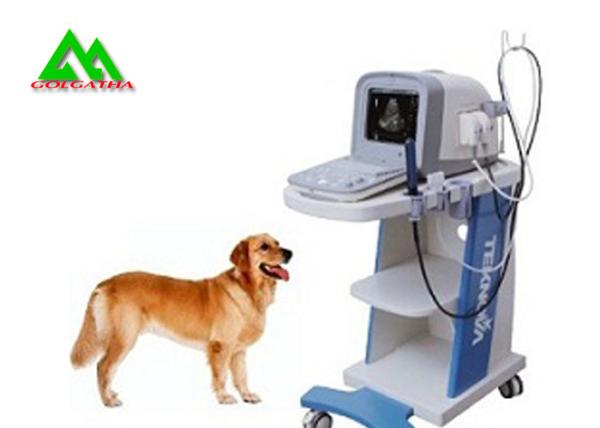

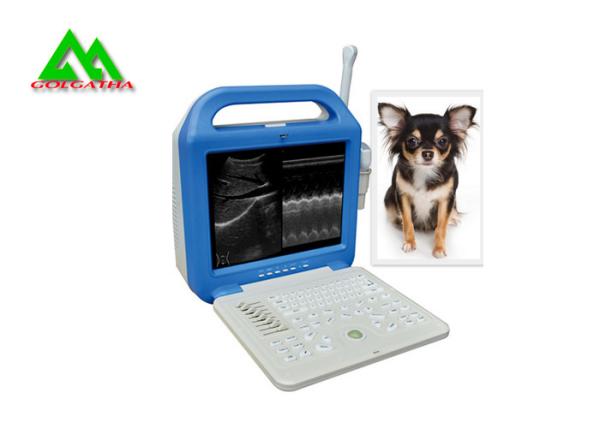

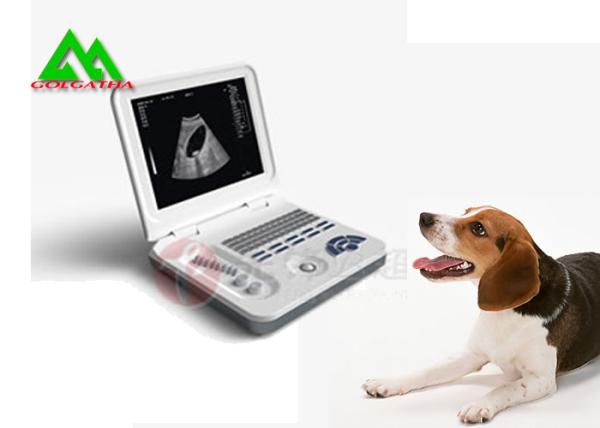

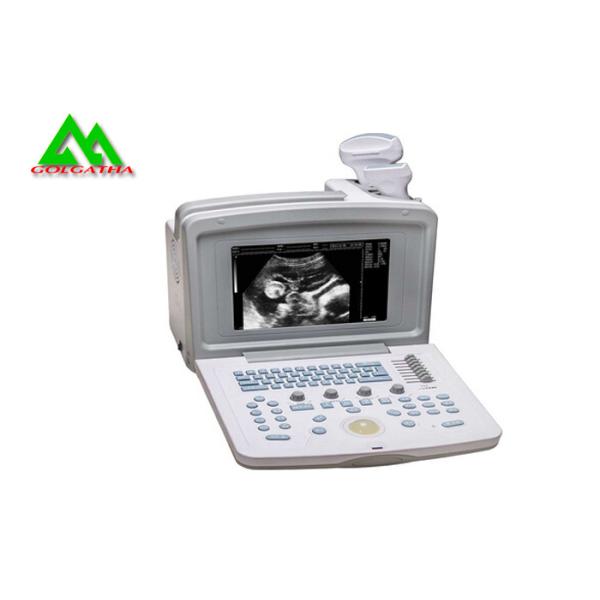

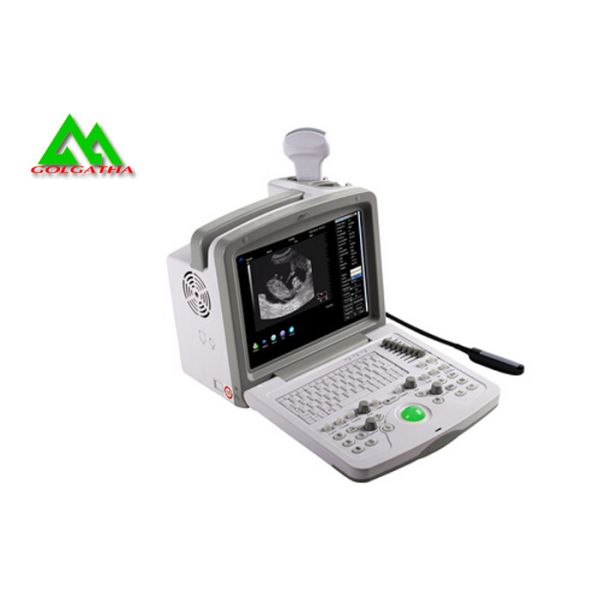

Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Specifications
Brand Name :
GOLGATHA
Model Number :
GGT - 3016
Certification :
CE/ISO
Place of Origin :
Guangzhou China
MOQ :
1
Price :
The price is negotiable
Payment Terms :
T/T
Supply Ability :
1-1000000 PCS per month
Delivery Time :
1-30 work days
Packaging Details :
Conventional packing
Display :
15” Touch Screen
Transducer frequency :
2-11Mhz
Scanning depth :
300mm
Power supply :
AC 100-240V 50/60HZ <80VA
Net weight :
Approximately 3.0kg
Gross weight :
Approximately 5.0kg
Description

Portable Full Digital Vet Ultrasound Scanner for Animal

B&W mode B,M,2B,B/M,4B
Gray scale 256
Display 15” Touch Screen
Transducer frequency 2-11Mhz
Digital technology
Wide-angle imaging
Panoramic focusing technology
Rolling M technology
Scanning depth 300mm

Imaging Processing
Pre-processing
Cloud processing technology
8-segment TGC
Gain(B&W)
Dynamic range
Persisitence
M Soften
Noise suppression
Post-processing
Image enhancement
Gray Map
Colorize Map
Tissue Specific Imaging
Left/right reverse
Up/down reverse
Functions:
Cine-loop 334 frame cine loop memory
USB ports 2
Zoom Pan zoom
THI Tissue Harmonic Imaging
DICOM 3.0 DICOM 3.0
Permanent storage 1024

Measurement & Calculations
B mode Distance, angle, area, volume, trace length, distance ratio
M mode Distance, time, slope, HR
Software packages Abdomen, OB, gynecology, small Part

Others
Transducer connector 2 active transducer connector ports
Peripheral ports
Video,2 USB ports,1 networking port,1 power inlet,
1 equipotential terminal
Power supply AC 100-240V 50/60HZ <80VA
Dimensions(main unit) 358mm(W)´366mm (L)´65mm (H)
Packing dimensions 378mm(W)´376mm(L)´85mm(H)
Net weight Approximately 3.0kg
Gross weight Approximately 5.0kg

Our Advantage :


1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3: One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5: We have very experienced engineers , can help you better use our products .
