YA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane Control
YA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane Control
YA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane Control
YA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane Control
YA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane Control
YA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane Control
YA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane Control
YA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane Control
Specifications
Place of Origin :
Zhangjiagang, China
Brand Name :
MEDIK
Certification :
CE, ISO13485
Model Number :
YA-D8-2
MOQ :
5 units
Price :
To be confirmed according to your order
Packaging Details :
Exportation standard carton or wooden case
Delivery Time :
15-30 days
Payment Terms :
T/T, L/C, West Union
Supply Ability :
1000 units per month
Name :
Lateral Tilting Multifunction Electric Hospital Bed
Overall size :
2020-2230*1050*570-820mm
Wheels :
125mm
Feature :
With mechanical CPR function
Function :
8 Function
Loading Capacity :
235kgs
Description

Technical parameters

Overall size 2020-2230*1050*570-820mm
Back section adjustable angle 0-75°±5°
Knee section adjustable angle 0-35°±5°
HI-LOW 570-820mm
Trendelenburg 0-15°±1°
Reverse-Trendelenburg 0-15°±1°
Tilt left 0-12°±1°
Tilt right 0-12°±1°
Castors Four Dia 125mm castors with central braking system
Loading capacity 230kg

Main Features

  • Multiple functions can be achieved with this 3 column bed
  • The left and right tilt function can be realized by the column
  • One button total chair position is a special feature of this bed
  • X-ray translucent back section

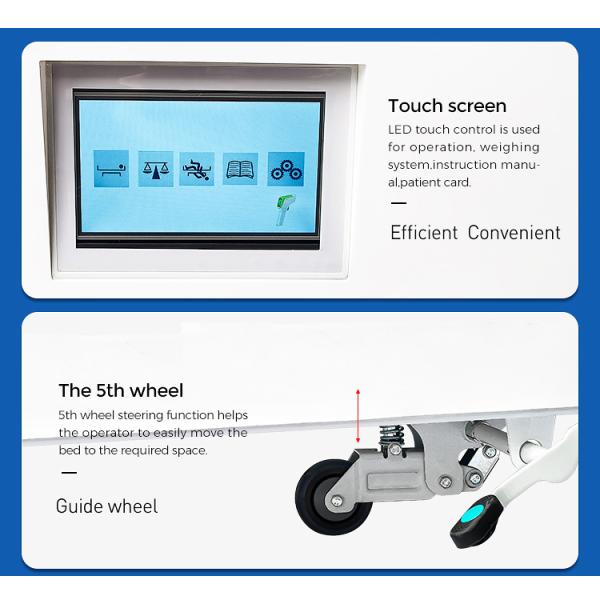

  • Fifth wheel for direction
  • Electric CPR and manual CPR on both sides
  • Angle Indicator for Backrest & Trendelenburg & Rev. Trend.
  • Weighing scale system (option)

YA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane Control

YA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane ControlYA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane ControlYA-D8-2 Lateral Tilting Multifunction Electric Hospital Bed With Tactile Membrane Control
