Specifications
Place of Origin :
Zhangjiagang, China
Brand Name :
MEDIK
Certification :
CE, ISO13485
Model Number :
YA-C101A03
MOQ :
1 unit
Price :
To be confirmed according to your order
Packaging Details :
Exportation standard carton or wooden case
Delivery Time :
15-30 days
Payment Terms :
T/T, L/C, West Union
Supply Ability :
1000 units per month
Name :
Hydraulic Obstetrics Gynecological Examination Chair Multifunctional CE ISO
Size :
2050*980*580-950mm
Apply crowd :
gynecology maternity
Head board :
ABS material
Castors :
150mm
Loading capacity :
235kgs
Description

Hydraulic Gynecological Chair For Obstetrics Examination Multifunctional CE ISO

Specification:

Model YA-C101A-03
Overall size (L*W*H) 2050*980*580-950mm
ed size without headboard&footboard 1815*880mm
Filth basin size 468*338*125mm
HI-LOW 580-950mm
Back section turning up ≥70° by gas spring
.Trendelenburg and Reverse-Trendelenburg° ≥12°/≥5°
castors 150mm
Leg section telescope 550mm
Loading capacity 235kg

Key features:

  • YA-C101A-03 type colligated delivery bed is applicable to childbearing and laying operation and normal surgical including chest, perineum and urine etc.The main bed and assistant table board
  • is linked as a whole one and dischargeable which adopt hydraulic pressure step and concealed
  • stainless steel basin.The oil pump and base chassis cover are all made by stainless steel.
  • Mattress surface: Enameled steel base with ABS plastic top
  • ABS head and foot board, detachable
  • High-density foam mattress with water-proofing PU cover, which can be removable, also with an extra PU cover for pelvic section
  • Side rails: 2pcs, artificial leather with steel frame, collapsible
  • Four 150mm castors with central braking system
  • Imported US POWER-PACKER piston for movement of HI-LO
  • Gas spring for movement of back section, Trendelenburg and Reverse-trendelenburg
  • With leg section which can slide below the pelvic position
  • With leg support holder, waist grab handle, footrest, pillow, stainless s
  • V. drip pole and drainage hooks available
  • Application: For childbirth, gynecology surgical operation etc.

Standard accessory

  • Gas spring for back section adjustments
  • 1 set waterproof cushion
  • 1 pair waist grab handles
  • 1 pair side rails
  • 1 pair leg holders

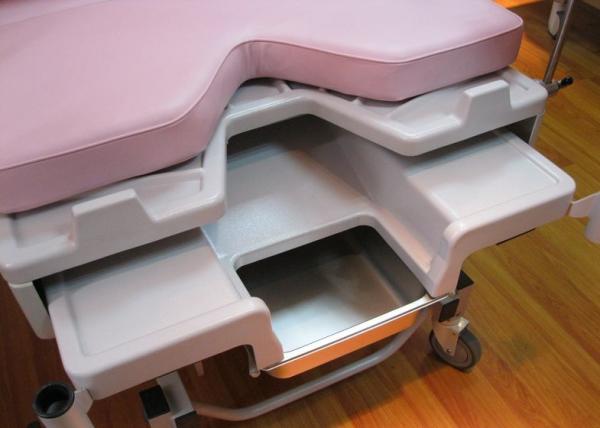

  • 1 pc filth basin
  • 1 pc I.V. pole
  • Structure: Epoxy coated steel
  • Loading capacity:250kgs
  • Packing: 179*110*107cm=2.1M3 G.W.:287kgs

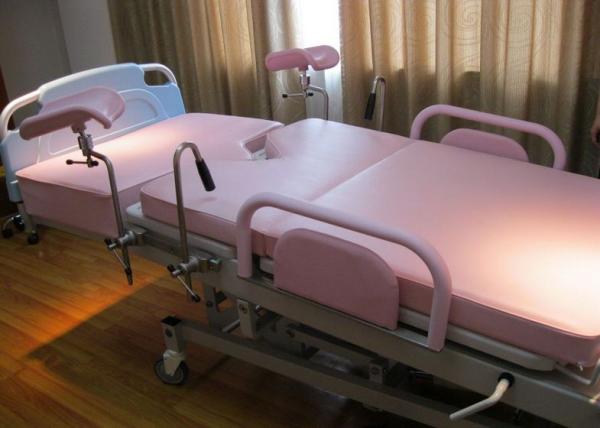

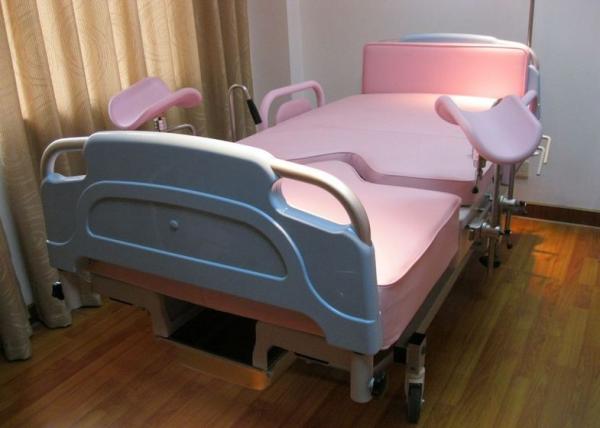

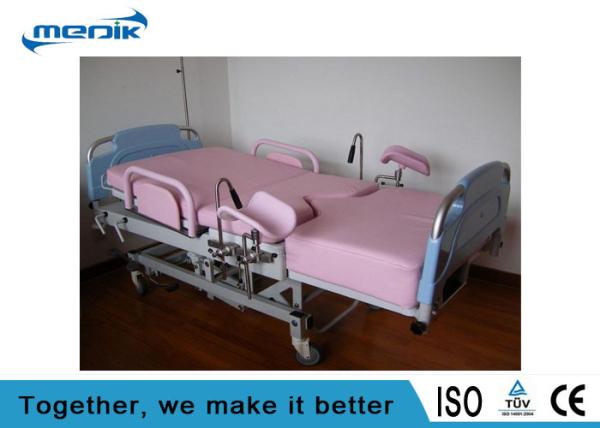

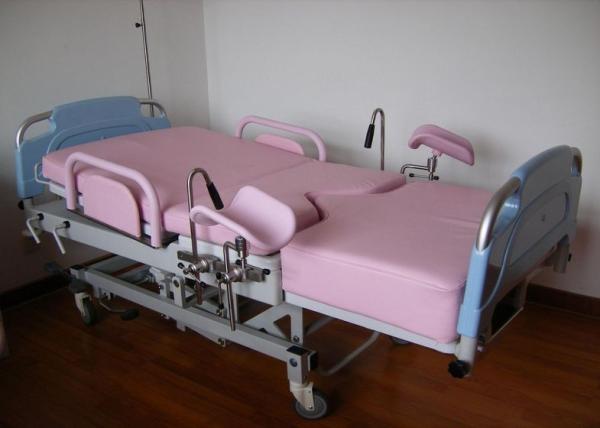

Picture show:

Hydraulic Obstetrics Gynecological Examination Chair Multifunctional CE ISO

Hydraulic Obstetrics Gynecological Examination Chair Multifunctional CE ISO
