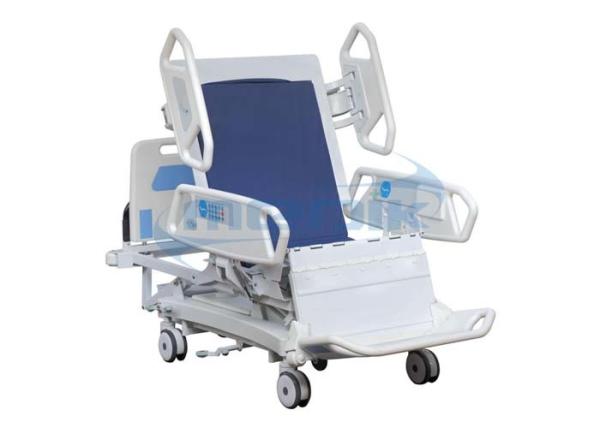

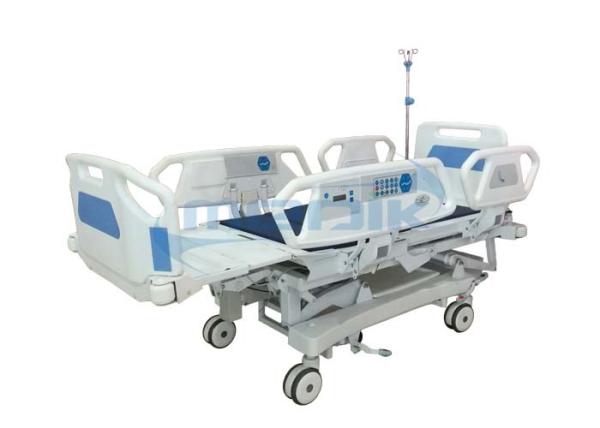

Eight Fucntion ICU Electric Hospital Bed With X-ray Function Chair Position
Eight Fucntion ICU Electric Hospital Bed With X-ray Function Chair Position
Eight Fucntion ICU Electric Hospital Bed With X-ray Function Chair Position
Eight Fucntion ICU Electric Hospital Bed With X-ray Function Chair Position
Eight Fucntion ICU Electric Hospital Bed With X-ray Function Chair Position
Eight Fucntion ICU Electric Hospital Bed With X-ray Function Chair Position
Eight Fucntion ICU Electric Hospital Bed With X-ray Function Chair Position
Eight Fucntion ICU Electric Hospital Bed With X-ray Function Chair Position
Specifications
Brand Name :
Medik
Model Number :
YA-D8-1
Certification :
CE/ISO
Place of Origin :
Zhangjiagang, China
MOQ :
5 units
Price :
To be confirmed according to your order
Payment Terms :
T/T, L/C, West Union
Supply Ability :
1000 units per month
Packaging Details :
Exportation standard carton or wooden case
Name :
X-ray Function Chair Position
Overall Size :
2020-2230*1050*550-950mm
Caster Diameter :
150mm
Feature :
One button chair position
Function :
5 Function
Maximum Safe Load :
250kg
Description

Eight Fucntion ICU Electric Hospital Bed With X-ray Function Chair Position

Specification:

Overall Length(extend) 2230mm
Overall Length(not extended) 2130mm
Overall Width 1050mm
Patient Platform Length(extended) 2020mm
Patient Platform Length(not extended) 1920mm
Patient Platform Width 900mm
Caster Diameter 150mm
Back-rest Lifting 0°- 75°
Knee-rest Lifting 0°- 45°
Trendelenburg/Reversed trendelenburg 0°- 12°
Lateral tilt 0°- 30°
Height Adjustment 550-950mm
Maximum Safe Load 250kg

Key features:

  • Length extention.
  • One button chair position.
  • Bed frame and leg are all made of cold-rolled steel plate and tube and coated by electrostaticspray after twice phospatization.
  • Back section is made of American electro plate, X-ray available.
  • Head and foot board, side Rails are all made of imported PP materials. Side rails with angle indication and operation buttons.
  • Four bumpers on easy corner.
  • It is equipped with LINAK motor imported from Denmark which is quiet and noiseless and able to support over 250kgs.
  • Backrest and footrest can move at the same time only by one button on the panel.
  • Centrally controlled silent castors of high strength and high wear resistance enable the bed to move flexibly, lightly and conveniently.
  • CPR release mechanism.
  • Backup battery.
  • Direct wheels, easy to control direction.(optional)
  • With infusion stand and drainage hook.With night light system.
  • Weighting scale system(optional)
