14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility
14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility
14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility
14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility
14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility
14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility
Specifications
Brand Name :
KEIND
Model Number :
KND-FP-14X17
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T,Western Union,MoneyGram,D/P,D/A
Delivery Time :
5-8working days
Detector Technology :
Amorphous Silicon
Scintillator :
CsI
Active Area (inch) :
14x17
Pixel Matrix :
2304 × 2800
Pixel Pitch (µm) :
150
Spatial Resolution (lp/mm) :
3.3
AD Conversion (bit) :
16
Battery Autonomy (h) :
8
Interface :
DICOM compatible, USB, Ethernet
WIFI :
2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode :
AED (Optional) / Software
Internal Image Storage :
200 full size images
Full Image Time (s) :
5
Dimensions (mm³) :
384 × 460 × 15
Weight (kg) :
3.3
Static Loading :
150kg Uniformly
Ingress Protection :
IPX1
Operating Temperature (°C) :
5 ~ 35
Storage & Transport Temperature with Package (°C) :
-20 ~ 55
Operating Humidity (% RH) :
10 ~ 90 (Non-Condensing)
Storage & Transport Humidity with Package (% RH) :
5 ~ 95 (Non-Condensing)
Description

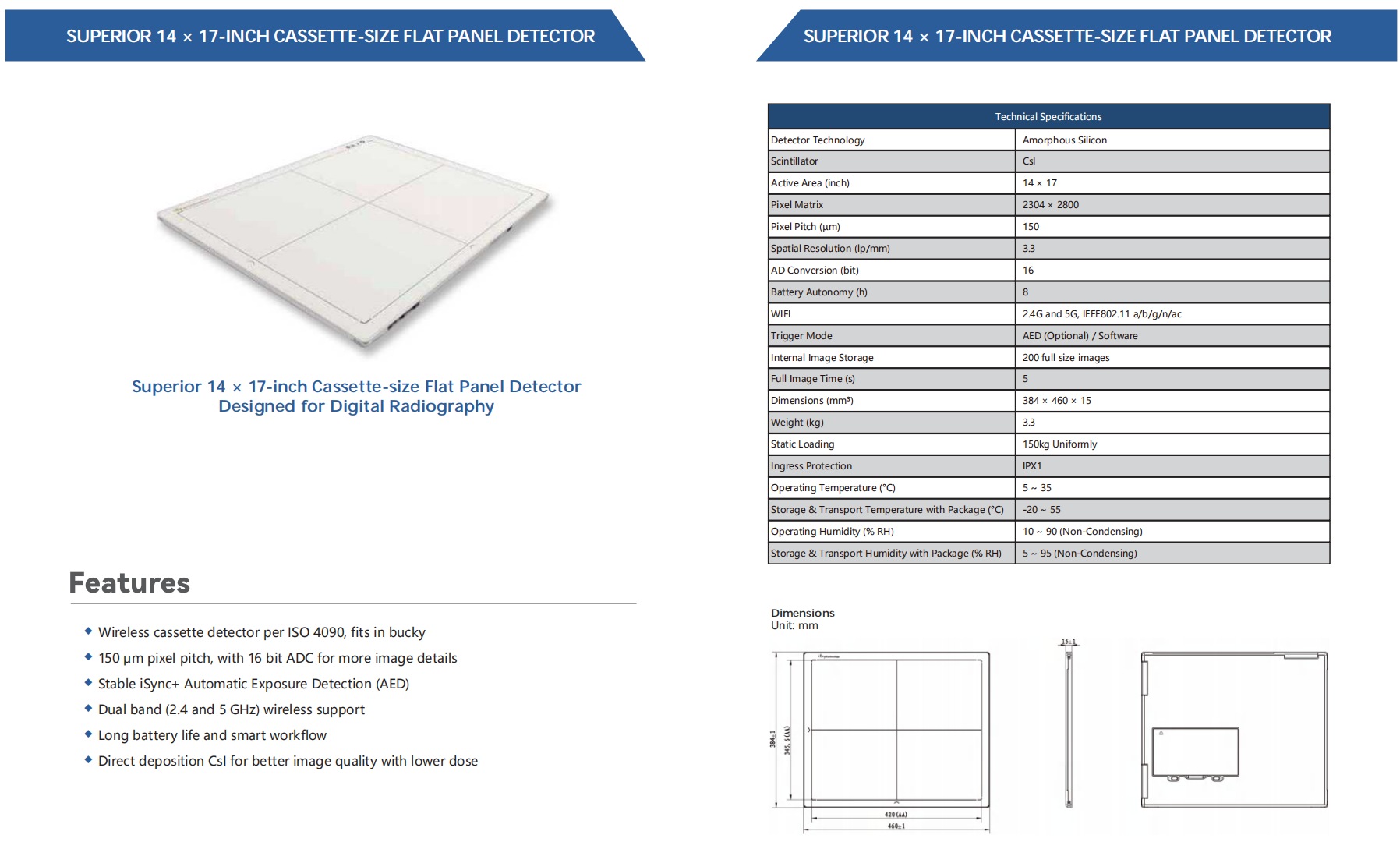

FLAT PANEL DETECTOR SUPERIOR 14 * 17-INCH CASSETTE-SIZE
14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility
This high-performance flat panel detector features a standard 14*17-inch cassette size, providing superior image quality and reliability for medical imaging applications. Designed for compatibility with existing systems while delivering advanced digital performance.
