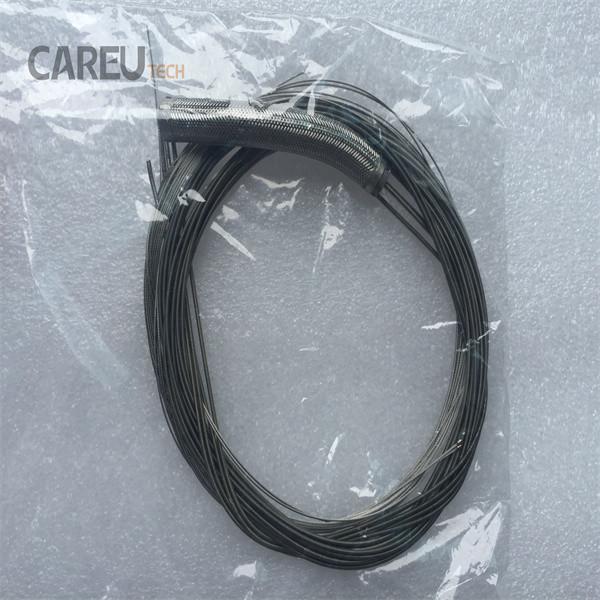

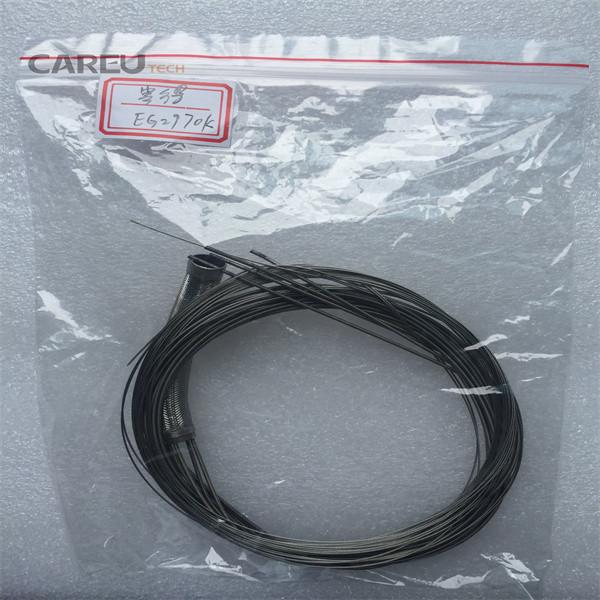

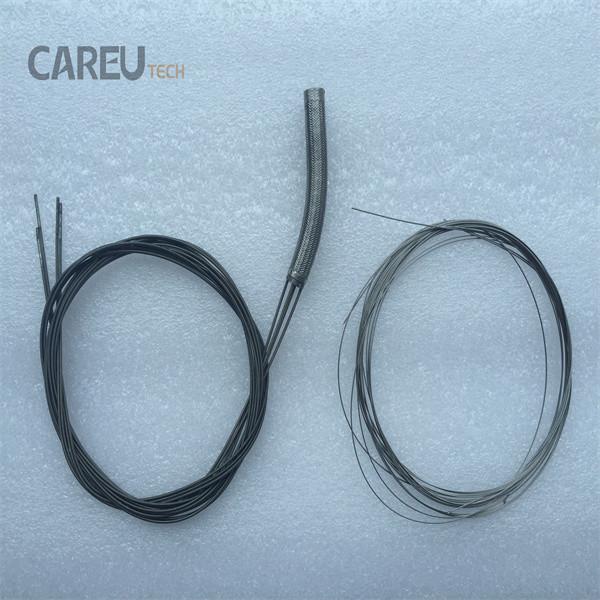

PENTAX Bending Section EG-2970K For Endoscopy

► Brief Description

The Bending Section is a critical articulating component located at the distal tip of the Pentax EG-2970K Video Gastroscope. It is engineered to provide smooth, precise maneuverability, allowing clinicians to navigate the complex anatomical pathways of the upper gastrointestinal tract. Typically constructed from medical-grade stainless steel components and mesh, this assembly houses and protects the internal optical fibers, light guide bundles, and control cables while ensuring reliable four-way flexibility.

► Features

• Multi-Directional Steering: Facilitates active 4-way articulation (Up/Down/Right/Left) controlled via the endoscope's control body knobs, allowing physicians to direct the distal tip precisely toward target lesions or tissue areas.
• Channel and Component Protection: Safely routes internal elements—including the 3.2 mm working channel, air/water nozzles, light guide fiber bundles, and forward water jet mechanism—through tight bends without pinching or damage.
• Fluid Ingress Prevention: Works in tandem with the bending rubber sleeve to maintain a watertight seal, protecting sensitive internal electronics and optics from bodily fluids.
• Enhanced Maneuverability: Restores original deflection performance during repairs, eliminating issues like image drift, loose angulation control, or restricted movement.

► Specification

►FAQ

What are the primary signs that the bending section of a Pentax EG-2970K needs replacement or repair?

• A: Common indicators include:

  • Restricted or stiff angulation movement (failure to reach the full range of 210° Up / 120° Down/Right/Left).

  • Loose, sloppy, or unresponsive control knobs.

  • Visible cracking, tearing, or pinholes in the outer bending rubber sleeve (which compromises the waterproof seal).

  • Internal component exposure or image distortion caused by acute pinching of internal channels and wires.

What materials are used in the construction of this bending section?

• A: High-quality medical-grade stainless steel is used for the interlocking skeleton rings, flexible mesh, and control hinges to ensure structural durability, corrosion resistance, and biocompatibility during repetitive flexing cycles.
