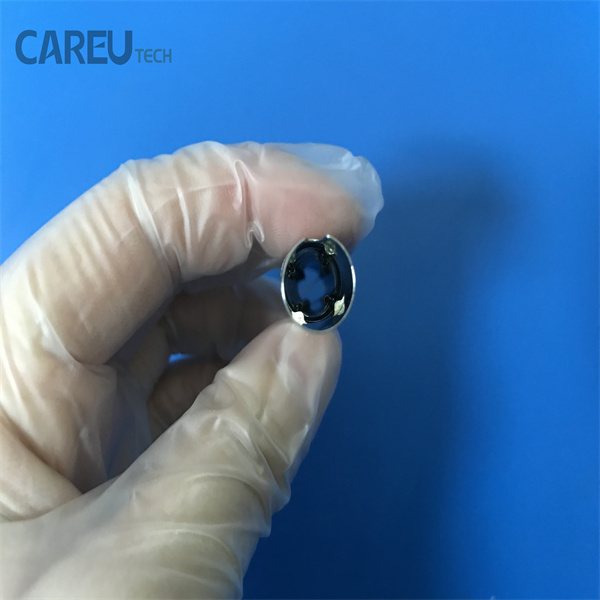

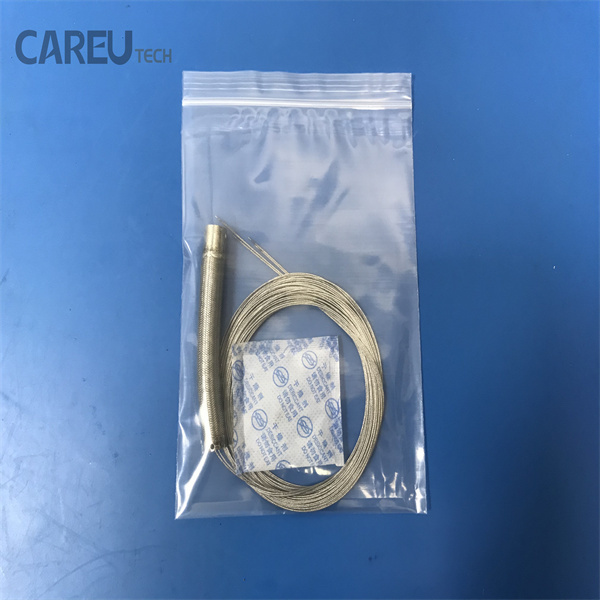

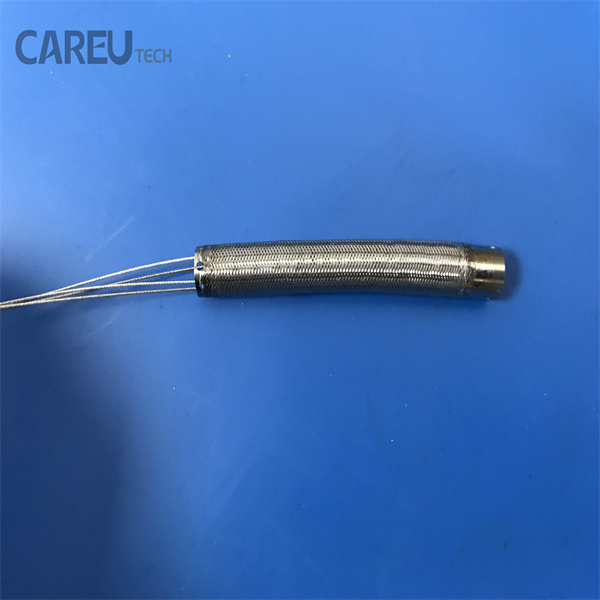

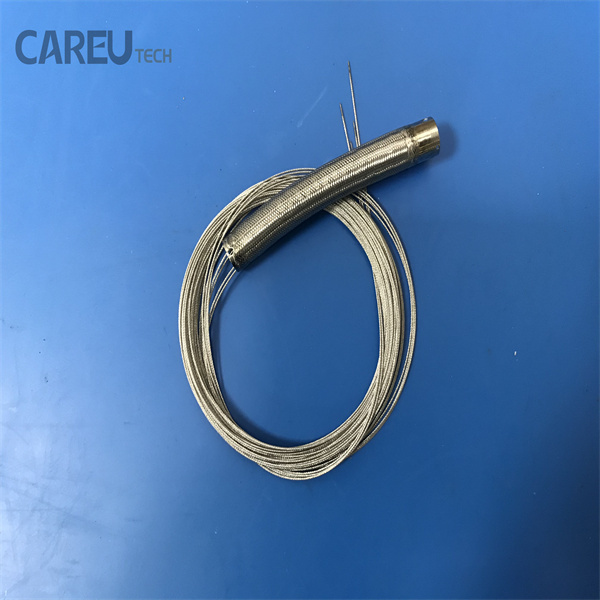

Bending Section Assembly For Olympus GIF-HQ290 Video Gastroscope

► Brief Description

The Bending Section Assembly for the Olympus GIF-HQ290 is the mechanical component that allows the distal tip of the gastroscope to be steered inside the patient's upper gastrointestinal (GI) tract.

► Features

• Precise SteeringTranslates the rotation of the control body knobs into exact, responsive deflection of the distal tip, allowing the physician to navigate the esophagus, stomach, and duodenum.
• RetroflexionThe crucial 210° Up angle allows the scope tip to bend backward onto itself (retroflexion). This is vital for observing the area immediately beneath the gastroscope tip, particularly the gastric fundus and cardia, which is a key area for detecting lesions and varices.
• Instrument AlignmentEnsures that diagnostic or therapeutic accessories passed through the 2.8mm channel (e.g., biopsy forceps or snares) can be accurately aimed at a lesion, even when the scope is fully angled.
• ProtectionHouses and protects the critical internal components—like the CCD chip, light guide bundle, angulation wires, and the 2.8mm working channel—from excessive stress or collapse during high-degree angulation.

► Specification

► FAQ

What are the parts of an endoscope?

An endoscope is composed of three primary parts: a distal tip, an insertion tube, and a control handle. Modern endoscopes are equipped with advanced imaging technology, enabling them to capture high-definition, high-resolution visuals that can be significantly magnified for a closer examination of mucosal surfaces.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.

► About Us

CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.

Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
