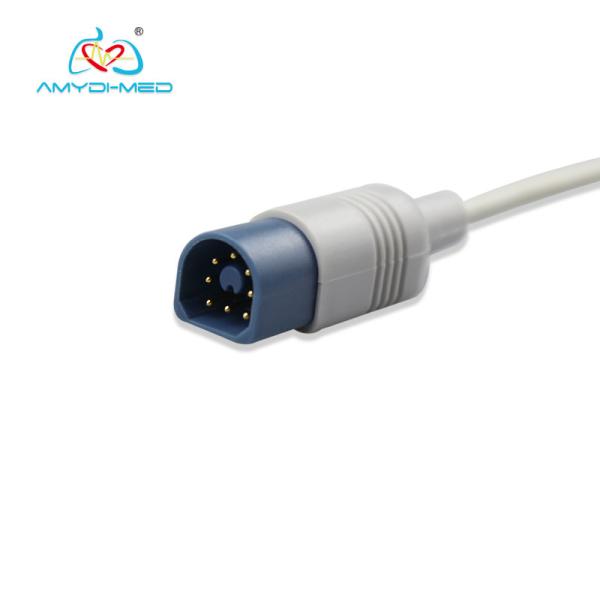

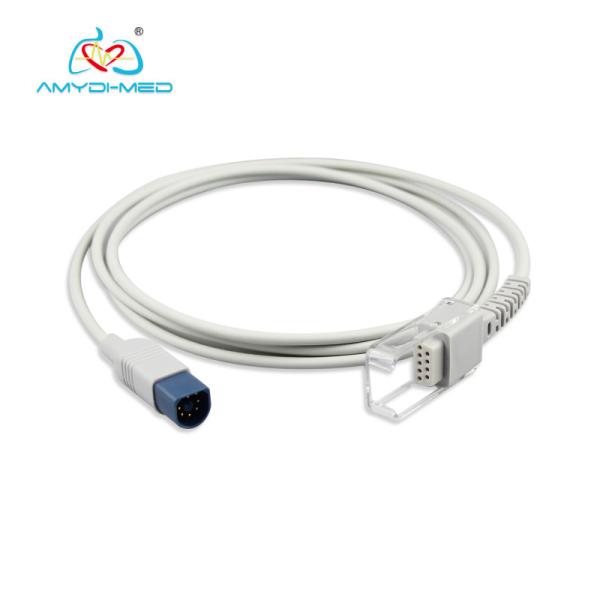

8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Amydi-med
Model Number :
AMD-RS-AT0001-L
Price :
CN¥57.03-85.54/pieces
Disinfecting Type :
Ultraviolet Light
Properties :
Medical Materials & Accessories
Size :
3.0M
Stock :
NO
Shelf Life :
3 years
Material :
TPU, TPU
Quality Certification :
TUV
Instrument classification :
Class I
Safety standard :
GB2626-2006
Type :
spo2 reusable 7 pin sensor
Compatible Brand :
For Nellcor
Service :
OEM,ODM
Cable Length :
1.0 M
Cable Color :
Grey
Warranty :
1 Year
Certificate :
CE/ISO13485
Plug style :
8 P
Application :
Spo2 Pulse Monitor
Description
8 Pin Adapter Medical Spo2 Sensor Cable Spo2 Sensor Extension Cable
Products Description
Technical Specifications
Category
SpO2
Compatible Brand
For HP
Compatible For Models
M3,M4,MP20,MP30,MP40,MP50,MP70,MP80,VM4,VM6,VM8,
M2601A,M300A,M3500B,M4735A
Cable Color / Length
Gray / Blue - 3 Meter
Connector / Plug Style
8 P
Cable Material
TPU Jacket
Sensor / Probe Style
Adult forehead / Adult ear clip / Adult finger clip / Adult finger tip /
Pediatric finger clip / Pediatric finger tip / Neonate detachable wrap /
Neonate undetachable wrap
CERTIFICATE and report
TUV , ISO 13485, CFDA, RoHS , Biocompatibility
Latex-free
Yes
Packaging Type
1pcs per PE bag
Warranty
1 Year
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
SpO2 Sensor Types
Disposable probe: Adapter is required.
1
In-line (integrated): connect directly to the oximeter.
2
Split type: Need to connect the probe and the device with a patch cord (also called an adapter) to work.
3
Disposable probe: Adapter is required.
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Adult Finger Cliip
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Adult Finger Tip
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Adult Ear Clip
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Adult Forehead
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Pediatric Finger Clip
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Pediatric Finger Tip
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Neonate Undetachable Wrap
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Neonate Detachable Wrap
SpO2 Sensor - In-line And Split Probes Inclue
SpO2 Sensor - Disposable Probes Include
Adult finger clip type
Adultchildbaby
Adult finger sleeve type
Newborn
Adult ear clip type
Children's finger clip type
Children's finger sleeve type
Newborn wrapping belt type
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
SpO2 Sensor Features for In-line (integrated) Blood Oxygen Probe.
a
Usually the in-line length is 3M, and some are 3.6M.
b
Advantages: save the cost of an extension cord, relatively low cost, easy to use.
c
Disadvantages: But if the probe is damaged, the entire line needs to be scrapped.
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
SpO2 Sensor Features for Split Blood Oxygen Probe
a
SpO2 adapter cable: Also known as adapter, the general length is 8FT (that is, 2.45 meters, the connector type and wiring protocol
of the instrument end are different due to different brands and models of instruments, but the connector application at the probe
end is DB9F at most)
b
Reusable blood oxygen probe (length is 1M, connectors mostly use DB9M, matching with blood oxygen adapter DB9F)
c
Advantages: When the probe is broken, the adapter cable is still available, and the maintenance cost is low.
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
SpO2 Sensor Features for Disposable blood oxygen probe
Adult
≥30kg
Pediatric
10~50kg
Infant
3~20kg
Neonate
Neonate<3kg or Adult >40kg
Amydi-med SpO2 Sensor Cable images
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Amydi-med SpO2 Sensor Cable Packing Process
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Recommend Products
Why Choose Us
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Company Profile
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Exhibition
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Certifications
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Shipping & Payment
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
Customer Review
8 Pin Nellcor Spo2 Extension Cable Medical Spo2 Sensor Cable With Philips HP
FAQ
1.What is your payment term?
T/T, L/C, Western Union, PayPal, Money Gram, Trade Assurance order, Secure Payment and so on.
2. Where is your Loading Port?
Shenzhen China
3. What is your Samples time?
1 days for exsist samples, 3-7days for custom samples.
4. What is your Mass Production?
Normally 7-15days after received payment.
5. How fast will you quote to clients?
Quotation will be followed in 24hours once received your inquiry.
6. How long will you guarantee the mass quality?
3-12months
7.Would you accept custom logo printing or custom mould?
All is weclome, just contact us at once.
8.How about shipping way after making order?
Air, Sea and Express shipping are all acceptable.
9. How to control Quality of Mass?
QC workers check each step of production time by time.
Also customers' QC or 3rd party inspection is acceptable.
Guarantee: Quality of mass will be the same as the approval samples.
