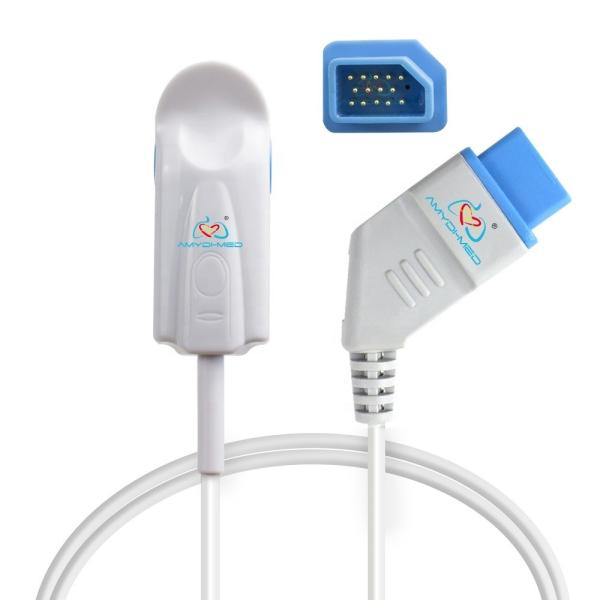

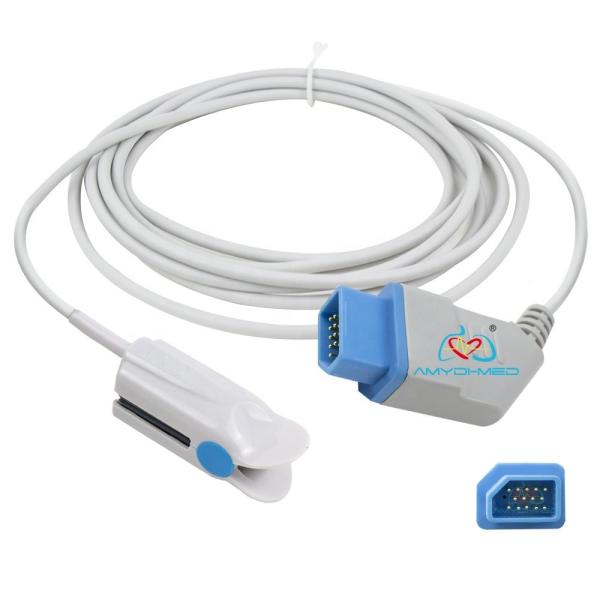

15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Amydi-med
Model Number :
AMD-RS-AC0029-L
Packaging Details :
1pcs/plastic bag ,then put them in a big PE bag ,finally put them in a carton .
Supply Ability :
30000 Piece/Pieces per Month
MOQ :
2 pieces
Price :
CN¥64.15-135.43/pieces
Disinfecting Type :
Ultraviolet Light
Properties :
Medical Materials & Accessories
Size :
3.0 m
Stock :
NO
Shelf Life :
3 years
Material :
TPU, Spo2 Sensor
Quality Certification :
ce
Instrument classification :
Class II
Safety standard :
GB9706.1-2007
Compatible brand :
NIHON KOHDEN
Certificate :
CE/ISO13485
Service :
OEM,ODM
Cable material :
TPU
Warranty :
2 years
Color: :
Grey
Length :
3 meters
Application :
adult
Type :
Surgical Supplies
Port :
Shenzhen Port
Description
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probee


Products Description
Technical Specifications




Category

SpO2


Compatible Brand

NIHON KOHDEN


Compatible Model

Bedside Monitor: BSM-4101,4103,4111,4113 Life scope P,BSM-5105, 5135 LifeScope A,BSM-2351, 2353 LifeScope L,BSM-2301, 2303
LifeScope I,BSM-73


Cable Color / Length

Gray / Blue - 3Meters

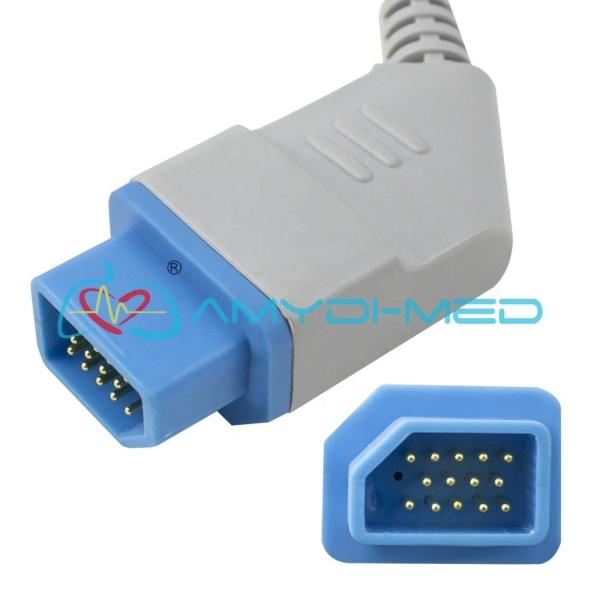

Connector / Plug Style

Trapezoid-15P


Cable Material

TPU Jacket


Sensor / Probe Style

Adult forehead / Adult ear clip / Adult finger clip / Adult finger tip /
Pediatric finger clip / Pediatric finger tip / Neonate detachable wrap /
Neonate undetachable wrap


CERTIFICATE and report

TUV , ISO 13485, CFDA, RoHS , Biocompatibility


Latex-free

Yes


Packaging Type

1pcs per PE bag


2Warranty

2 Years


15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
SpO2 Sensor Types

Disposable probe: Adapter is required.


1
In-line (integrated): connect directly to the oximeter.



2
Split type: Need to connect the probe and the device with a patch cord (also called an adapter) to work.



3
Disposable probe: Adapter is required.



15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe

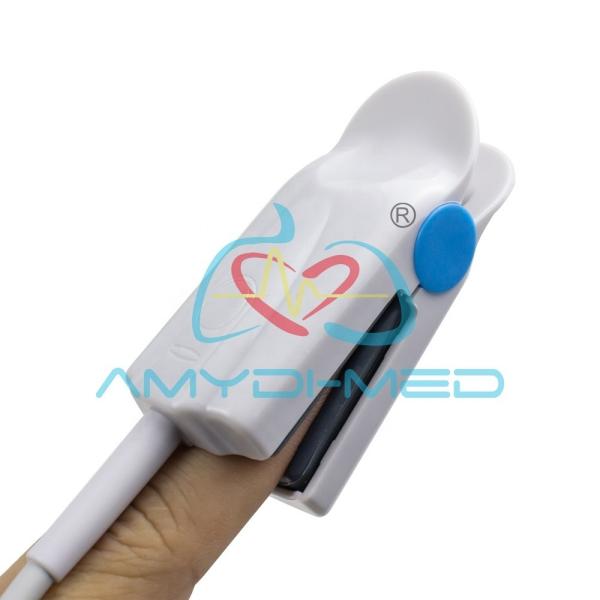

Adult Finger Cliip
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Adult Finger Tip
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Adult Ear Clip
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Adult Forehead
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Pediatric Finger Clip
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Pediatric Finger Tip
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Neonate Undetachable Wrap
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Neonate Detachable Wrap
SpO2 Sensor - In-line And Split Probes Inclue


SpO2 Sensor - Disposable Probes Include

Adult finger clip type


Adultchildbaby

Adult finger sleeve type


Newborn

Adult ear clip type




Children's finger clip type




Children's finger sleeve type




Newborn wrapping belt type




15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
SpO2 Sensor Features for In-line (integrated) Blood Oxygen Probe.

a
Usually the in-line length is 3M, and some are 3.6M.
b
Advantages: save the cost of an extension cord, relatively low cost, easy to use.
c
Disadvantages: But if the probe is damaged, the entire line needs to be scrapped.
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
SpO2 Sensor Features for Split Blood Oxygen Probe

a
SpO2 adapter cable: Also known as adapter, the general length is 8FT (that is, 2.45 meters, the connector type and wiring protocol
of the instrument end are different due to different brands and models of instruments, but the connector application at the probe
end is DB9F at most)
b
Reusable blood oxygen probe (length is 1M, connectors mostly use DB9M, matching with blood oxygen adapter DB9F)
c
Advantages: When the probe is broken, the adapter cable is still available, and the maintenance cost is low.
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
SpO2 Sensor Features for Disposable blood oxygen probe

Adult
≥30kg
Pediatric
10~50kg
Infant
3~20kg
Neonate
Neonate<3kg or Adult >40kg
Amydi-med SpO2 Sensor Cable images
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Amydi-med SpO2 Sensor Cable Packing Process
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Recommend Products

Why Choose Us
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe

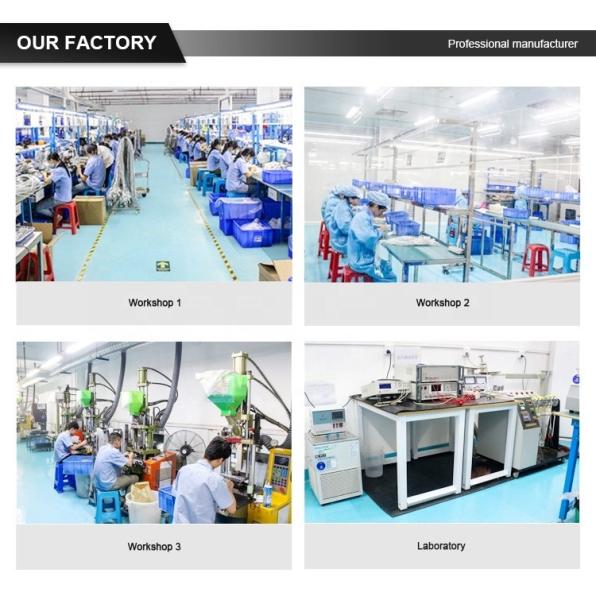

Company Profile
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Exhibition
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Certifications
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Shipping & Payment
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
Customer Review
15 Pin Nihon Kohden Oxima Pulse Spo2 Sensor 3 Meter SpO2 Probe
FAQ
1.What is your payment term?
T/T, L/C, Western Union, PayPal, Money Gram, Trade Assurance order, Secure Payment and so on.
2. Where is your Loading Port?
Shenzhen China
3. What is your Samples time?
1 days for exsist samples, 3-7days for custom samples.
4. What is your Mass Production?
Normally 7-15days after received payment.
5. How fast will you quote to clients?
Quotation will be followed in 24hours once received your inquiry.
6. How long will you guarantee the mass quality?
3-12months
7.Would you accept custom logo printing or custom mould?
All is weclome, just contact us at once.
8.How about shipping way after making order?
Air, Sea and Express shipping are all acceptable.
9. How to control Quality of Mass?
QC workers check each step of production time by time.
Also customers' QC or 3rd party inspection is acceptable.
Guarantee: Quality of mass will be the same as the approval samples.
