Introduction:

The full body female manikin and pediatric manikins designed to improve delivery, midwifery and nursing care skills of medical workers, simulating a highly advanced Delivery and Childbirth Training Manikin, with Maternal and Neonatal Emergency Care skills and other care skills.

System components:

1. Delivery and adult emergency used maternal manikin

2. Emergency and nursing neonatal manikin

3. Childbirthing fetus model

4. Delivery process and fetal heart sound controller

5. Adult CPR electronic display

6. Simulative cervical os

7. Antepartum cervical changes and birth canal relation modules

8. Post partum 48 hours uterus

9. Postpartum perineum incision and suturing modules

10. Simulative placenta/umbilical cord

11. Lifting “Soft pad” for Leopold maneuver practice

12. Other auxiliary utensils

Maternal manikin features:

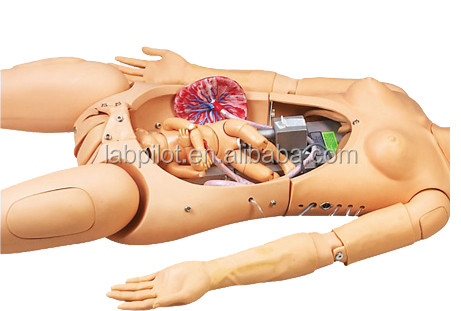

(1) The mechanical gear device is equipped with two mechanical adapters for connecting simulative delivery fetus; fetus and adapter, the adapter and adapter, adapter and gear device are all fixed with elastic clamp device. There are system protective limit switches on both top and lower end of the gear device.

(2) The delivery process and fetus heart sound controller can suspend, initialize, start and continue the delivery process; delivery speed is adjustable according to requirement, have 1-4 steps;

(3) Fetal heart sound auscultation: can set fetal heart sound frequency and volume, heart rate is adjustable between ?0-180?;

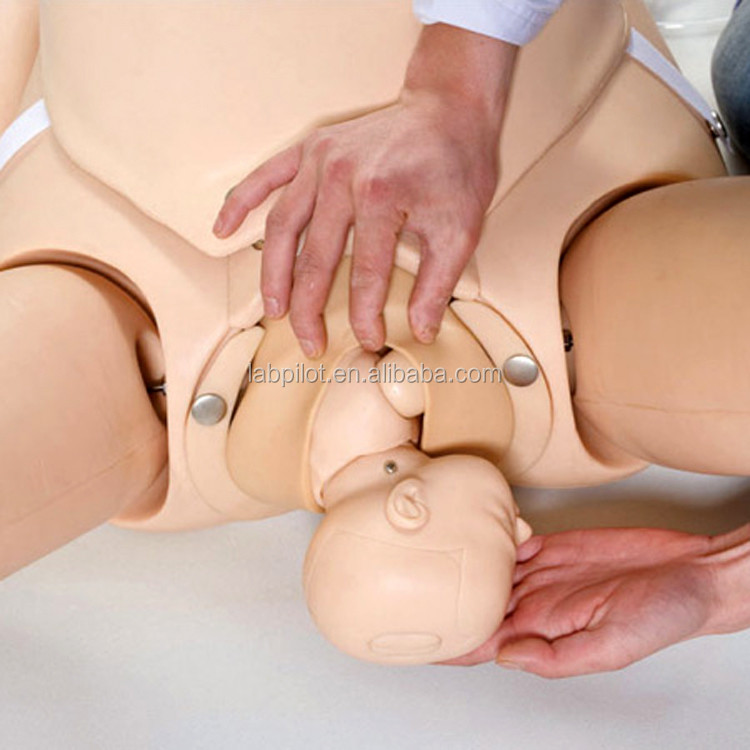

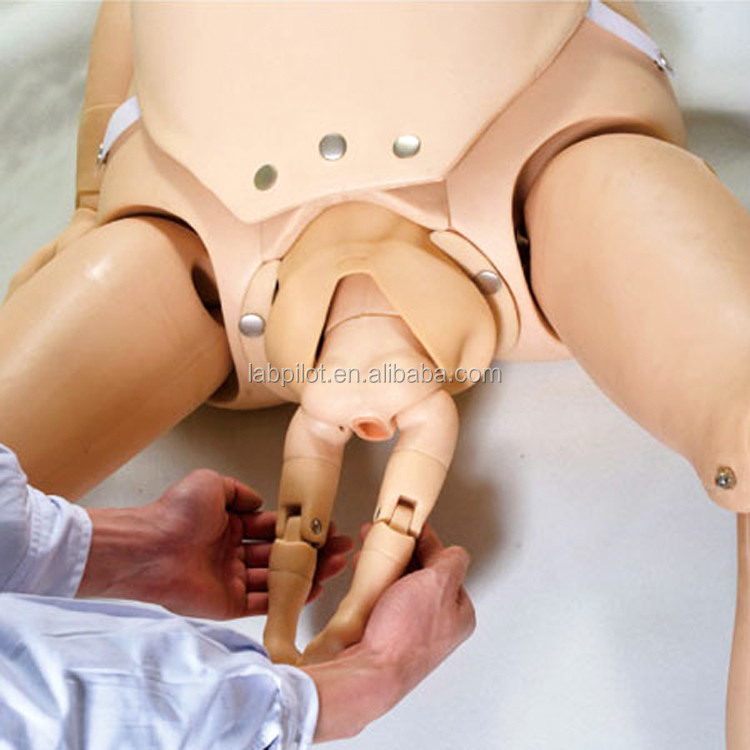

(4) Can simulate head birth, breech delivery, narrow birth canal, cord around neck, fore-lying placenta, etc;

(5) With highly simulative cervix

(6) Equipped with lifting “Soft pad” for practicing Leopold maneuver;

(7) Equipped with antepartum cervical change and birth canal change modules, which can be fitted to maternal manikin for training

Stage 1: no dilation of cervix; cervical canal does not disappear; the position relation between fetal head and ischial spine plane is -5;

Stage 2: 2 cmcervical dilation; disappear 50% of cervical canal; the position relation between fetal head and ischial spine plane is -4;

Stage 3: 4cmcervical dilation; cervical canal completely disappear; the position relation between fetal head and ischial spine place is - 3;

Stage 4: 5cmcervical dilation; cervical canal completely disappear; the position relation between fetal head and ischial spine place is 0;

Stage 5: 7cmcervical dilation; cervical canal completely disappear; the position relation between fetal head and ischial spine place is +2;

Stage 6:10cmcervical dilation; cervical canal completely disappear; the position relation between fetal head and ischial spine place is +5;

(8) Can measure fetal head descent and cervical dilation

(9) Can simulate multiple placenta position

(10) Can set venous channel in maternal arm for giving administration and nutrition

(11) Vulvar suture practice modules, including left lower, medial and right lower three incision position;

(12) Tracheal intubation training

(13) Manually simulate carotid artery pulse

Neonatal manikin features:

1) Holistic function

2) Nursing features: eye irrigation and drops, neonatal washing and bandaging;

3) Oral and nasal intubation, infant sputum suction, tracheal intubation and gastric lavage;

4) Infant umbilical cord nursing, scalp vein puncture, arm venous puncture, there is obvious feeling for venous puncture, and blood flash back indicated correct puncture;

5) Neonatal CPR

• Support multiple ventilation ways: mouth to mouth, mouth to nose, bag respirator to mouth;

• Can act artificial respiration

• Can act external compression

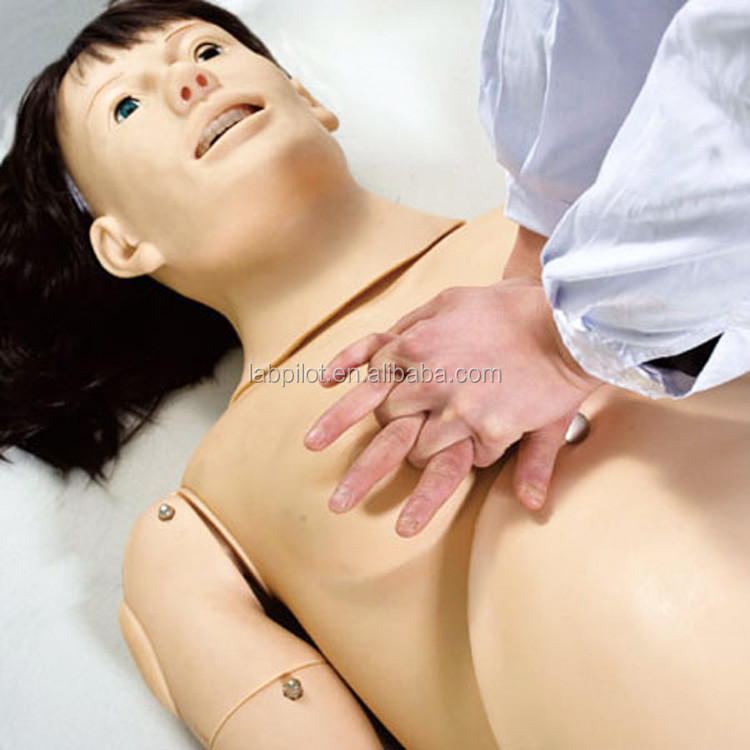

Maternal manikin CPR training:

Complying with AHA (American Heart Association) 2010 emergency guideline for CPR,

• The manikin can act artificial respiration and external compression
• electronic monitoring of operation datas with voice prompt
• can observe obvious chest rise while inflation

Electronic monitoring of inflation volume, times, frequency and compression site, frequency and depth

1) Inflation volume excessive: red bar

2) Inflation volume correct: green bar

3) Inflation volume Insufficient: yellow bar

4) Inflation into stomach:Stomach indicator turns to red

5) Compression depth excessive: red bar

6) Compression depth correct: green bar

7) Compression depth Insufficient: yellow bar

Components:

Advanced Delivery and Maternal and Neonatal Emergency Simulator (Maternal)

Neonatal simulator (for deliver use)

Neonatal Emergency and Nursing model

Automated delivery and fetal heart sound controller

Adult CPR electronic display

BP Measurement Trainer

Elasticity Cervix

Cervix examination modules 5pcs/set

Suturae perinealis model 3pcs/set

48 hours postpartum uterus

Normal placenta (1 set)

Residual placenta chipping (1set)

Neonatal airway cannual

Blood pressure Meter (with cuff)

Stethoscope
