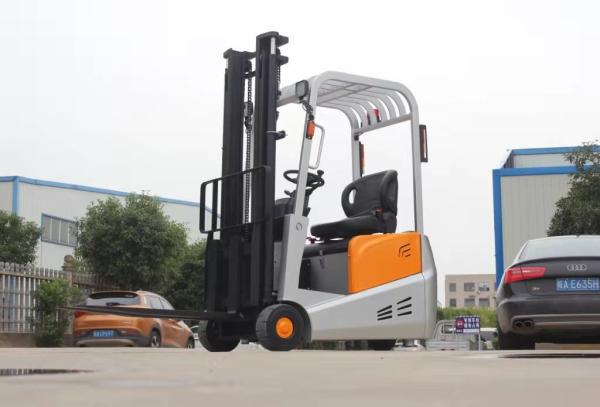

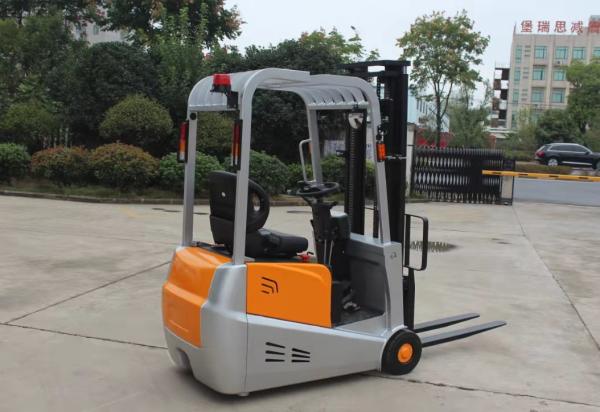

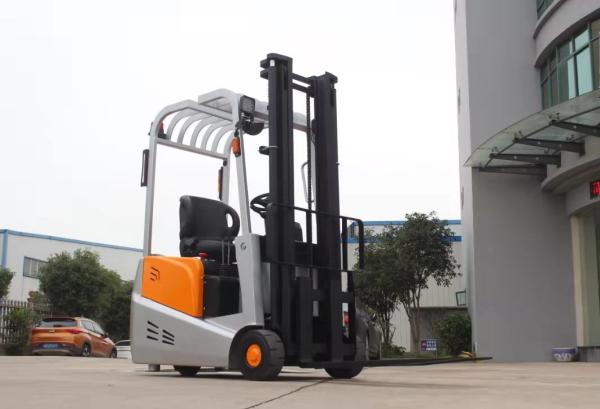

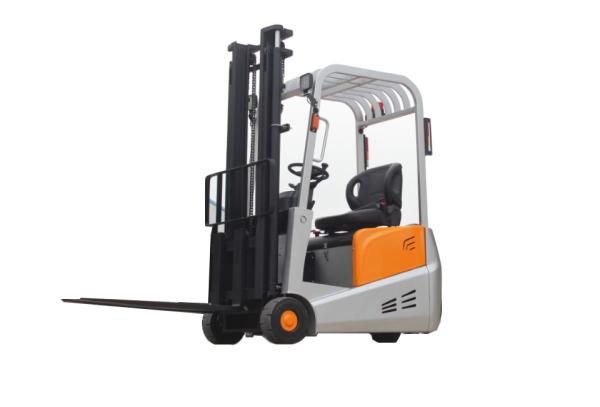

Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving
Specifications
Brand Name :
EFORK
Certification :
CE/CAS/EPA
Place of Origin :
China
MOQ :
1
Price :
us dollar 6600-7790USD
Payment Terms :
T/T, L/C
Delivery Time :
25
Power :
electric
Operation manner :
seated
Rated capacity :
1000kg/1500kg
Wheel type :
rubber/Polyurethane
Lifting height :
3000-4500mm
Weight including battery :
1700kg
Battery type :
Lead-Acid
Driving brake :
hydraulic+electromagnetic
Fork dimension :
35/100/1070mm
Description

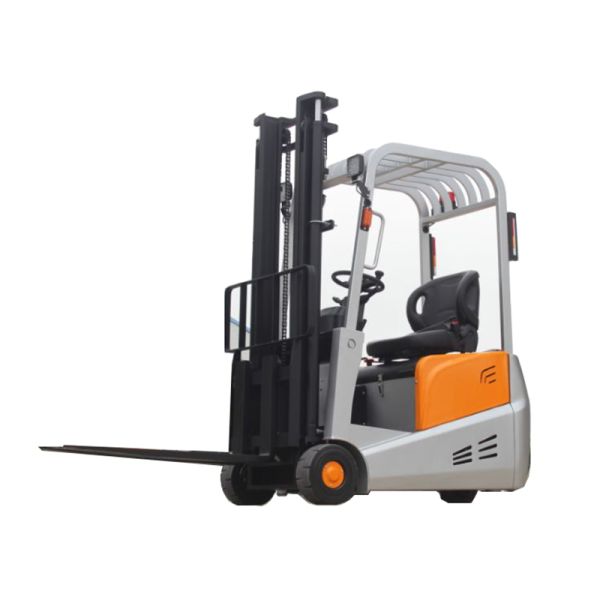

Counterbalance 3 Wheel Electric Forklift Truck 3 Wheeller

Product discription

1.1 model number CPD10A-30 CPD15A-45S
1.2 power electric electric
1.3 operation manner seated seated
1.4 rated capacity Q(Kg) 1000 1500
1.5 load center C(mm) 500 500
1.6 front overhang X(mm) 196 196
1.7 wheelbase Y(mm) 1130 1130
2.1 weight(including battery) kg 1700 2150
3.1 wheel type front/rear rubber/pu rubber/pu
3.2 front wheel ∅×w(mm) ∅230×75 ∅230×75
3.3 rear wheel ∅×w(mm) ∅305×127 ∅305×127
3.4 front wheeltread mm 752 752

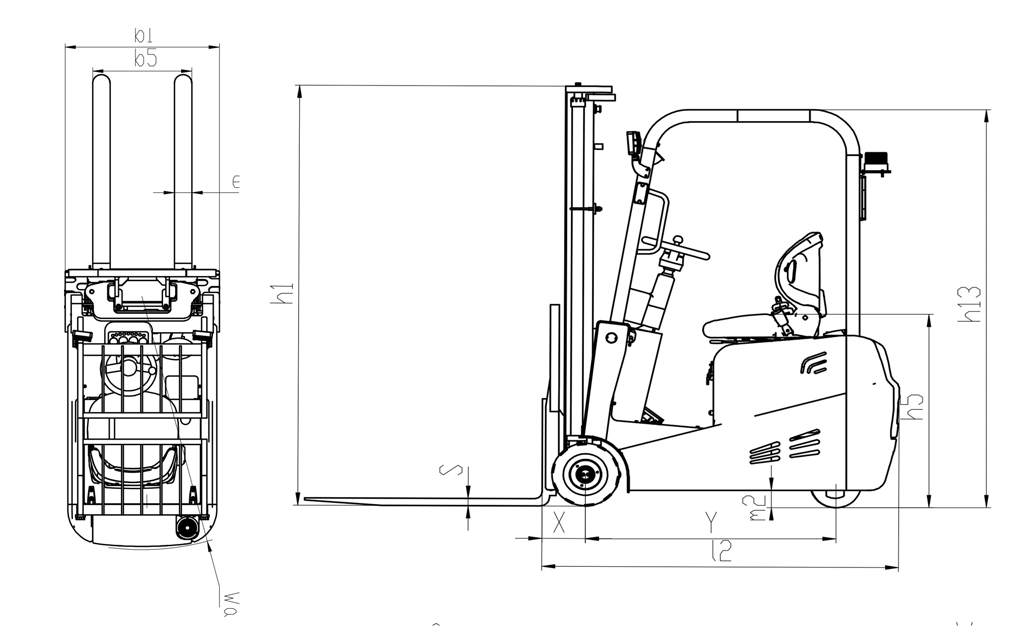

4.1 lowered mast height h1(mm) 2035 2100
4.2 free lifting height h2(mm) 0 1535
4.3 lifting height h3(mm) 3000 4500
4.4 Max. mast height h4(mm) 3918 5455
4.5 overhead guard height h13(mm) 1930 1930
4.6 lowered mast height h(mm) 35 35
4.7 overall length l2(mm) 1587 1587
4.8 overall width b1(mm) 850 850
4.9 fork dimension s/e/l(mm) 35/100/1070 35/100/1070
4.10 fork adjustment b5(mm) 210-566 210-566
4.11 ground clearance m2(mm) 35 35
4.12 stack aisle width,pallet1000×1200(1200 side across fork) Ast(mm) 2931 2931
4.13 min.turning radius Wa(mm) 1425 1425
5.1 travel speed (unload/load) km/h 5.2/5 5.2/5
5.2 lifting speed (unload/load) m/s 0.135/0.095 0.135/0.090
5.3 lowering speed (unload/load) m/s 0.085/0.120 0.085/0.120
5.4 max. gradeability(unload/load) ％ 8/6 8/6
5.5 driving brake hydraulic+electromagnetic hydraulic+electromagnetic
6.1 drive motor power kw AC 2.5 AC 2.5
6.2 lift motor power kw DC 2.2 DC 2.2
6.3 battery voltage/capacitance V/Ah 24V/270Ah 24V/300Ah
6.4 charger V/A 24V/40A 24V/40A
7.1 drive control mode AC AC

1. Curtis electric control with controller multiple automatic protection system.
2. EPS steering energy consumption is reduced by ~ 20%, operation is accurate, steering is light and flexible, driver
fatigue is reduced, and productivity is greatly improved.
3. Vertical AC drive, no carbon brush, maintenance free, efficient motor, precise control, strong power output.
4. Small volume, light weight, small transformation radius, easy access to the elevator, suitable for floor and car operation,
improve the trafficability and space utilization.
5. The front wheel is rubber solid tire, with strong grip and stable operation.
6. The gantry is designed with buffer system and forward and backward functions.
7. The temporary parking of forklift on the ramp adopts the double insurance method of electric control, automatic and foot
brake to provide the maximum safety guarantee for the vehicle parking on the ramp.

Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving

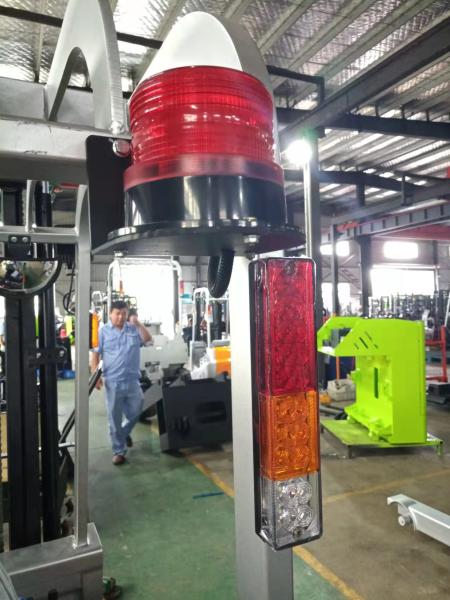

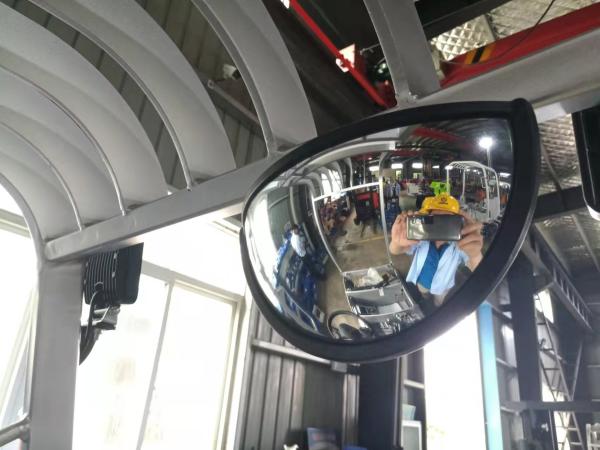

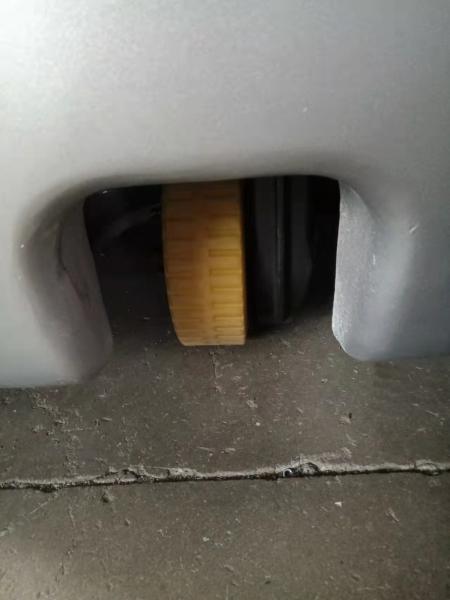

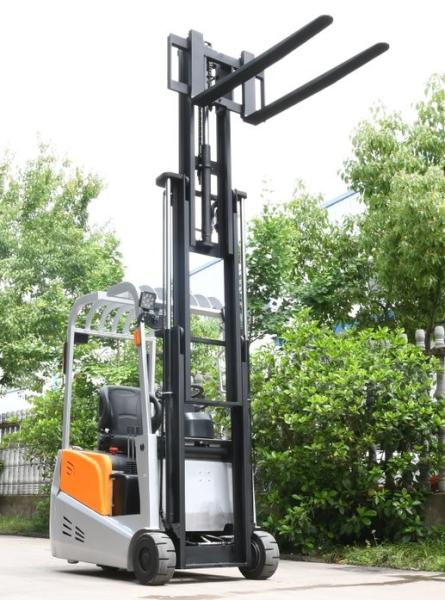

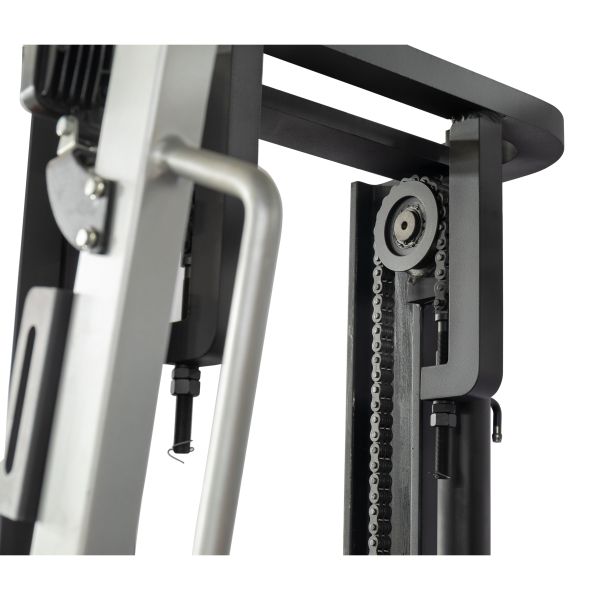

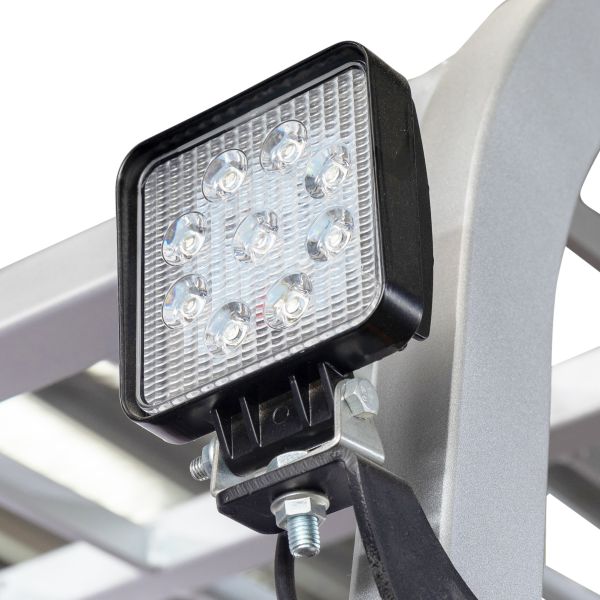

Detailed images

Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving

Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving

Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving

Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving

Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving

Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving

Counterbalance 3 Wheel Electric Forklift Truck Hydraulic Driving

Packing&delivery

Certifications

Our service

FAQ

1. How to place an order?
A:Tell us your detail requirements by email or on Trademanager or Skype:efcc3288667 ,We will send you our offer in 24 hours.

If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.

2. What's your Price Terms?
A: We offer FOB ,FCA, CIF, CFR, EXW and DDU price terms.

3. Are you Factory?
A: Yes.

4. Can you send the machine to my factory in other city to load the container?
A: Yes, please tell us the detail address, we can arrange to send your factory in time.

5. Are the forklift trucks covered by a warranty?
A: Yes. All our machines carry a full 1 year major parts warranty.

6. Can i get discounts?
A: Yes, For big order, old customer and frequent customers, we give reasonable discounts.

7. How to place an order?
A:Tell us your detail requirements(Load Capacity? Lifting height etc.) by email or on Trademanager or Skype, please send us

your purchase order,or you can ask us to send you a proforma invoice for your order.

8. How could I pay them?
A: We accept Western Union (for parts order, order value less than $2500); T/T(bank transfer,order value at least $2000); L/C

(Irrevocable LC at sight,order value at least $10000 )

9. Can you add our own logo on the products or use our designs?
A: Yes,of course you can add logo on your products! We provide OEM/ODM service.
