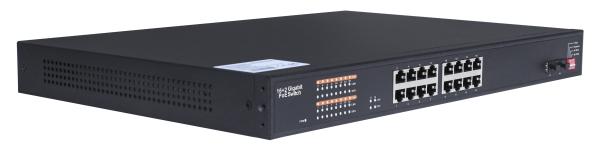

Rack Mount Power Over Ethernet Switch , Industrial PoE Ethernet Switch
Rack Mount Power Over Ethernet Switch , Industrial PoE Ethernet Switch
Rack Mount Power Over Ethernet Switch , Industrial PoE Ethernet Switch
Rack Mount Power Over Ethernet Switch , Industrial PoE Ethernet Switch
Specifications
Brand Name :
Fiberroad
Model Number :
FR-5N3216-P
Certification :
CE, FCC, Rohs
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Name :
Power Over Ethernet Switch
RJ45 Port and Speed :
16x10/100/1000Base-TX
Fiber Port and Speed :
2xGigabit SFP
Packet Buffer :
4M
Other Name :
Industrial PoE Ethernet Switch
Type :
Rack Mount
Description

Rack Mount Power Over Ethernet Switch , Industrial PoE Ethernet Switch

Power Over Ethernet Switch Features

> AI QoS: Video data first, more fluent transmission
> AI VLAN: Avoid the internet storm and enhance the network ability
> AI PoE: Automatic self checking, reboot the device while find it fake dead
> Support Auto-MDIX, and full/half duplex self-negotiation mode
> Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
> Support 10K bytes giant frame, compatible with various extension protocol
> 8K MAC address table
> Support IEEE802.3az energy efficient Ethernet technology
> Support IPv6 Protocol
> Electric 4KV surge protection

Power Over Ethernet Switch Parameters

Physical Port
RJ45 Port and Speed16x10/100/1000Base-TX
Fiber Port and Speed2xGigabit SFP
Parameters


Ethernet Standards

IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3Qad IEEE802.3ah IEEE802.1X IEEE802.1Q IEEE1588
Packet Buffer4M
Maximum Packet LengthUp to 10K
MAC Address Table8K
Transmission ModeStore and Forward (full/half duplex mode)
Exchange Property

Delay time: < 7μs

Backplane bandwidth: 56Gbps; Packet forwarding rate: 47.616Mpps

PoE
PoE Standard16x IEEE 802.3af/IEEE 802.3at PoE
Power BudgetMax. PoE output power budget 30W


Power Over Ethernet Switch Specification

Working Environment

Operating Temperature0℃~50℃
Operating Humidity5%~90% non-condensing
Storage Temperature-10℃~70℃


Warranty

MTBF500,000 hours
Defects Liability Period2 year warranty, lifetime technical support


Certification Standard



EMC

FCC Part15 Class A CE-EMC/LVD

RoHS

EN61000-4-2 (ESD), EN61000-4-3 (RS) EN61000-4-4 (EFT), EN61000-4-5 (Surge) EN61000-4-6 (CS), EN61000-4-8 EN61000-4-11

VibrationIEC60068-2-6


Power Over Ethernet Switch Application

Rack Mount Power Over Ethernet Switch , Industrial PoE Ethernet Switch
