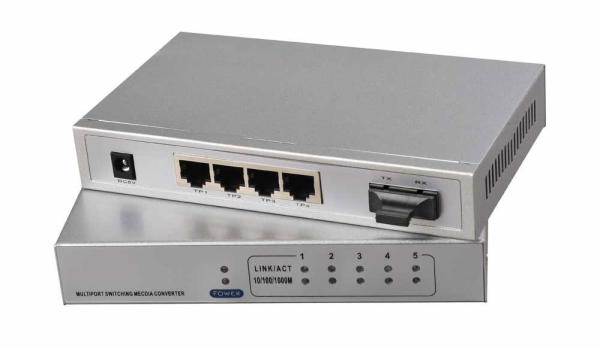

MDI / MDIX Fiber Optic Network Switch Multi mode IEEE802.3X
MDI / MDIX Fiber Optic Network Switch Multi mode IEEE802.3X
Specifications
Brand Name :
Fiberroad
Model Number :
FR-SW1GF4GT-XXXX
Certification :
CE,FCC,SGS,ISO9000
Place of Origin :
China
MOQ :
10pcs
Price :
Pls send request details
Payment Terms :
100% T/T advance, Western Union, L/C
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Product name :
Fiber Optic Switch
Mode: :
Single mode , Multi mode
Data rate: :
10/100/1000Mbps
Data Rate FX/TX: :
100 Base-SX/LX 10/100 Base-T
Flow Control: :
Full Duplex ,Half duplex
Wavelength: :
850nm/1310nm/1550nm
Description
MDI / MDIX Fiber Optic Network Switch Multi mode IEEE802.3X

This Fast Ethernet Optical Fiber Switch has one 1000M Fx port and four 10/100/1000M UTP ports. Customer can choose different Fx specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.

Key Features:

•Support 4 port 10/100/1000Mbps RJ45 ports and 1port 1000Mbps Fiber port.
•Supports sanderds: IEEE 802.3z/AB 10/1001000Base-T and 1000Base-SX/LX/ZX
•Supports flow control and broadcast storm protection. •Supports Store-and-Forward working mode,
•Supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
•Supports auto-sensation of MDI/MDIX
•Low power consume (3.5Watts max), low heat, and good reliability.
•Choice of fiber-connector from SC,FC,ST, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX SFP
.

Specifications:

Operating standards :

IEEE802.3,IEEE802.3U,IEEE802.3Z , IEEE802.3X,

Wavelength

850nm/1310nm/1550nm

Distance

Dual Fiber MM : 550m

Dual Fiber SM : 10/20/40 / 60km

Single Fiber SM : 20/ 40km

MAC address table:

4K

Frame buffer memory

1Mbit

Flow control

Full Duplex: IEEE802.3x flow control

LED

PWR , FX LINK/ACT,TP LINK/ACT(1port -4port)

FX 1000M ,TP 1000M (1port -4port)

Input Voltage Range

DC 9-12V

Power Consumption

3.5Watts Maximum

Ambient Temperature

0 ～ + 40 ℃

Storage Temperature

-20 ～ + 70 ℃；

Humidity

5% ～ 90% ；

Dimensions

158mm * 95mm * 27mm


Ordering information :

P/N

Description

-

X

X

X

X

FR-SW1GF4GT-XXXX

4-Port 10/100/1000Base-Tx and 1-Port 1000Base-Fx Fiber Switch

S: Duplex Single-mode

M: Duplex Multi-mode

B: Simplex Single-mode

SFP: SFP Slot

3: TX 1310nm

4: TX 1490nm

5: TX 1550nm

8: TX 850nm

S: SC

F: FC

T: ST

L: LC

05: 550M

2: 2KM

20: 20KM

40: 40KM
