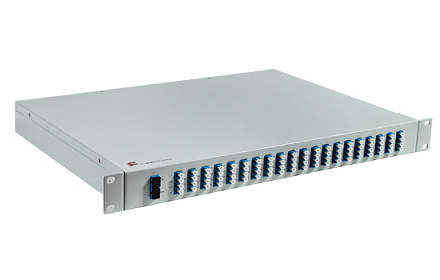

100GHZ Fiber Optic Mux Demux With thermal arrayed waveguide grating module
100GHZ Fiber Optic Mux Demux With thermal arrayed waveguide grating module
100GHZ Fiber Optic Mux Demux With thermal arrayed waveguide grating module
100GHZ Fiber Optic Mux Demux With thermal arrayed waveguide grating module
Specifications
Brand Name :
Fiberroad
Model Number :
FRD-AWG80
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
1PCS
Price :
Pls send request details
Payment Terms :
100% t/t in advance, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Link :
40Ch
Power Consumption :
≤25W
Package Dimension (mm) :
440(W)× 44(H)×340(D)
Description

100GHZ Fiber Optic Mux Demux With thermal arrayed waveguide grating module

Quick Details:

This component is designed for use within the C -band release of DWDM system. AWG device uses thermal-type thermal arrayed waveguide grating module with a unique package design is based on a silicon substrate planar waveguide optical path (PLC) grating technology, the key modules, reduce power consumption, the Ad Hoc Working Group kit, use reliable thermal plastic , low thermal conductivity and precise working temperature control, accurate channel coupling, low insertion loss, high channel isolation and high stability.

Product Features

  • Channel spacing 100GHZ (0.8 nm) up to 48 channels can be multiplexed;
  • Low insertion loss, insertion loss ≤5dB, typically 4.5dB
  • High channel isolation, adjacent isolation ≥25dB; non-adjacent isolation ≥35dB
  • High stability, dual hot-swappable power supply, 1 +1 protection;
  • Perfect indicator status;

Performance Parameters

Parameters Min Typ Max Units
Number of Channels 40
Number Channel Spacing 100 GHz
Cha. Center Wavelength C -band nm
Clear Channel Passband ±0.1 nm
Wavelength Stability ±0.05 nm
-1 dB Channel Bandwidth 0.4 nm
-3 dB Channel Bandwidth 0.6 nm
Optical Insertion Loss at ITU grid 4.5 6.0 dB
Adjacent Channel Isolation Demux 25 dB
Mux 18
Non-Adjacent,Channel Isolation Demux 32 dB
Mux 26
Insertion Loss Uniformity 1.5 dB
Directivity(Mux Only) 40 dB
Insertion Loss Ripple 0.5 dB
Optical Return loss 40 dB
PDL/Polarization Dependent Loss in Clear Channel Band 0.3 0.5 dB
Polarization Mode Dispersion 0.5 ps
Maximum Optical Power 24 dBm
Environment Operating Temperature -5℃~+75℃
Storage Temperature -40℃~85℃
Relative humidity 5% ~ 95% Non-condensing
Power supply 180V~240V/AC,-36V~-72V/DC
Safety and EMC compliance with FCC, UL, CE, TUV, CSA
Power Consumption ≤25W
Package Dimension (mm) 440(W)× 44(H)×340(D)
100GHZ Fiber Optic Mux Demux With thermal arrayed waveguide grating module
100GHZ Fiber Optic Mux Demux With thermal arrayed waveguide grating module
