125M~2.5G OEO Fiber Management Converter Card SFP To SFP Support 2U Rack
125M~2.5G OEO Fiber Management Converter Card SFP To SFP Support 2U Rack
Specifications
Brand Name :
Fiberroad
Model Number :
FR-6201
Certification :
CE FCC RoHS
Place of Origin :
China
MOQ :
1PC
Price :
Pls send request details
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Interface :
SFP to SFP
MTBF :
65,000 hours
Operate Temp. :
0~50℃
Power :
DC5V, 0.5A
Description

125M~2.5G OEO Fiber Management Converter Card SFP to SFP

Standalone 125M~2.5G OEO Converter with SFP Slot to SFP Slot, which uses optical-electricity-optical conversion principle to realize optical signal regeneration, enabling of the optical signal amplification and regeneration, re-timing and wavelength conversion, with coarse/dense wavelength division multiplexing together to realized WDM transmission. It is now possible to quickly improve communication capacity, expand the bandwidth on present network, while using low-cost, high cost-effective solutions to manage and run the system, easy operation.

Fiber Management Converter Features

- Support 2U Rack (16 Slots) and independent use
- Support network management (Web SNMP, Console)
- Support in-band management
- Support ITUT prescribed DWDM/CWDM wavelength

- Transmission rate:125Mbps~2.5Gbps
- Support Jumbo Frame
- Transparent Transport and very low delay
- Support DMI function for SFP fiber module
- Support hot plugging
- Full State Led display
- Easy installation

Fiber Management Converter Specification

Transmission Distance

SFP: Distance depend on plug-in Fiber Tranceiver
Interface Type SFP to SFP
Forwarding Frame Length No frame size limitations
Protocol Transparent Ethernet: 10Gig LAN, 10Gig Wan, 1Gig LAN
Fiber Channel: 10, 8, 4, 2, 1Gig
SONET/SDN OC-192, OC-48
Power Requirement Operating Voltage DC 5V
Rated Current: 0.5A
Power Consumption: Full-load<15W
Environmental
Requirement		 Operating Temperature: 0℃~50℃
Storage Temperature : -10℃~ 70℃
Relative Humidity: 5%~95%
MTBF: 65,000 hours
Enclosure: Metal
Dimensions 120mm(H)×90mm(D)× 22mm(W)
Weight 150g
Warranty 1 Year
Emissions FCC Class A, CE Class A

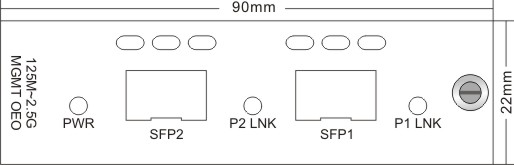

Fiber Management Converter Dimensions

125M~2.5G OEO Fiber Management Converter Card SFP To SFP Support 2U Rack

Order Information

Model Number Port Description
FR-6201 125M~2.5G OEO Converter Card, SFP to SFP
FR-6201R 125M~2.5G OEO Converter Remote Standalone, SFP to SFP
