10G Manageable Media Converter Card SFP to RJ45 Frame Length 18000Bytes with 3R Repeater
10G Manageable Media Converter Card SFP to RJ45 Frame Length 18000Bytes with 3R Repeater
Specifications
Brand Name :
Fiberroad
Model Number :
FR-6601-SFP
Certification :
CE FCC RoHS
Place of Origin :
China
MOQ :
1PC
Price :
Pls send request details
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Port :
10G Base-T, 10G Base-X
Frame Length :
18000Bytes
Forwarding Mode :
Store-and-forward
Wavelength :
DWDM/CWDM
Operate Temp. :
0℃~50℃
MTBF :
56000Hours
Description

10G Optical Menagement Media Converter Card SFP to RJ45 3R Repeapter

This product is a high-performance 10G optical media converter card, using Optical-Electrical-Electrical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

10G Manageable Media Converter Card SFP to RJ45 Frame Length 18000Bytes with 3R Repeater10G Manageable Media Converter Card SFP to RJ45 Frame Length 18000Bytes with 3R Repeater

Features

- Support Jumbo Frame
- Transparent Transport and very low delay
- Support ITUT prescribed DWDM/CWDM wavelength
- Support Loopback test function
- Support hot plugging
- Full State Led display
- Easy installation

Specification

Transmission Distance

Q5M(CAT7)
SFP/XFP
Forwarding Mode Store-and-forward
Forwarding Frame Length 18000Bytes
Power Requirement Operating Voltage DC 5V
Rated Current: 1A
Power Consumption: Full-load<12W
Environmental Requirement Operating Temperature: 0℃~50℃
Storage Temperature : -10℃~ 70℃
Relative Humidity: 5%~95%
MTBF: 56,000 h
Enclosure: Metal
Dimensions 120mm(H)×90mm(D)× 22mm(W)
Weight 150g

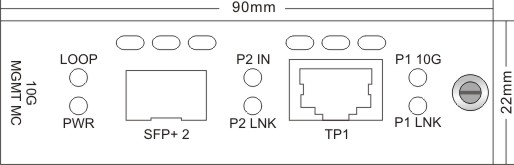

Dimensions

10G Manageable Media Converter Card SFP to RJ45 Frame Length 18000Bytes with 3R Repeater

Order Information

Model Number Port Description
FR-6601-SFP 10G Media Converter Card, SFP to RJ45
FR-6601-XFP 10G Media Converter Card, XFP to RJ45
