Product Description

M-K2 is a portable color Doppler ultrasound with stable image performance and diverse applications.High resolution image quality,professional measurement software packages: OBSTETRIC, GYNECOLOGICAL, UROLOGY, SMALL ORGAN which make it applicable to different body scans and clinic departments, for example emergency, hospitals, clinics, out calls, etc. With this machine, we are capable to provide very comprehensive imaging system solutions. The most important is that this model can be updated to 4D function.

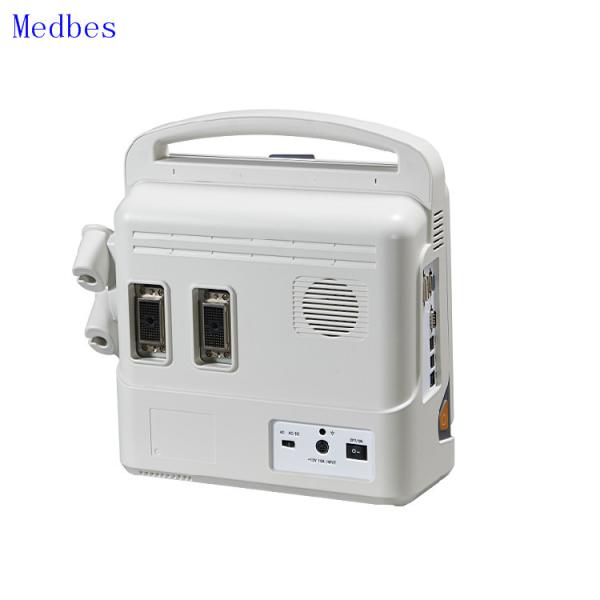

Smart, compact and clamshell design.

12 inch LED monitor
Backlit operation panel, 8TGC
Floating keyboard
Two active probe connectors
Two probe holders

What is the specification of our echo machine?

Transducer Types
Electronic convex probe
Electronic linear probe
Electronic micro convex probe
Electronic transvaginal probe
Electronic phased array probe
4D volume probe

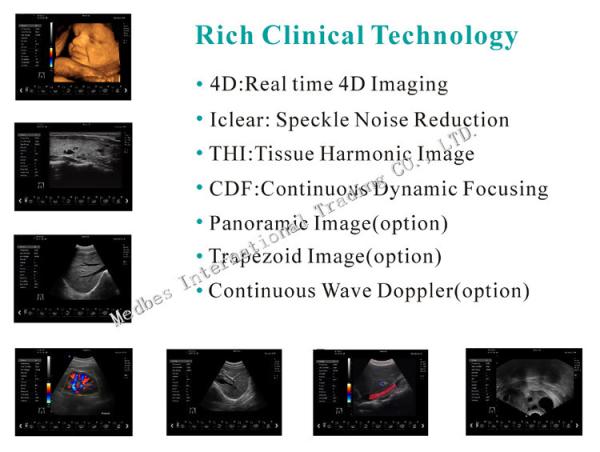

Function
Auto Image Optimization
Tissue Harmonic imaging
iClear (Speckle Noise Reduction)
iBeam (Spatial Compound Image)
iZoom
PIHI (Pulse-Inverse Harmonics Imaging)
SA (Synthetic Aperture Synthesis)
Panoramic Image (Option)
Trapezoid Image (Option)
Continuous Wave Doppler(Option)

Display mode
B, B|B,4B, B|M,M,B|D,PW,B|PW,CW,CF
Triplex mode
4D mode

Zoom
Real time zooming
10 Steps: ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0, ×10.0
Selectable zooming position

Focus
Continuous dynamic focus
1~16 selectable transmit focus
Acoustic lens focus
1, 2, 3, 4 focus

Memory
Cine memory
B mode
M mode
SSD (Solid State Disk) 64G

Connectivity
Video out port
DVI out port
VGA out port
2 USB port
DICOM 3.0

Dimension
Gross dimension:510 mm X 500 mm X 330mm
Net dimension:330mm X 150 mm X 380mm

Weight
Gross weight:12 kg
Net weight:7 kg

Power Requirements
Voltage: AC 100V to 240V±10%
Frequency: 50Hz±1Hz
Rated Power: 250VA

Operation Conditions
Ambient temperature: 0℃to +40℃
Relative humidity: 38% to 85%
Atmospheric Pressure: 700hPa to 1060hPa

Standard Accessories
Power Cable
Operation Manual
Fuse
System Recovery USB
Built in Li-ion battery

Optional Accessories
B/W or color Video printer
LaserJet or inkjet printer
Trolley
Aluminum case
Biopsy guide
