Vulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mm
Vulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mm
Vulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mm
Vulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mm
Vulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mm
Vulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mm
Vulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mm
Vulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mm
Specifications
Brand Name :
YUE MI
Model Number :
IMC
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
10/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500/Set/Month
Delivery Time :
20 word days
Packaging Details :
Details Carton
Trademark :
IMC Mechanical Seal
Item :
IMC
Seat :
Ceramic, Sic, Tc
Rotary Ring :
Carbon, Silicon Carbide,
Oem :
supper
Keywords :
water pump seal
Secondary Sealing :
Fkm EPDM
Temperature Range :
-20°C to 120°C
Bore Size :
25 mm 35mm
Operating Temperature :
-20～35℃
Product :
Customizable OEM water pump seal
Description

Vulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mmVulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mmVulcan Mechanical Seals Type 86 For Gr Water Pump IMC-25mm 35mm

DIAGRAM

SHAFT SIZE

DØ

 SIZE CODE TYPE CODE

D1

(mm)

D2

(ww)

L1

(ww)

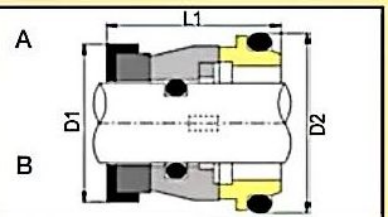

A 16.00 0160 86B 28.00 35.00 30.00
B 16.00 0160 86 28.00 35.00 30.00

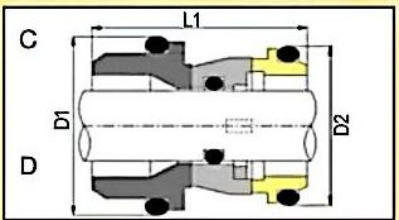

C 24.00 0240 86 48.00 45.00 50.00
D 24.00 0300 86 48.00 45.00 50.00

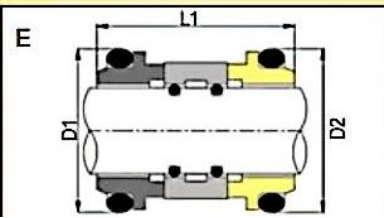

E 38.00 0380 86 53.00 56.00 65.50

Vulcan manufacture and stock 'O'-Ring Mounted Double Seals with varying face profiles,specifically designed for e oo:R fh,"SE-" and "SV-"Series Submersible Pumps. Each size has a unique face profile,Particularly relating to the central Rotary face. Inboard Seal and Stationary faces are Monolithic Silicon Carbide,whilst the oil-bath side Stationary is Monolithic Carbon.

Product Description

Type Name mechanical seals type 86 for GR water pump
Size 25mm,30mm
Material Combination Face: SiC, TC
Seat: SiC, TC
O-ring: NBR, EPDM, VIT, Aflas, FEP, Kalrez, Chemraz etc.
Spring: SS304, SS316
Metal Parts: SS316, hastelloy C, AM350
