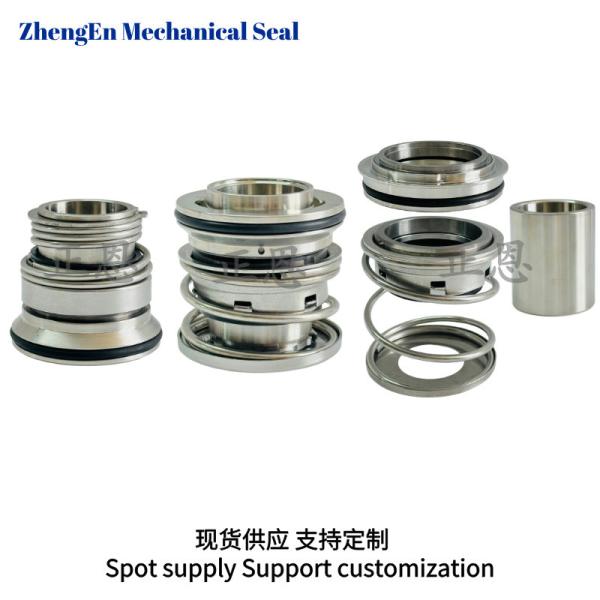

Gorman Rupp Pump Type Grease Seal Double Face Mechanical Seal
Gorman Rupp Pump Type Grease Seal Double Face Mechanical Seal
Gorman Rupp Pump Type Grease Seal Double Face Mechanical Seal
Gorman Rupp Pump Type Grease Seal Double Face Mechanical Seal
Gorman Rupp Pump Type Grease Seal Double Face Mechanical Seal
Gorman Rupp Pump Type Grease Seal Double Face Mechanical Seal
Gorman Rupp Pump Type Grease Seal Double Face Mechanical Seal
Gorman Rupp Pump Type Grease Seal Double Face Mechanical Seal
Specifications
Brand Name :
YUE MI
Model Number :
gorman
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
30/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Working Temperature :
-20℃~180℃
Certifiion :
ISO, DIN
Product :
Customizable OEM water pump seal
Balance :
Unbalanced
Standard Or Nonstand :
Standard
Export Area :
All over the world
Flygt Pump Seal :
gorman Pump Seal
Fluid Compatibility :
Water, Oil, Mild Chemicals
Mounting Type :
Direct Replacement
Seat :
Ceramic, Sic, Tc
Description

Product Description

Parameter Specification
Model Number Gorman Rupp
Type Cartridge Seal / Balanced Design
Material Options
- Primary Sealing Face Silicon Carbide (SiC) / Tungsten Carbide (WC)
- Secondary Seals Ethylene Propylene (EPDM), Hydrogenated Nitrile (HNBR)
- Metal Components Stainless Steel (SS316), Hardened Steel
Operating Limits
- Pressure Range 0-1.5 MPa (217 psi)
- Temperature Range -30°C to +200°C (-22°F to +392°F)
- Max. Speed 25 m/s (≈82 ft/s)
Shaft Diameter 15-150 mm (0.6-6 in) [Adjustable]
Fluid Compatibility Water, Sewage, Oils, Slurries, Mild Chemicals
Standards ISO 9001, ANSI/API 682 (Type A/B Optional)
Applications Wastewater Pumps, Industrial Pumps, Agitators

Description:
Pressure: 1.2 MPa or less
Temperature: - 30 ~ 210 ºC
Linear Speed: 18 m/s or less
Structure: Single End

Pressure: High Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: High Temperature Mechanical Seal
Performance: High Pressure
Standard: Specifically Designed
Model NO.: Gorman Rupp Model T3/T4/T6 Model T8 Model T10
Balance: Balanced
Specification: Inner Diameter: 1.25 inch , 1.5 inch , 1.875 inch , 2.25 inch , 2.75 inch
Material:
Rotary Ring Face: SiC/TC
Stationary Ring Face: SiC/TC
Elastomers: Viton/EPDM/FFKM
Springs: SS304/SS316
Metal Parts: SS304/SS316

These are replacement mechanical seals for Gorman-Rupp Pumps S range of Submersible Gorman-Rupp Pumps, and T range of self Priming Gorman-Rupp Pumps.
Structural Features: single end, single spring, balanced, independent direction of rotation.
Industrial Standards: Customized
Scopes of Application: mainly used in Gorman-Rupp Pumps S range of Submersible Gorman-Rupp Pumps, and T range of self Priming Gorman-Rupp Pumps

Our Advantages

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Guangzhou City, GuangDongProvince,China.
Our city has a large port and an airport, so its transportation is very convenient.
