Specifications
Brand Name :
YUE MI
Model Number :
G3
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Style :
mechanical seal for sanitary pump
Spring Material :
Stainless Steel
Traemark :
YUEMI
Secondary Seal :
NBR, EPDM, VIT
Shaft Diameter :
12mm,16mm
Face Material :
Silicon Carbide
Seal Face :
Carbon vs Ceramic
Transport Package :
as Requirement
Rotary Ring :
Carbon, Silicon Carbide, Tc
Standard Or Nonstandard :
standard
Description
G3 Mechanical Seal BQQE Pump Seal for GRUNDFOS Pumps
Short cartridge mechanical seal designed as replacement for Grundfos pumps, compatible with Type B Latty GS4 Lidering GR-B models.
Operating Specifications
Temperature Range: -30°C to +200°C
Maximum Pressure: ≤1.2 MPa
Maximum Speed: ≤10 m/s
Material Composition
  • Rotary Ring: Carbon or Silicon Carbide (SiC)
  • Stationary Ring: Silicon Carbide (SiC) or Tungsten Carbide (TC)
  • Secondary Seal: EPDM or VITON
  • Spring & Other Parts: SUS304 or SUS316 Stainless Steel
Compatible Pump Series
CH, CHI, CHE, CRK, SPK, TP, AP, CR, CRN, NK, TP, LM(D)/LP(D), NM/NP, DNM Series Pumps
Technical Specifications
Parameter Specification
Seal Type BQQE series
Shaft Size Full size (12-16mm)
Temperature Range -30°C to 200°C
Pressure Limit ≤1.2 MPa
Speed Limit Up to 10 m/min
Face Materials SiC, TC, Carbon
Seat Materials Carbon, SiC, TC, Ceramic
Elastomer Options NBR, EPDM, VITON
Spring Materials SS304, SS316
Metal Parts SS304, SS316
G3 Mechanical Seal Bqqe Pump Seal Glf Below Rubber Seals For GRUNDFOS-PUMP

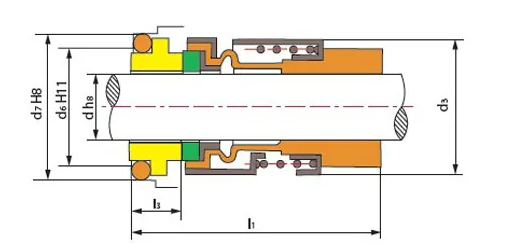

Seal Dimensions
d (mm) d3 d6 d7 l1 l3
12 22 19 23 39.0 7.6
12A 22 19 23 34.0 7.6
15 26 23 27 39.0 8.7
16 26 23 27 39.0 8.7
Customization Options
Our G3 mechanical seal supports various material combinations including SIC/SIC/NBR/VITON/SS304, TC/TC/NBR/SS304, and TC/TC/VITON/SS316. We can customize designs according to customer requirements or develop new mechanical seal types to meet specific application needs.
Application Fields
Grundfos seals suitable for use in various industrial applications and pumping systems.
