Modifiable Air Suspension Seats Mechanical 360 Rotation Air Ride Seats
Modifiable Air Suspension Seats Mechanical 360 Rotation Air Ride Seats
Specifications
Brand Name :
Botai
Model Number :
A800-23
Certification :
ISO9001
Place of Origin :
Shaanxi China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
100Sets Per Week
Delivery Time :
10-15days
Packaging Details :
6-8 Cartons Packed To A pallet
Name :
Air Suspension Seats Modifiable Vehicle Seat With 360° Rotation Safety Belt
Material :
PU/ Leather/Fabric
Size :
570*570*1180mm
Color :
Black
Product Model :
A800-23
Cushion Size :
480*470*400mm
Description

Air Suspension Seats Modifiable Vehicle Seat With 360° Rotation Safety Belt

Product Name
Air Suspension Seats Modifiable Vehicle Seat With 360° Rotation Safety Belt
Place of Origin
Shaanxi China
Product Model
A800-23
Product Material
PU/ Leather/Fabric
Product Color
Black
Backrest Size
480*630mm
Cushion Size
480*470*410-470mm
Adjustable Backrest Elevation
40-170°

High-low Adjustment
60mm
Horizontal adjustment
Front105mm, Rear 120mm
MOQ
1 Set

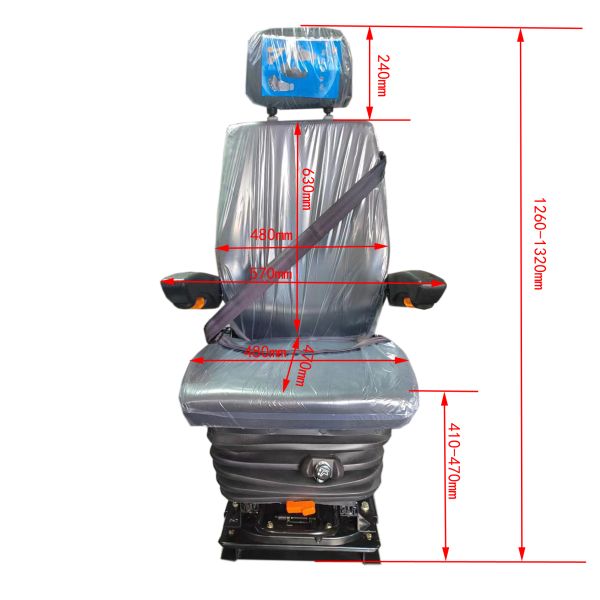

Air Suspension Seats Modifiable Vehicle Seat Size:

Modifiable Air Suspension Seats Mechanical 360 Rotation Air Ride Seats

Air Suspension Seats Modifiable Vehicle Seat Customizable:

1: Seat surface can be choose: PU leather, Fabric, Leather Etc.,

2: Fabric color and style Can be customized.

3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front

and rear horizontal adjustment rail, height adjustment , ventilation or heating function, etc., the

price according to the option.

4: The general hole distance is commonly used: 216/240/260mm * 280/295.5mm before and after ,

or customized .

5: Seat adjustment function plastic handle position can be choose : left, right,or front

6: Mechanical weight adjustment position can be selected: left, right,or front

7.Backrest size can be choose 530/630mm

Features

The seat is suitable for mine trucks and port terminal heavy trucks , the seat uses air pump

suspension shock absorption function, power supply: 24V, pump power greater than 55

KW, current less than or equal to 5A, air pressure: 0~0.8Mpa.
