Mechanical Suspension Truck Seats M801 Wheel Loader Seats Black
Mechanical Suspension Truck Seats M801 Wheel Loader Seats Black
Specifications
Brand Name :
Botai
Model Number :
M801-86
Certification :
ISO9001
Place of Origin :
Shaanxi China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
100Sets Per Week
Delivery Time :
10-15days
Packaging Details :
6-8 Cartons Packed To A pallet
Name :
Mechanical Suspension Seat For Truck Seat Loader Seat With Backrest Adjustment
Bottom connecting hole spacing :
Front and rear 295.5mm* Left and right 216mm
Backrest Size :
480*530mm
Headrest adjustment :
3 levers adjustable, 25mm per lever
Product Model :
M801-86
Horizontal Adjustment :
Front 105mm Rear 120mm
Description

Mechanical Suspension Seat For Truck Seat Loader Seat With Backrest

Adjustment Details

Product Name
Mechanical Suspension Seat For Truck Seat Loader seat With Backrest Adjustment
Place of Origin
Shaanxi China
Product Model
M801-86
Product Size
570*570*1040-1100mm
Product Material
PU
Product Color
Black
Backrest size
480*530mm
Cushion size
480*470 *310-370mm
Adjustable Backrest Elevation
40-170°
Horizontal adjustment
Front105mm, Rear120mm
Bottom Connecting Hole Spacing Custormized
Weight Adjustment
40-130 kg
MOQ
1 Set

Mechanical Suspension Seat For Truck Seat Loader Seat With Backrest Adj

ustment Customozied Items

1: Seat surface can be choose: PU leather, Fabric, Leather Etc.,

2: Fabric color and style Can be customized.

3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front

and rear horizontal adjustment rail, height adjustment , ventilation or heating function, etc., the

price according to the option.

4: The general hole distance is commonly used: 216/240/260mm * 280/295.5mm before and after ,

or customized .

5: Seat adjustment function plastic handle position can be choose : left, right,or front

6: Mechanical weight adjustment position can be selected: left, right,or front

7.Backrest size can be choose 530/630mm

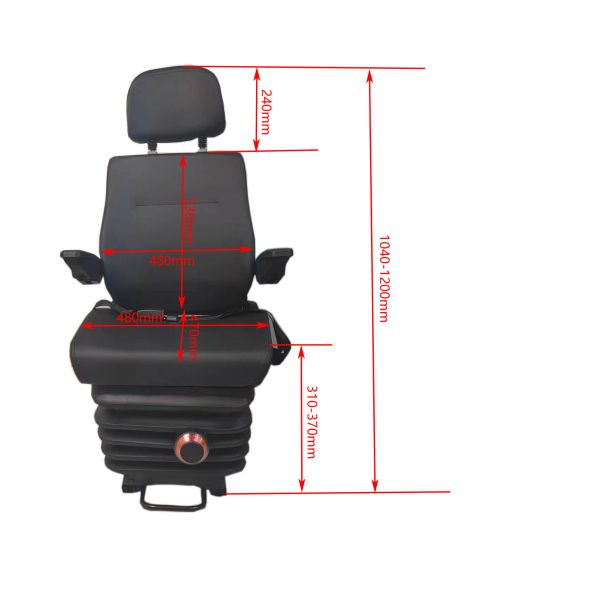

Mechanical Suspension Seat For Truck Seat Loader Seat With Backrest

Adjustment Size Show

Mechanical Suspension Truck Seats M801 Wheel Loader Seats Black
