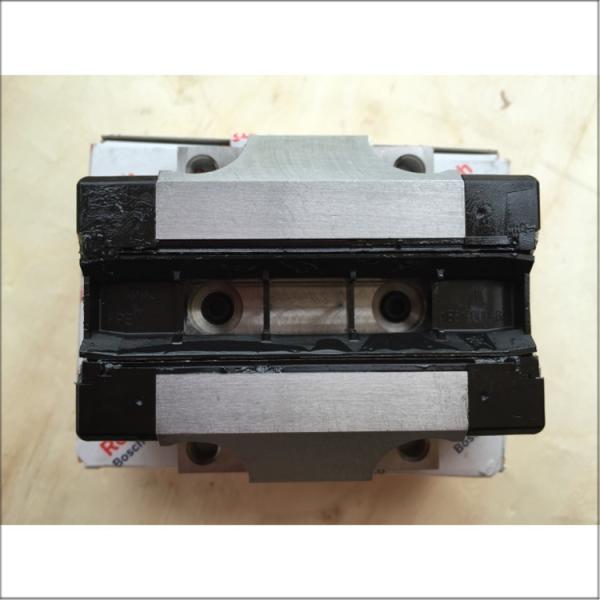

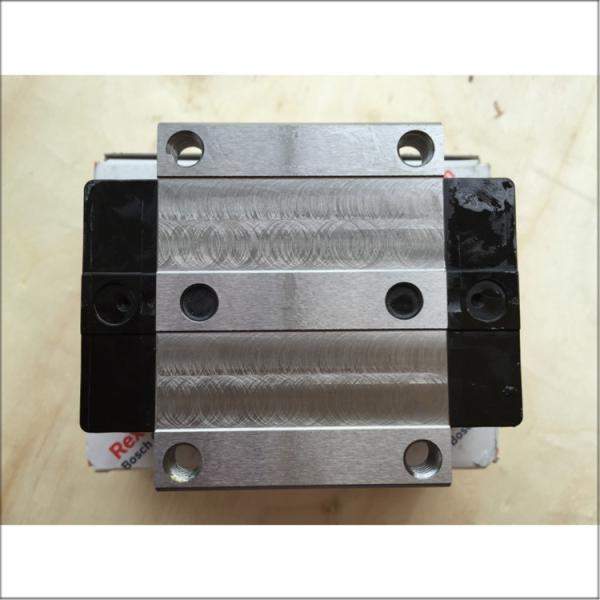

Product Overview

Technical Specifications

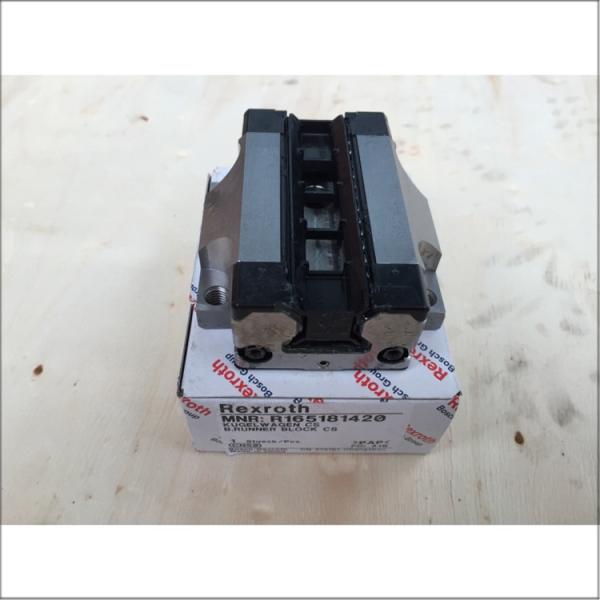

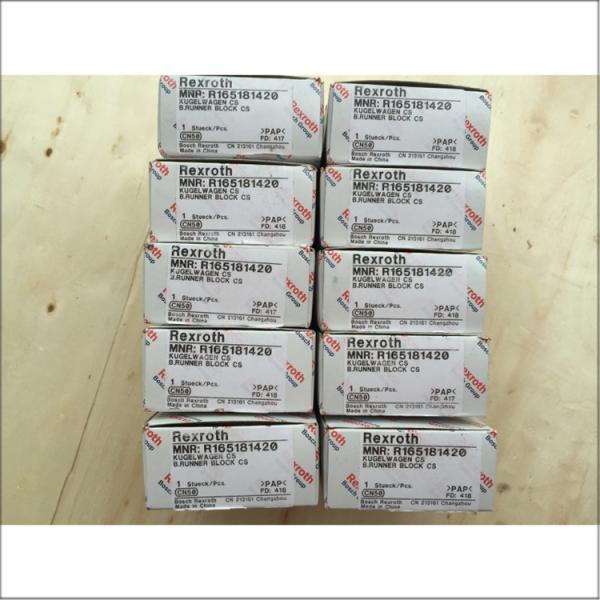

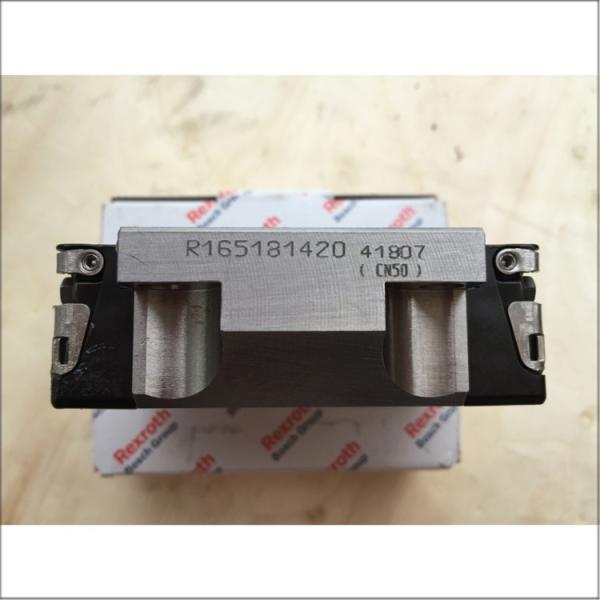

• Material Number: R165181420
• Size: 20 mm
• Design: FNS (flange width, normal length, standard height)
• Material: Carbon steel (CS)
• Preload Class: C1 (low preload)
• Accuracy Class: N (standard)
• Ball Chain: Without ball chain
• Weight: 0.45 kg
• Dimensions:
  • Overall Length: 75.0 mm
  • Height with Rail: 25.35 mm
• Sealing: SS - Standard seal
• Lubrication: Pre-lubricated with Dynalub 510 grease
• Load Capacity:
  • Dynamic Load Capacity (C): 29800 N
  • Static Load Capacity (C0): 29800 N
• Temperature Range: -10°C to +80°C
• Friction Coefficient (μ): 0.002 to 0.003
• Interchangeability: Can be used on all SNS/SNO ball guide rails

Features

• High Rigidity: Ensures stability and precision in demanding applications.
• Low Preload: Reduces friction and improves efficiency.
• Standard Accuracy: Provides reliable performance for general industrial use.
• Robust Design: Made from carbon steel for durability.
• Long-Term Lubrication: Pre-lubricated at the factory, allowing for long-term use without frequent maintenance.
• Versatile Compatibility: Can be used on all SNS/SNO ball guide rails.

Applications

• CNC Machines: Ensures precise tool positioning and movement.
• Automation Systems: Provides smooth and accurate linear motion for automated processes.
• Robotics: Facilitates precise movements in robotic arms and platforms.
• Material Handling Equipment: Enhances the efficiency of systems requiring precise linear motion for transporting goods.

Supplier Information

• BuyRexroth: Provides detailed product information and support.
• Acorn Industrial Services: Offers the product with detailed specifications.
• Livingston & Haven Express Store: Ships worldwide with fast delivery options.
