Product Overview

Technical Specifications

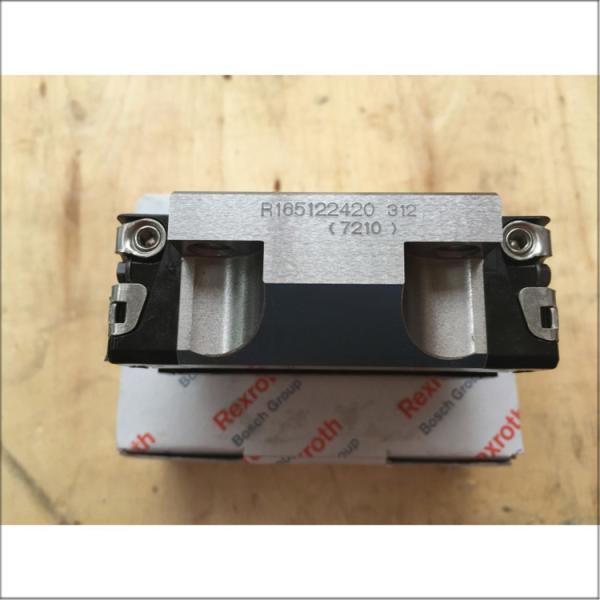

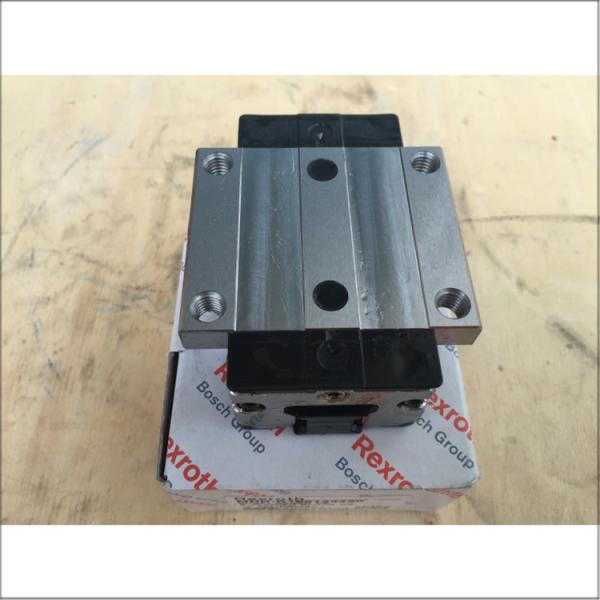

• Material Number: R165122420
• Size: 25
• Design: FNS (flange width, normal length, standard height)
• Material: Carbon steel (CS)
• Preload Class: C2 (average preload)
• Accuracy Class: N (standard)
• Ball Chain: Without ball chain
• Weight: 0.6680 kg
• Sealing: SS - Standard seal
• Load Capacity:
  • Dynamic Load Capacity (C): 28600 N
  • Static Load Capacity (C0): 35900 N
• Dimensions:
  • Width (A): 70 mm
  • Height with Rail (H): 36 mm
  • Length (B): 86.2 mm
• Temperature Range: -10°C to +100°C
• Lubrication: Pre-lubricated with Dynalub 510 grease

Features

• High Rigidity: Ensures stability and precision in demanding applications.
• Average Preload: Reduces friction and improves efficiency.
• Standard Accuracy: Provides reliable performance for general industrial use.
• Long-Term Lubrication: Pre-lubricated at the factory, allowing for long-term use without frequent maintenance.
• Versatile Compatibility: Can be used on all SNS/SNO ball guide rails.

Applications

• CNC Machines: Ensures precise tool positioning and movement.
• Automation Systems: Provides smooth and accurate linear motion for automated processes.
• Robotics: Facilitates precise movements in robotic arms and platforms.
• Material Handling Equipment: Enhances the efficiency of systems requiring precise linear motion for transporting goods.

Supplier Information

• Bosch Rexroth Official Store: Provides detailed product information and support.
• BuyRexroth: Offers the product with detailed specifications.
• SP-SpareParts: Ships worldwide with fast delivery options.
• Simply Bearings: Offers competitive pricing and fast delivery.
