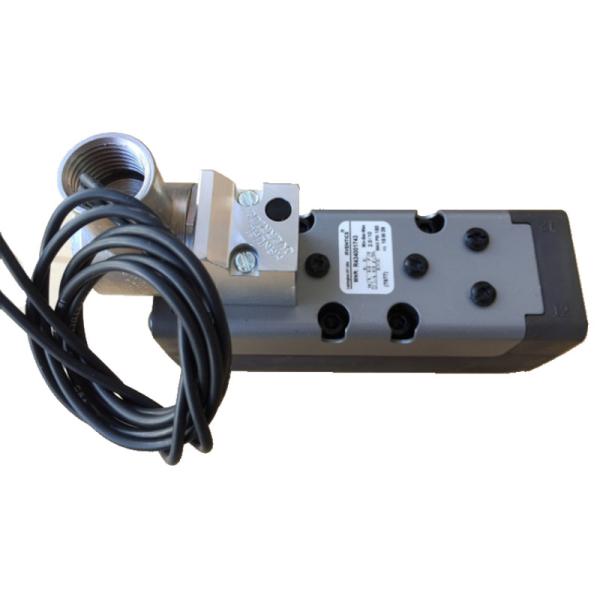

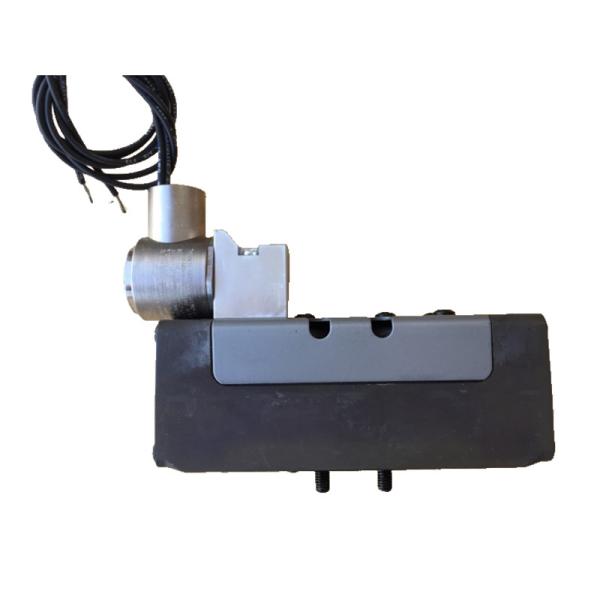

AVENTICS R434001743 Pneumatic Valve Long Life High Safety New Original

Product Description:

Advantages and features of Anvotech pneumatic valves

‌Structural safety and efficient response‌

Adopting pneumatic drive design, the structure is simple and light, installation and maintenance are convenient, and air is used as the medium to avoid combustion risks. It is especially suitable for chemical, metallurgical and other scenes with strict explosion-proof requirements.

The actuator action speed is generally less than 1 m/s, and the response speed is better than hydraulic and electrical drive methods, which is suitable for high-frequency opening and closing operation requirements.

‌Long life and economy‌

The conventional life of the solenoid valve exceeds 30 million times, and the high-quality model can reach more than 200 million times, with significant durability; air medium does not require additional cost, and exhaust treatment is environmentally friendly and pollution-free.

Supporting pressure compensation and centralized air supply, it can release energy in a short time to meet the needs of intermittent high-speed action, further reducing energy consumption.

‌Precise control and environmental adaptability‌

The proportional valve adopts a dual-guide structure and a multi-spring actuator, with precise flow characteristics (such as ±1% adjustment accuracy), suitable for pressure, flow and direction control of media such as gas, liquid, and steam.

The temperature resistance range is wide (-25~60℃), and the adaptability can be improved by adding protective measures (waterproof cover, anti-vibration bracket) in high temperature or high vibration environment.

Precautions for use

‌Installation specification

‌
Vertical installation is preferred. If the inclination angle exceeds 5°, additional support parts need to be added; when the pipeline height exceeds 2 meters, an operating platform must be set up to ensure maintenance convenience.

Deeply buried valves need to be equipped with extension rods, and the operating mechanism must be fixed firmly when it is ≥1.5 meters from the ground to avoid the risk of going down to the well.

‌Operation and debugging requirements

‌
Before the first use, the pipeline must be thoroughly flushed to remove impurities such as welding slag; during debugging, the valve must be fully opened to flush residual foreign matter to prevent the valve core from being blocked.

The opening and closing operation strictly follows the clockwise closing principle, the number of actuator revolutions is controlled within 200-600 revolutions, and the opening and closing torque of large-diameter valves is recommended to be ≤240 N·m.

‌Maintenance and safety protection

‌
Regularly check the wear of seals and the flexibility of valve cores. In high temperature or high pollution environments, the lubrication cycle needs to be shortened to 300 hours, and high temperature resistant lubricants are preferred.

It is strictly forbidden to overhaul explosion-proof products with power on. The flatness of the explosion-proof surface must be protected during disassembly and assembly. The sealing and explosion-proof performance must be verified after repair.

‌Redundant design and emergency measures‌

It is recommended to configure a bypass loop for key process pipelines to ensure system continuity in the event of a failure; the valve position indicator disk must be clearly marked and firmly fixed to facilitate rapid status confirmation.

(Note: The advantages focus on safety, durability and precise control; the precautions cover the core points of installation, operation and maintenance, and redundant design)
