Product Description:

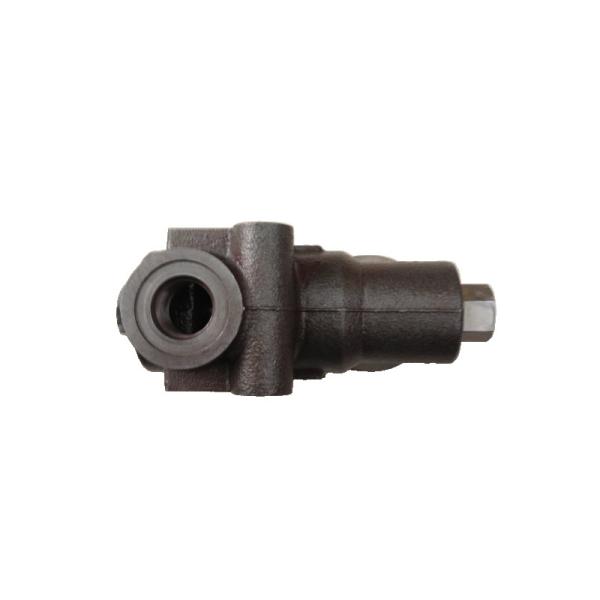

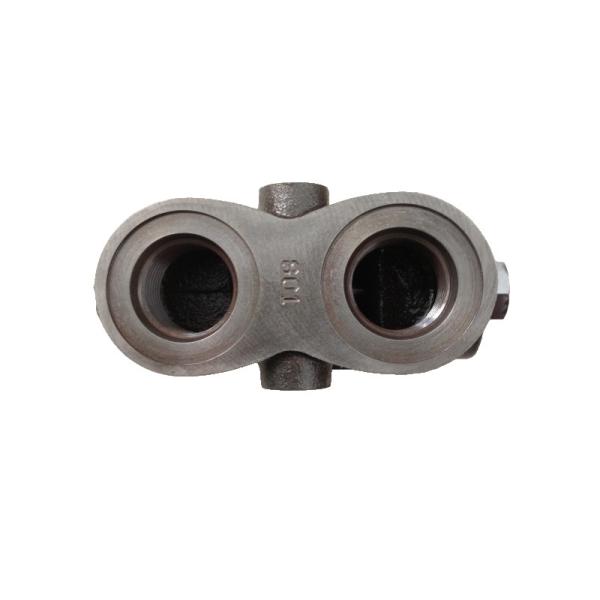

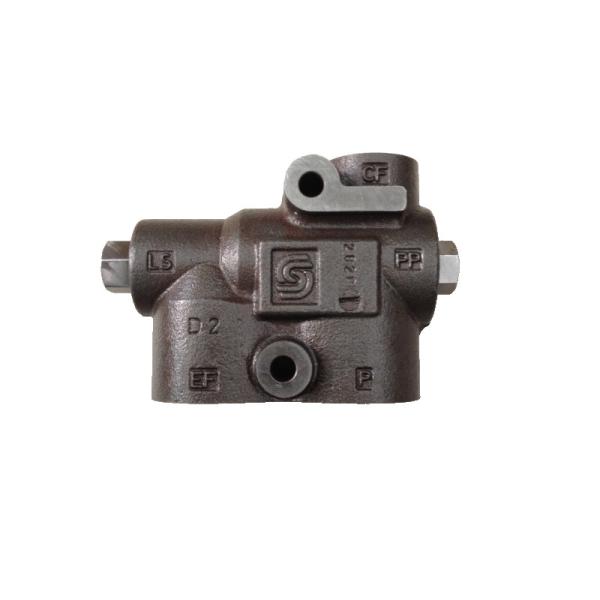

Advantages and features of Danfoss priority valve and precautions for use

‌1. Advantages and features‌

‌Safety and system priority guarantee‌

Adopting the ‌steering priority design‌ ensures that the steering system obtains hydraulic power first, avoids insufficient hydraulic resources when multiple actuators work at the same time, and improves the safety of equipment operation.

Integrated ‌pilot relief valve‌ (OLS 160/320 model optional), can dynamically adjust the flow pressure to prevent system overload and reduce the risk of pipeline impact.

‌Energy-saving and low loss‌

The valve body adopts a ‌low pressure drop design‌ to reduce energy loss, improve fuel efficiency by about 15%-20%, and the operating noise is lower than similar products.

Static and dynamic flow modes are optional. The static mode is suitable for stable loads, and the dynamic mode accelerates the response through flow, shortening the start-up delay to milliseconds.

‌Structural optimization and durability‌

The piston ring is made of ‌special materials‌ (such as wear-resistant alloys), with strong anti-seizure performance, and can still maintain flexible opening and closing after long-term use.

The sealing design takes into account the low leakage rate (leakage rate <0.1%), and is equipped with a hard seal interface, which is suitable for high-pressure hydraulic systems (≤35MPa).

‌Flexible adaptation and intelligent control‌

Supports electro-hydraulic signal input, can be seamlessly connected to PLC or industrial bus system, and realizes proportional adjustment of flow and pressure.

The valve body has no restrictions on installation direction, and is suitable for horizontal or vertical pipeline layout. There is no need to disassemble the whole machine for maintenance.

‌II. Precautions for use‌

‌Installation and medium management‌

The oil flow direction must be strictly marked during installation. Reverse installation may cause valve core jamming or seal failure.

The medium cleanliness level is required to be ≥ISO 18/15, and a 10μm filter is installed to prevent particulate matter from wearing the valve core.

‌Operation specification‌

Avoid the valve being in a half-open state for a long time. It is recommended to use a proportional valve or an electronic control module for frequent adjustment scenarios to reduce mechanical wear.

‌Exhaust operation is required before starting to prevent cavitation from affecting flow stability.

‌Maintenance and troubleshooting‌

Check the seal wear every ‌500 hours‌, and replace the fluororubber seal ring first (recommended replacement cycle 1-2 years).

If the valve core is stuck, it can be released by back flushing or tapping the valve body shell. Forcible disassembly with tools is prohibited.

‌Prohibited scenarios‌

It is prohibited to use it in hydraulic systems containing hydrogen media or corrosive liquids to avoid oxidation and failure of metal parts.

Not suitable for high viscosity media (such as hydraulic oil > 46cSt) or fluid environments containing fiber impurities.

‌Note‌: When selecting, it is necessary to combine the system pressure, medium characteristics and control accuracy requirements. It is recommended to refer to the Danfoss technical manual or consult official technical support.
