Key Specifications

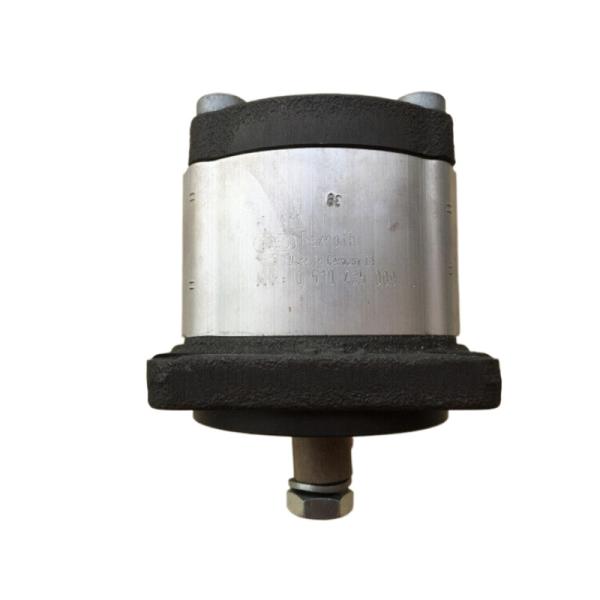

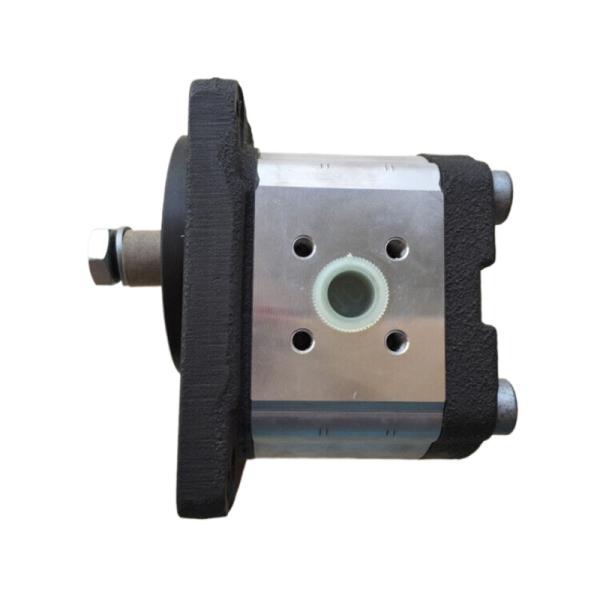

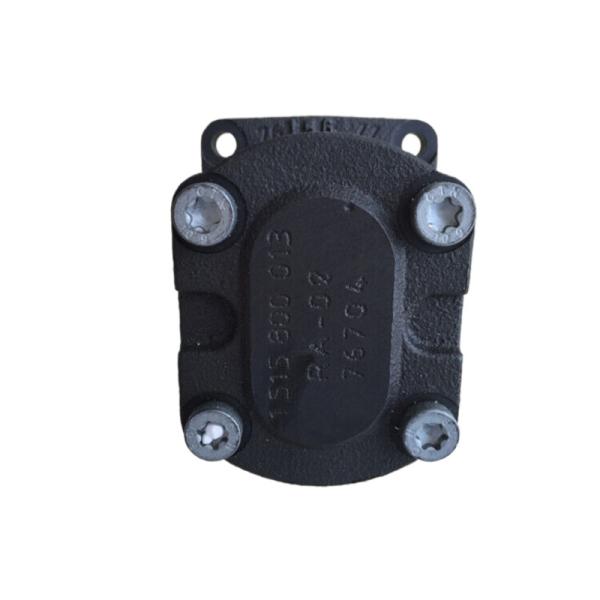

• Model: AZPF-11-010RFB20MB
• Displacement: 10 cm³ per revolution.
• Maximum Operating Pressure: 250 bar.
• Rotation: Clockwise.
• Shaft Configuration: Conical 1:5.

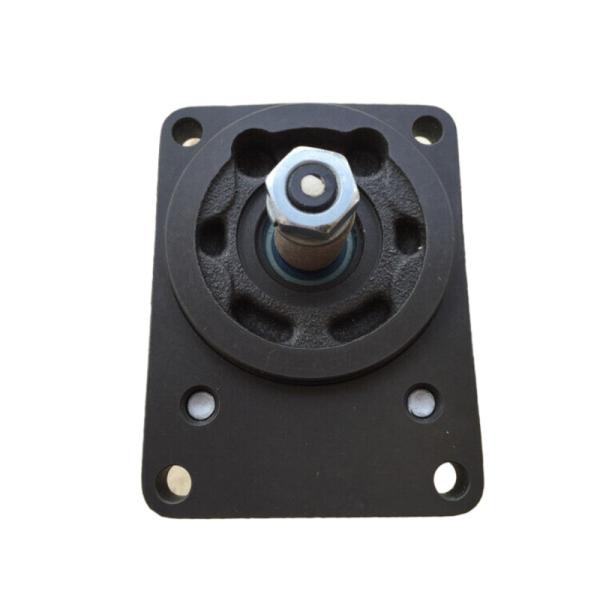

• Flange Type: Rectangular flange with a diameter of 36.47 mm (M8).
• Dimensions: 84.1 mm x 87 mm x 112 mm.
• Weight: 3.1 kg.
• Maximum Speed: 4000 RPM.

Features and Benefits

• High Efficiency: Converts mechanical energy into hydraulic energy with minimal loss.
• Robust Construction: Designed for long-term reliability in demanding industrial environments.
• Low Noise Operation: Features low working noise and low pulse flow, making it suitable for applications where noise reduction is important.
• Extended Service Life: Utilizes sliding bearings and gap sealing to ensure long service life.
• Wide Operating Range: Suitable for a wide range of operating conditions, including different viscosities and speeds.

Applications

• Hydraulic Systems: Used in systems requiring constant displacement and high pressure.
• Material Handling Equipment: Such as forklifts and pallet trucks.
• Construction Machinery: Including excavators and loaders.
• Agricultural Equipment: Such as tractors and combines.

FAQ

Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.

Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
