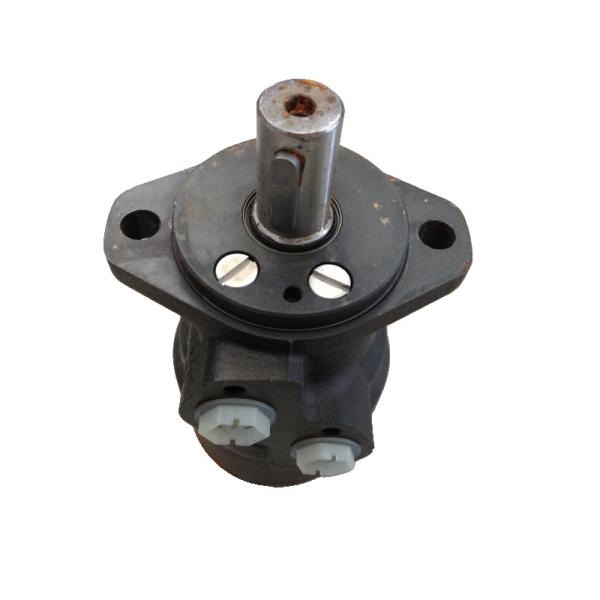

Danfoss OMP200151-0715 Hydraulic Orbital Motor High Reliability Long Life‌ New Original

Product Description:

Advantages and features of Danfoss cycloidal motors and precautions for use

‌1. Advantages and features‌

‌High efficiency and high torque design‌

Adopting ‌Geroler™ technology‌ and ‌toothed stator and rotor pair‌, the mechanical efficiency is as high as ‌90%‌ or more, and the low-speed stability is excellent (the minimum speed can reach 15 rpm), which can meet the high torque output requirements (such as the maximum torque of 25Nm for the OMTS 250 model).

Optimized flow distribution mechanism (axial flow distribution or disc flow distribution), with automatic wear compensation function, can still maintain accuracy after long-term operation.

‌Compact, light and highly adaptable‌

Small size and light weight (such as the compact design of OMTS 250), suitable for space-constrained scenes such as forklifts and aerial work vehicles.

Supports a variety of flanges, output shafts and oil port forms, can be installed horizontally or vertically, compatible with open-loop/closed-loop hydraulic systems and different hydraulic media (such as mineral oil, bio-oil).

‌High reliability and long life‌

Core components are made of wear-resistant alloy materials (such as needle bearings and corrosion-resistant gear rings), which can withstand high pressure (≤25MPa) and extreme working conditions (such as dust and vibration), and the leakage rate is less than 0.1%.

Some models integrate brakes or speed sensors to support precise control and safety protection.

‌Flexible functional scalability‌

Can be used in series or parallel, supporting multi-motor collaboration (such as multi-actuators for construction machinery).

Provide customized designs such as low leakage and wheel-side motors, suitable for scenarios such as material handling and special vehicles.

‌II. Precautions for use‌

‌Media and filtration requirements‌

The cleanliness of the hydraulic oil must reach ‌ISO 18/15‌ or above, and the system must be equipped with a ‌10μm grade filter‌ to prevent particulate matter from wearing the stator and rotor pairs.

It is recommended to use hydraulic oil with a viscosity of ‌15-46cSt‌, and high viscosity (＞46cSt) or media containing fiber impurities are prohibited.

‌Installation and startup specifications‌

During installation, the pipeline must be aligned to avoid external force from twisting the valve body; before the first startup, it must be run at no load for 10-15 minutes and exhaust thoroughly.

When used in series, an external oil drain pipeline must be connected to prevent internal pressure accumulation.

‌Operation and maintenance‌

Avoid long-term ‌half-open state‌ or frequent start and stop. It is recommended to use a proportional valve to optimize flow regulation and reduce mechanical wear.

Check the oil contamination every ‌500 hours‌ and replace the seals regularly (fluororubber is recommended, and the replacement cycle is 1-2 years).

‌Prohibited scenarios‌

It is prohibited to use in ‌corrosive media‌ or ‌hydrogen environments‌ to prevent metal parts from oxidizing or sealing failure.

Not suitable for hydraulic circuits that are not equipped with a filtration system‌ or ‌low pressure unstable‌.

‌Note‌: The selection needs to be combined with the pressure level, load characteristics and control requirements. It is recommended to refer to the Danfoss technical manual or contact official technical support.
