Description:

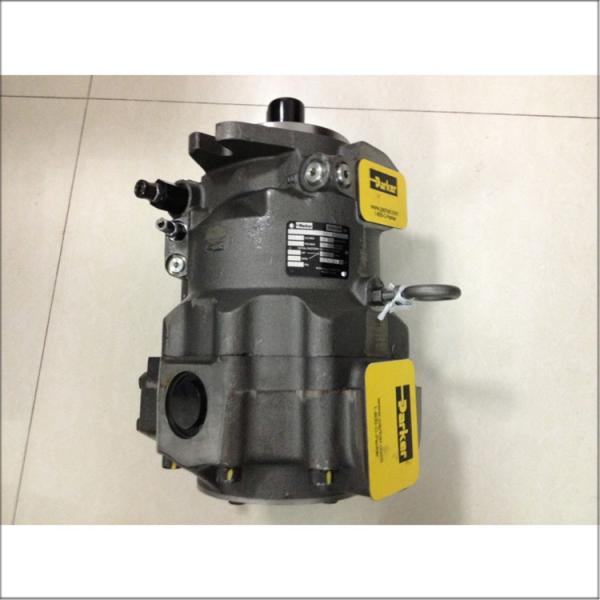

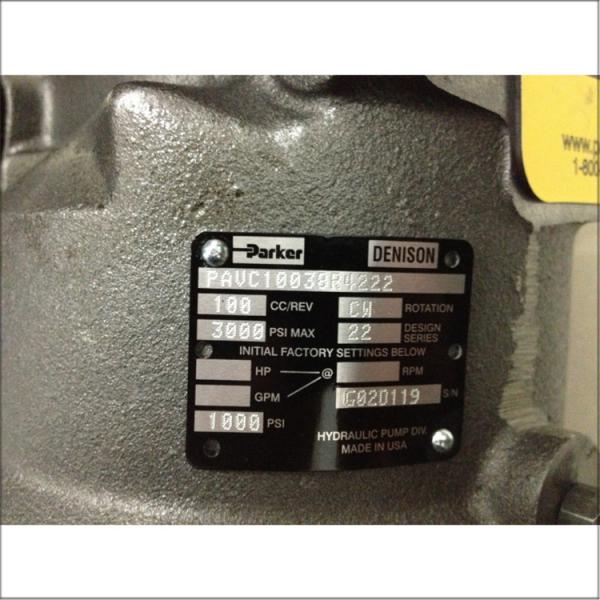

Parker Hydraulic Pump PAVC10038R4222 is a medium pressure axial piston pump produced by Parker Hannifin, belonging to the PAVC100 series. As a global leading supplier of motion and control technology, Parker Hannifin's hydraulic pump products enjoy a high reputation in the industrial field. Displacement: 100 cm³/rev. Flow: 179.8 L/min at 1800 rpm. Working pressure: up to 248 bar. Speed ​​range: up to 2600 rpm. Power: 71.2 kW. Dimensions: 42 cm x 25 cm x 31 cm. The pump adopts a high-strength cast iron casing and a built-in supercharger, which can achieve high speed performance up to 3000 RPM. It is designed as a two-piece structure for easy maintenance and replacement of parts. Ensure the stable operation of the pump at high pressure and high speed. Plug-in control: easy to replace on site, improving the convenience of maintenance. Replaceable bronze composite valve plate: improves the durability and reliability of the pump. Dynamic pressure cylinder bearing: further enhances the performance and life of the pump. Air release valve: used for rapid filling to ensure efficient start-up of the pump.

Application areas:

Construction machinery: such as excavators, loaders, etc., used to provide hydraulic power to drive various working devices.
Steel mills: in rolling mills, continuous casting machines and other equipment, used to provide high-pressure hydraulic power to ensure stable operation of the equipment.
Power plants: used as lubricating oil pumps or coolant pumps in the lubrication and cooling systems of power generation equipment.
Ports and ships: used in the hydraulic systems of ships, such as steering gears, cranes, etc.
Injection molding machines: provide power for the hydraulic systems of injection molding machines to ensure efficient operation of the equipment.
Mining machinery: in mining equipment, such as crushers, loaders, etc., used to provide high-pressure hydraulic power.
Industrial equipment: in various industrial production lines, used to drive actuators such as hydraulic cylinders and hydraulic motors.

Advantages:

High displacement and high flow: 100 cm³/rev displacement and 179.8 L/min flow (at 1800 rpm) can meet the needs of high-power hydraulic systems.
High pressure capability: The maximum working pressure can reach 248 bar, suitable for high-pressure hydraulic systems.
High speed performance: The maximum speed can reach 2600 rpm, which can adapt to high-speed working conditions.
High-strength cast iron housing: Provides good mechanical strength and pressure resistance.
Sealed shaft bearing: Ensures stable operation of the pump under high pressure and high speed.
Replaceable bronze composite valve plate: Improves the durability and reliability of the pump.
Dynamic cylinder bearing: Further enhances the performance and life of the pump.
Two-piece design: Easy to repair and replace parts.
Plug-in control: Easy to replace on site, improving the convenience of maintenance.
Multiple control modes: Including standard pressure-compensated variable controller, constant power-compensated variable controller and electro-hydraulic proportional variable controller, which can adapt to different working conditions.
Water glycol liquid compatibility: Able to work under water glycol liquid, suitable for occasions with high fire protection requirements.
Load sensing function: Able to automatically adjust the displacement according to the actual load demand to reduce energy waste.
Low noise design: Compared with traditional gear pumps, arc gear pumps have lower noise levels and provide a quieter working environment.
