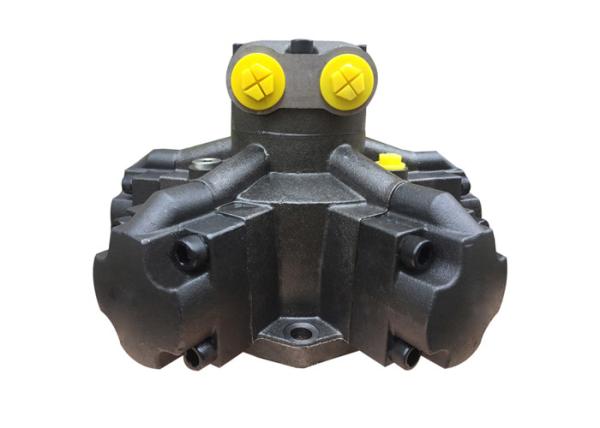

630RPM Crane Hydraulic Piston Motor In Mining Machinery
630RPM Crane Hydraulic Piston Motor In Mining Machinery
630RPM Crane Hydraulic Piston Motor In Mining Machinery
630RPM Crane Hydraulic Piston Motor In Mining Machinery
Specifications
Brand Name :
WEIWO
Model Number :
NIM6-400
Certification :
ISO9001:2008
Place of Origin :
NINGBO,CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Standard Export Wooden Case
TYPE :
PISTON MOTOR
COLOR :
CUSTOMIZED
SPEED :
5-630RPM
RATED TORQUE :
1469 N.m
RATED PRESSURE :
25 MPa
WEIGHT :
57.5 KG
Description

Part Name: Wide Speed Range Crane Hydraulic Motors Applied In Mining Machinery

Especially applied in mining machinery and plastic machinery.

Application:

Hydraulic transmission of mining, construction, engineering machinery, lifting and transportation equipment, metallurgy, petroleum and coal mines, marine machinery, plastic machinery, geological drilling and other machinery.

NIM series crankshaft and connecting rod type low speed high torque hydraulic motors are manufactured according to the technology and standards from Italy. Base on this, we also continue to carry out technical improvements to get excellent performance of products according to the market needs.

Advantage:

1. Good reliability

2. high efficiency

3. long life

4. ow noise

5. wide speed range

​Correlation formula

Actual output torque of hydraulic motor:

M=0.159(P1-P2)V·ηm(N.m)

Notes:

P1= inlet pressure of hydraulic motor (MPa)

P2=outlet pressure of hydraulic motor (MPa)

V=displacement of hydraulic motor(ml/r)

ηm=mechanical efficiency of hydraulic motor(%)

Technical Parameters:

Model

Displacement

mL/r

Pressure

MPa

Torque

Speed

r/min

Weight

Kg
Rated pressure Max pressure

Rated torque

N.m

Unit theoretical torque

N.m/MPa
NIM6-400 397 25 32 1469 59 5-630 57.5

Detail drawings and performance curves:
