Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy
Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy
Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy
Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy
Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy
Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy
Specifications
Application :
Marine, Chemical, Offshore, Oil and Gas
Delivery Time :
8-20 days
MOQ :
100 Pieces
Head Type :
Flat Countersunk Head (82 Degree)
Place of Origin :
China
Supply Ability :
50 Tons per Month
Standard :
ASME B18.3
Size Range :
M3-M24, 1/8 inch - 1 inch
Temperature Range :
Up to 538 Degree C
Model Number :
FLRS-B0183
Corrosion Resistance :
Excellent in seawater, acidic and alkaline media
Packaging Details :
Bulk in cartons on wood pallet or according to customer special demand
Certification :
ISO9001
Thread :
Metric Coarse/Fine, UNC/UNF
Brand Name :
FLRS or OEM
Material :
Monel 400 (UNS N04400)
Payment Terms :
T/T,L/C,Western Union,PayPal
Price :
USD 0.5-5 / Piece
Drive Type :
Hexagon Socket
Description

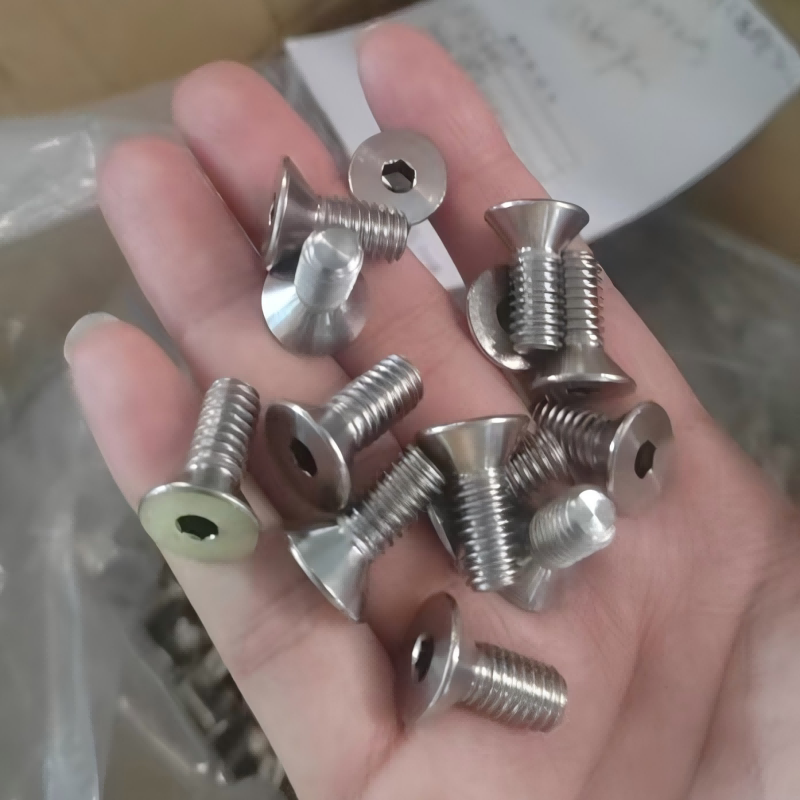

Monel 400 Flat Head Socket Cap Screw manufactured strictly as per standard ASME B18.3, featuring a countersunk 82 degree flat head and hexagon socket drive. The fastener is made of Monel 400 (UNS N04400) nickel-copper alloy, delivering outstanding corrosion resistance in seawater, acidic and alkaline environments - the ideal choice for marine, chemical processing, offshore and oil and gas applications.

ItemMonel 400 Flat Head Socket Cap Screw
StandardASME B18.3
MaterialMonel 400 (UNS N04400), Nickel 63% Min, Copper 28-34%, Iron 2.5% Max, Manganese 2% Max
Head TypeFlat Countersunk Head, 82 Degree
Drive TypeHexagon Socket
Size RangeM3-M24, 1/8 inch - 1 inch, customized available
ThreadMetric Coarse/Fine, UNC/UNF, full or half thread
SurfacePlain, as per customer requirement
Corrosion ResistanceExcellent resistance to seawater, hydrofluoric acid, sulfuric acid and alkaline media
Temperature RangeUp to 538 Degree C
ApplicationMarine equipment, chemical plants, offshore platforms, oil and gas, pump and valve industries

Key Advantages:

  • Full compliance with ASME B18.3 dimensional and mechanical requirements
  • Monel 400 alloy offers superior pitting and stress corrosion cracking resistance
  • Smooth countersunk head allows flush installation for streamlined assemblies
  • Standard and non-standard sizes supported, OEM service available

Contact us for detailed specifications, testing certificates and a competitive quotation.
