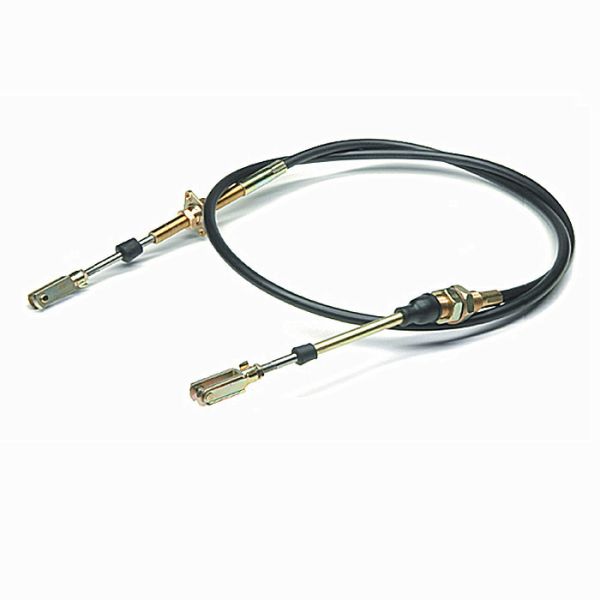

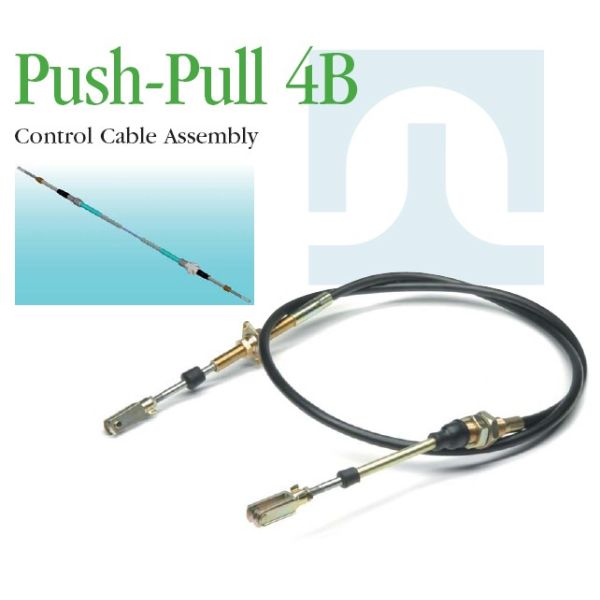

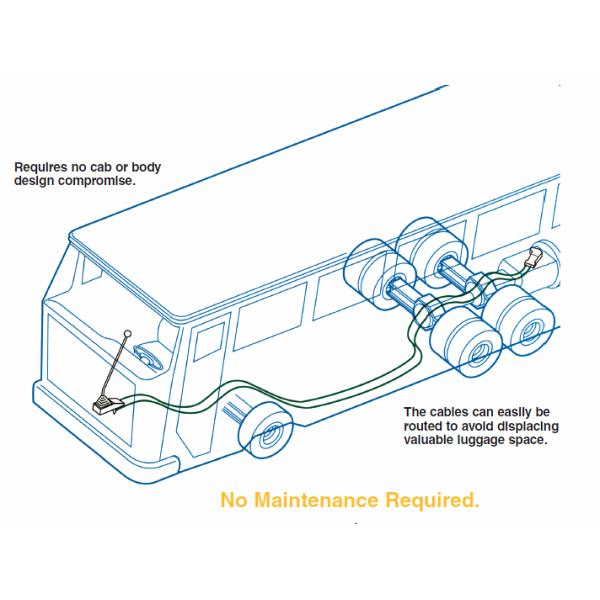

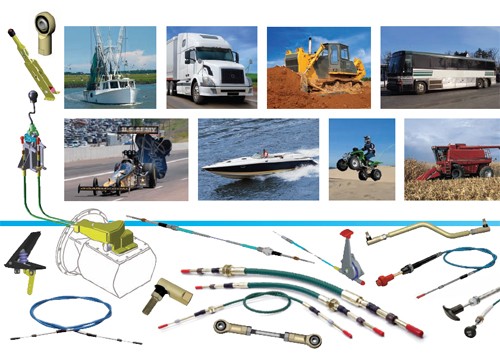

[Pull-Pull 4B, Control Cables]

Description: Applications: Features:

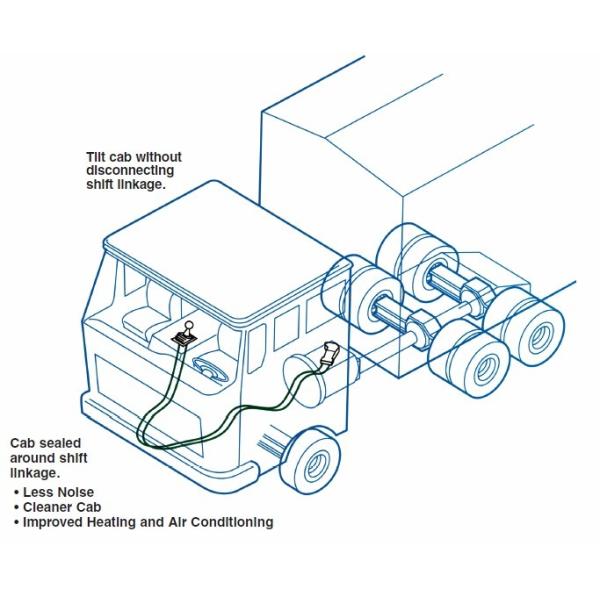

Push-Pull 4B • Clutch controls • Truck crane — cross link system
Industrial Control • Heavy duty lanyards • In conjunction with most
Cable Assembly control lever systems

• Power take off

• Gear selection

• Hydraulic valve systems

Material: End Fittings: • Accelerator systems

• Plated Steel • Rod Ends • Stainless steel end rod

Standard, Optional options available

Stainless Steel

• Plastic Coated

High Tensile Steel
Lined Conduit
• Armored Push-Pull Steel
Innermember
• Black
polypropylene

[Push-Pull Industrial]

Commercial, cost effective product range for simple push-pull applications. Available in four different sizes. The inner member consists of a multi-strand high tensile steel cable, which is overwound with an armored covering to prevent spreading under compressive loads. This also gives a smooth surface for low-friction sliding action.

The conduit consists of low-friction hard plastic, reinforced by high tensile steel wires, of sufficient number and size to completely surround the plastic. The wires are laid longitudinally with a gradual spiral. Black UV stabilized polypropylene is extruded over the whole in a thickness sufficient to provide a tough hard-wearing jacket which will withstand working stressed between -40°C and 100°C.
It is highly resistant to abrasion and most organic and inorganic media. Available with swivel flange, in both metric and UNF thread mounting fittings.

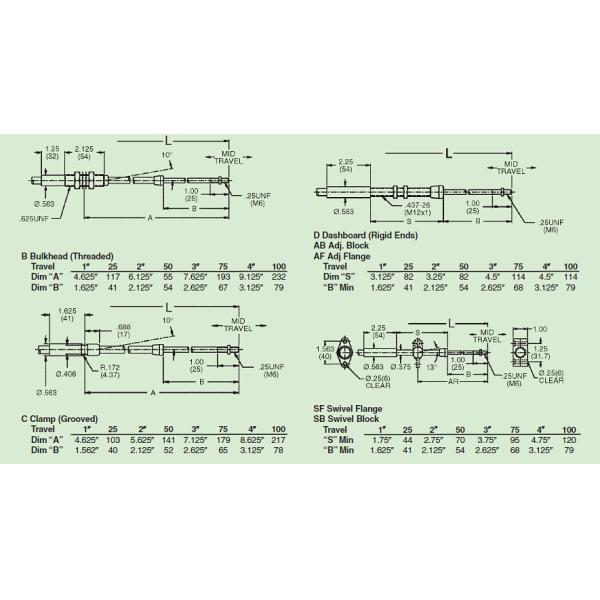

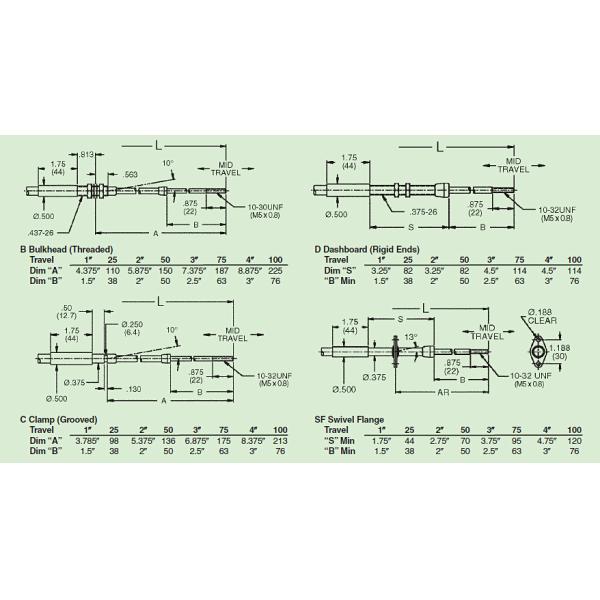

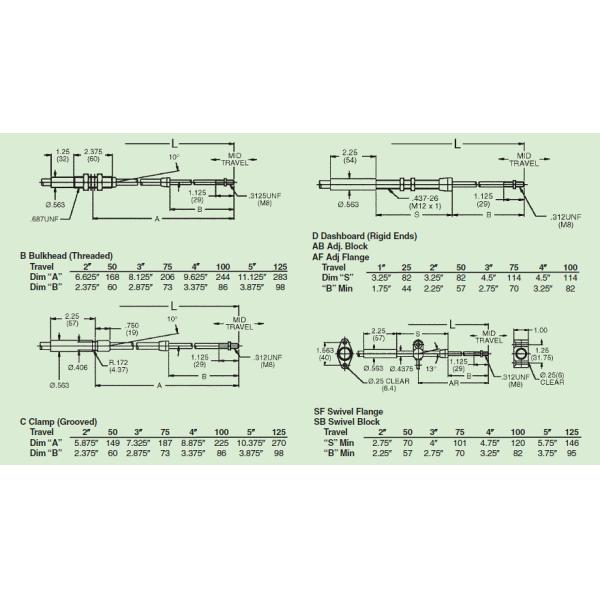

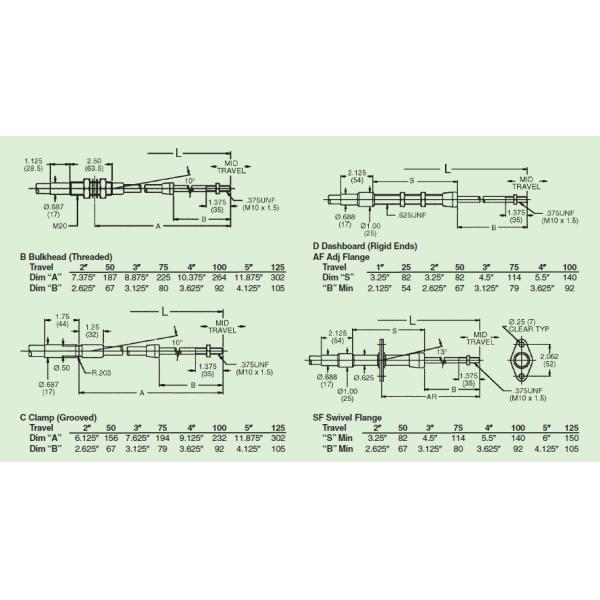

[Push-Pull 4B Specifications]

Push-Pull 4B30 — M5

Push-Pull 4B60 — M10

Push-Pull 4B45 — M8

Push-Pull 4B45 — M6

All line art dimensions are represented as follows: in (mm)

[Push -Pull 4B Order Code]
