Specifications
Brand Name :
Phidix
Model Number :
DFX
Certification :
IATF16949
Place of Origin :
Shang Hai
MOQ :
10 piece
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
800 pcs per month
Delivery Time :
7 - 40 work days
Packaging Details :
carton or wood case
Type :
MD,LD,HD,VLD
Serise :
Push pull cable assembly
Certificate :
IATF16949
Material :
Stainless Steel
Applications :
Motorcycle Throttle Cable,Marine Control Levers,Industrial Damper Actuators,Commercial Recliner Seat Release,Small Engine Choke Cables
OEM :
Yes
Description

How to Select the Right Inner Wire Core for Mechanical Control Cables

Choosing the correct strand configuration for your inner wire core is critical for ensuring optimal cable performance, durability, and user experience. At Phidix, we help engineers, designers, and OEMs align cable core structures with specific mechanical, spatial, and environmental demands.


This guide will walk you through the pros, cons, and ideal uses for each major construction type.


Strand Configuration Comparison Table

Construction Flexibility Push Performance Bend Radius Application Suitability
1x7 Low Excellent Large Long straight runs, rigid cable routing
1x19 Medium Very Good Medium Precision push-pull actuation
7x7 High Medium Tight Versatile routing, good tensile/flex combo
7x19 Very High Lower Very Tight High-flex routing, complex motion paths
Solid Core None Best Rigid only Short travel, direct motion transfer


Factors to Consider When Selecting Core Type

1. Routing Complexity
• Tight bends or curves → prefer 7x19 or 7x7
• Straight, fixed paths → 1x7 or solid core

2. Motion Type
• Pure push or pull → solid core or 1x19
• Repetitive flexing → 7x19 preferred

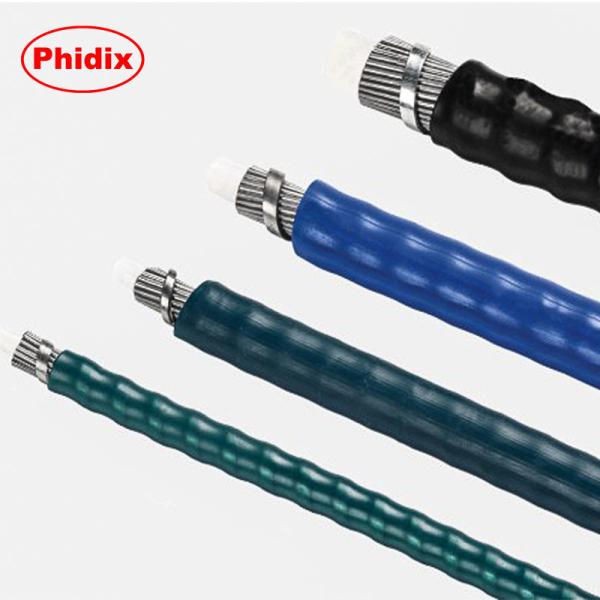

inner-wire-core-selection-guide

3. Force Transfer Priority
• Higher compressive stiffness → solid or 1x7
• Balanced tension + flex → 7x7

4. Environment
• High corrosion risk → Choose SUS 316L options
• Friction-sensitive systems → Use PTFE-coated 1x19 or 7x7

Application Scenarios & Structure Fit

Application Recommended Core Type(s)
Motorcycle Throttle Cable 1x19 / 7x7
Marine Control Levers 7x7 / 7x19
Industrial Damper Actuators Solid / 1x7
Commercial Recliner Seat Release 7x19
Small Engine Choke Cables 1x7 / 1x19


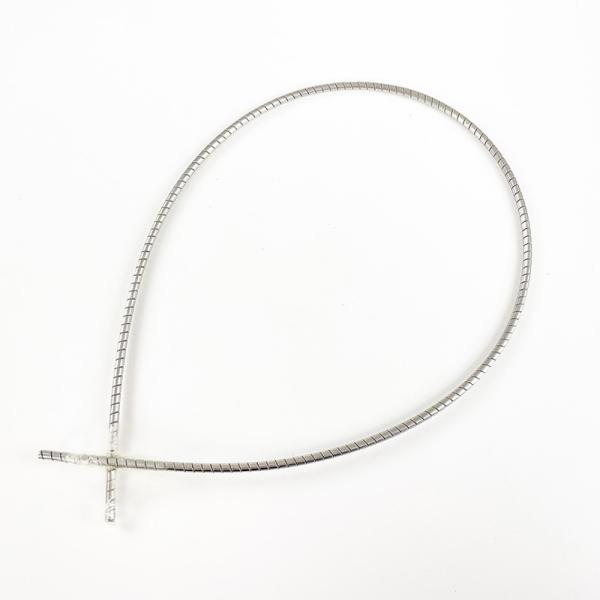

inner-wire-core-selection-guide


Related Pages

• Manufacturing Capabilities
• Failure Modes & Preventive Design

Ask Our Experts

Still unsure which core structure is best for your use case? Share your system details with our engineers and we’ll provide a structure-matched recommendation—along with samples and drawings if needed.
