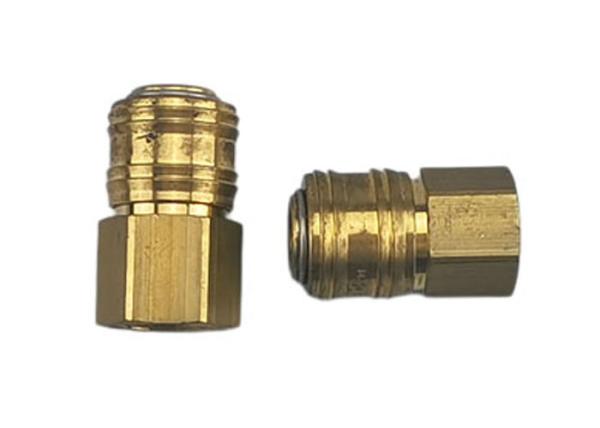

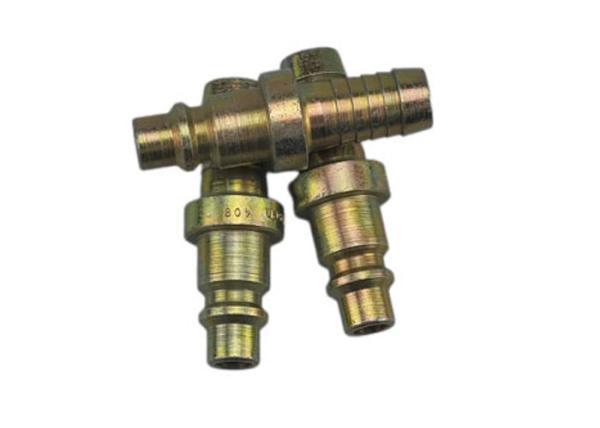

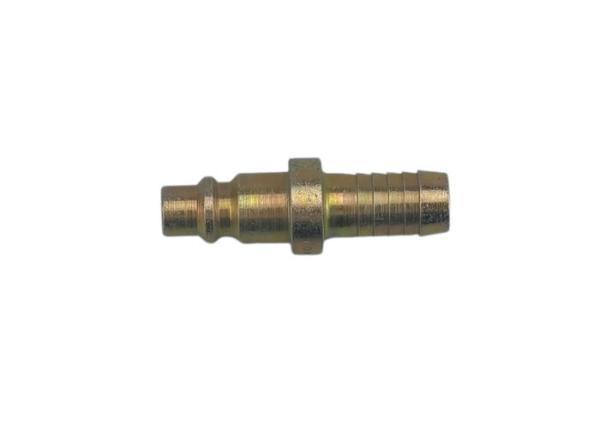

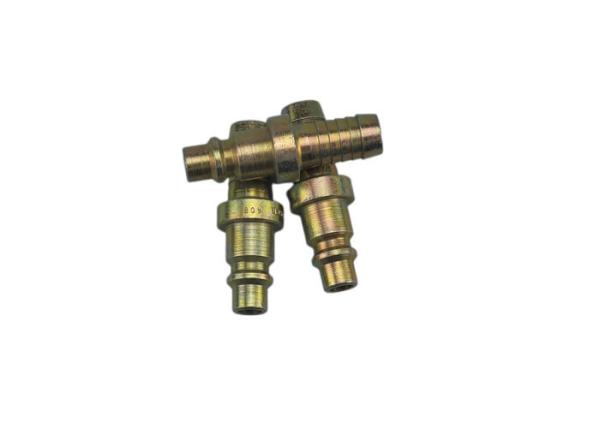

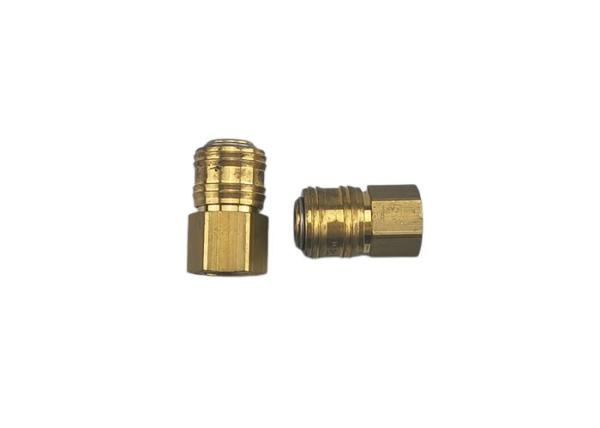

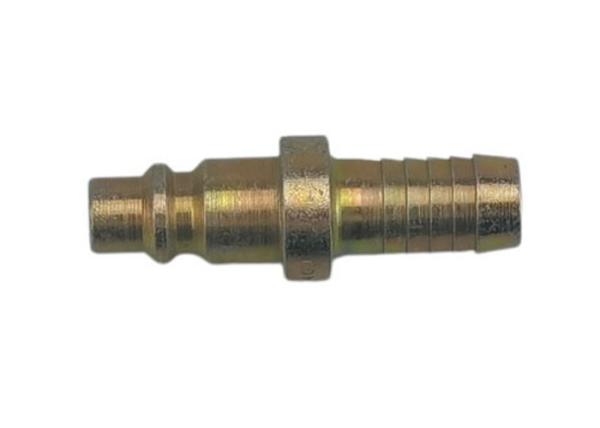

High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling
Specifications
Brand Name :
carterberg
Model Number :
CB-12
Certification :
IATF16949
Place of Origin :
Shanghai, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Application :
Shipyards
Nominal :
1/4
Pressure :
20bar
Material :
Zinc trivalent plated steel
Thread :
Male
Name :
quick disconnect pneumatic coupling
Shape :
Reducing
Temperature :
-20℃ ~ 120℃
Description

High Flow capacity Ring lock series quick disconnect Pneumatic Quick Coupling

CB-12 Series ring lock series quick disconnect pneumatic couplings have a unique interchange which designed for use with compressed air.

Applications • Shipyards • General Pneumatics • Mining • Marine

Standard Materials

  • Zinc trivalent plated steel
  • Seals: NBR, Viton, EPDM

Features

  1. High Flow capacity
  2. Push to connect with a ring lock Sleeve
  3. Ring lock design prevents accidental disconnection
  4. To disconnect rotate sleeve 20 degrees
  5. Compatible with Hansen 2RL Series

High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling

Body Size PARTNO. Thread A B HEX
1/4" CB-S1S-12MN-K 1/8-27 2.01 1.06 0.88
1/4" CB-S2S-12MN-K 1/4-18 2.16 1.06 0.88
1/4" CB-S3S-12MN-K 3/8-18 2.16 1.06 0.88
1/4" CB-S4S-12MN-K 1/2-14 2.35 1.06 0.88

High Flow Pneumatic Quick Coupling , Quick Connect Disconnect Coupling

Body Size PARTNO. Thread C D HEX
1/4" CB-P1S-12MN-K 1/8-27 1.51 0.58 0.50
1/4" CB-P2S-12MN-K 1/4-18 1.66 0.65 0.56
1/4" CB-P3S-12MN-K 3/8-18 2.04 0.79 0.69
1/4" CB-P4S-12MN-K 1/2-14 2.31 1.01 0.88

Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
