Phidix Bidirectional Push-Pull Control Cable Assembly with Clevis & Eyelet Terminal Ends
Phidix Bidirectional Push-Pull Control Cable Assembly with Clevis & Eyelet Terminal Ends
Phidix Bidirectional Push-Pull Control Cable Assembly with Clevis & Eyelet Terminal Ends
Phidix Bidirectional Push-Pull Control Cable Assembly with Clevis & Eyelet Terminal Ends
Specifications
Colour :
Black, Grey, Green
Payment Terms :
L/C,D/A,D/P,T/T
Cable Diameter :
2mm-10mm (Customizable)
Model Number :
Customized
Operating Temperature :
-40℃ To +120℃
MOQ :
100 piece
Delivery Time :
7-40 work days
Corrosion Resistance :
Optional Stainless Steel Components
Price :
Negotiation
End Fittings :
Clevis Fork, Eyelet Ring End; Custom Terminals Available
Certification :
IATF16949, ISO9001
Applications :
Automotive, Industrial, Agricultural, Marine,etc
Supply Ability :
888 Piece/Pieces per Month
Outer Conduit Material :
PE / PVC / PTFE
Brand Name :
PHIDIX
Packaging Details :
carton or wood case
Customization :
Length, Stroke, Fittings, Materials
Place of Origin :
Shanghai, China (Mainland)
Description
Phidix Bidirectional Push-Pull Control Cable Assembly with Clevis & Eyelet Terminal Ends
Phidix bidirectional push-pull control cable assembly is a custom-built mechanical remote transmission cable, designed for heavy-duty remote linear actuation in off-highway machinery and commercial vehicles. This cable is fitted with mixed end terminals: one clevis fork end and one eyelet ring end, paired with threaded bulkhead lock-nut mounting structure. Produced under IATF16949 quality standard, it supports fully customized length, stroke, load rating and hardware configurations. It delivers stable bidirectional push-pull force for throttle, shift, clutch and other mechanical control systems, suitable for OEM replacement and new-build equipment projects.
Applications
  • Construction and earth-moving equipment
  • Commercial trucks, buses and special-purpose vehicles
  • Off-road machinery
  • Marine mechanical control systems
  • Industrial mechanical remote control equipment
Advantages
  • Versatile connection: clevis and eyelet terminals directly match most standard lever and linkage mounting points
  • High compression-resistant inner cable avoids buckling under push load, maintains accurate stroke output
  • Convenient on-site adjustment via lock nuts to compensate assembly tolerance
  • Optional PTFE lining lowers internal friction, reduces operating force and extends service life
  • Wide temperature range, stable performance for outdoor, cold-climate and high-heat environments
  • Direct replacement option for imported control cable assemblies, competitive lead-time and cost

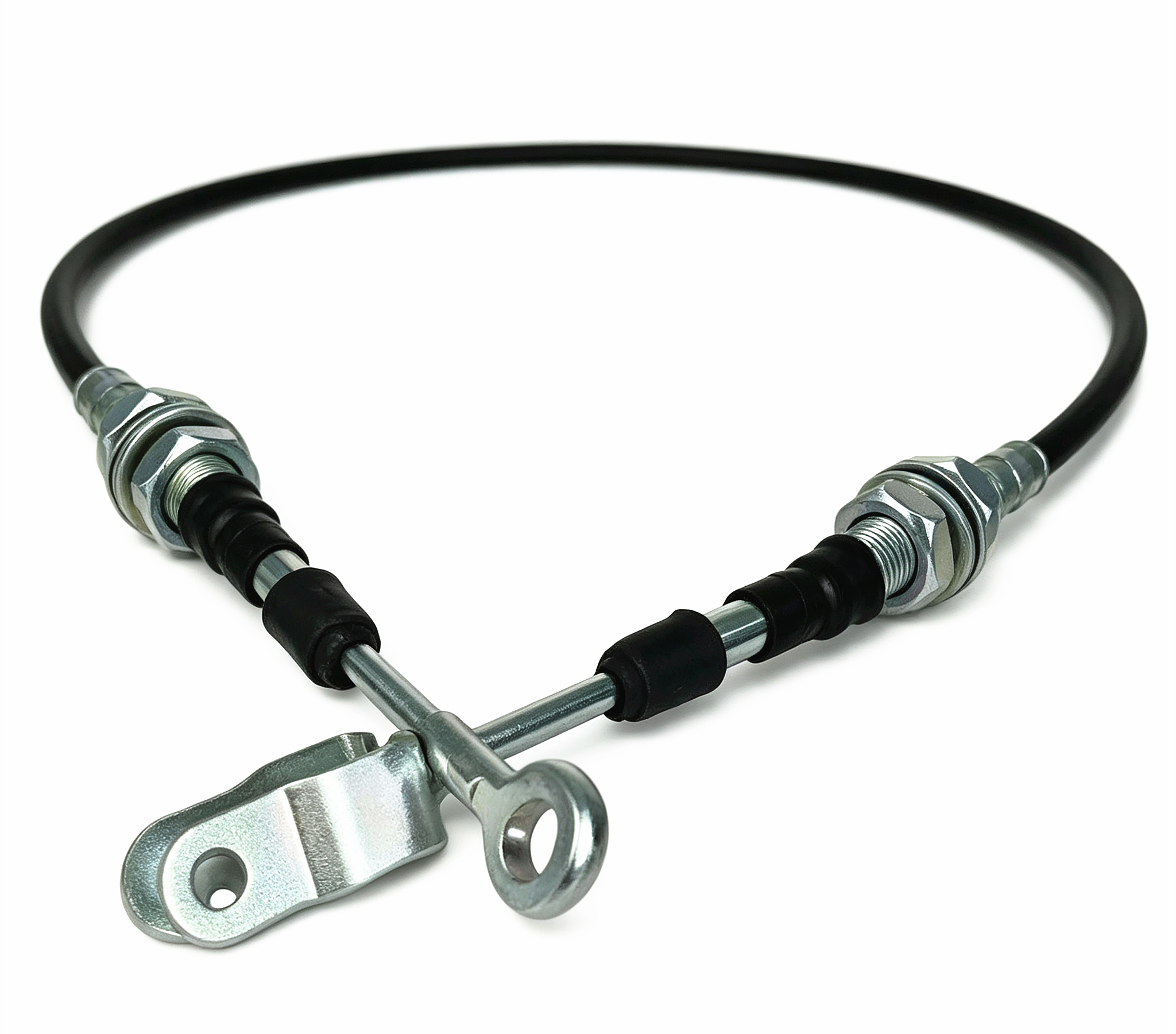

Product Image
Phidix Bidirectional Push-Pull Control Cable Assembly with Clevis & Eyelet Terminal Ends
