T-Handle Push-Pull Control Cable Assembly, Custom Mechanical Manual Control Cable
T-Handle Push-Pull Control Cable Assembly, Custom Mechanical Manual Control Cable
T-Handle Push-Pull Control Cable Assembly, Custom Mechanical Manual Control Cable
T-Handle Push-Pull Control Cable Assembly, Custom Mechanical Manual Control Cable
T-Handle Push-Pull Control Cable Assembly, Custom Mechanical Manual Control Cable
T-Handle Push-Pull Control Cable Assembly, Custom Mechanical Manual Control Cable
Specifications
Mounting Type :
Threaded Bulkhead Installation With Dual Locking Nuts
Travel / Stroke :
Customizable
Inner Cable Material :
Carbon Steel / Stainless Steel
Payment Terms :
L/C,D/A,D/P,T/T
Outer Casing Material :
PE, PVC，PTFE
Inner Cable Core Material :
Carbon Steel / Stainless Steel Optional
Optional Materials: :
304/316 Stainless Steel Inner Core, Anti-Corrosion Nylon Coated Conduit
Handle Type: :
Ergonomic Twist Lock T-Handle
Operating Handle :
Ergonomic T-Handle (Custom Handle Style Available)
Model Number :
Customized
Maximum Load: :
Customized Based On Working Conditions
Applications :
Agricultural Machinery，Construction Machinery，Commercial Vehicles，etc
End Fittings :
Threaded Rod End, Clevis, Ball Joint, Custom Terminals
Outer Conduit Material :
PE / PVC / PTFE
MOQ :
100 piece
Delivery Time :
7-40 work days
Conduit Material: :
Galvanized Armored Steel with Anti-Wear Protective Coating
Locking Function: :
1/8 Turn Standard Locking, Custom Rotation Angle Available
Price :
Negotiation
Protective Component :
Corrugated Rubber Dust‑Proof Bellows Boot
Cable Length :
Customizable
Conduit Colour :
Red
Certification :
IATF16949, ISO9001
Cable Colour :
Black
Conduit Color: :
Standard Black, Grey, Custom Green, Red and Other Colors
Supply Ability :
888 Piece/Pieces per Month
Operating Load :
Customized Based On Cable Structure & Specification
Working Stroke :
Customizable
Applications: :
Construction Machinery, Commercial Vehicles, Agricultural Equipment, Marine Facilities, etc
Operation :
Bidirectional Linear Push Pull Motion
Brand Name :
PHIDIX
Cable Length: :
Fully Customizable Per Application Demands
Packaging Details :
carton or wood case
Operating Temperature :
-40°C ~ +120°C
Control Type: :
Bidirectional Push-Pull Linear Control
Operating Temperature: :
-45°C to +125°C Extreme Temperature Resistance
Mounting Type: :
Threaded Bulkhead Fixed Mount, Flange Optional
Stroke Length: :
Customized Stroke Travel Range
Place of Origin :
Shanghai, China (Mainland)
Description
T-Handle Push-Pull Control Cable Assembly, Custom Mechanical Manual Control Cable
This T-handle push-pull control cable assembly is a fully customizable manual mechanical remote control component manufactured complying with IATF16949 automotive-grade quality standard. Equipped with an ergonomic T-shaped plastic operating handle, integrated rubber bellows dust boot and threaded bulkhead dual-locking-nut mounting structure. This custom push-pull cable delivers reliable bidirectional linear push-pull force transmission. The red outer conduit offers excellent wear-resistance. All core dimensions including cable length, stroke, handle style, end fittings and mounting dimensions can be customized to match customer drawings, samples or OEM replacement requirements.
Applications
  • Agricultural machinery: tractors, harvesters, farm equipment manual throttle/shutter control
  • Construction machinery: loaders, excavators, engineering vehicle manual actuation
  • Commercial vehicles & special-purpose vehicles: buses, trucks, emergency vehicles
  • Off-road equipment and marine mechanical remote manual operation
  • General industrial equipment: manual valve control, shutter and latch remote operation
Product Features
  • Ergonomic T-shape plastic handle, comfortable grip for manual push-pull operation
  • Corrugated rubber bellows boot, effective dust-proof, water-proof and anti-contamination protection for inner cable
  • Dual locking nut bulk-through mounting design, convenient installation and position fine-tuning, anti-loosening under vibration
  • Red high-strength outer conduit with excellent wear resistance; multiple optional conduit materials for different working conditions
  • 100% custom-built product: length, stroke, thread specification, handle type and end terminals can be tailored to project requirements
  • Optional stainless steel inner cable core for corrosion-resistant working scenarios
  • Manufactured under IATF16949 quality management system for stable and consistent performance
Working Principle
This custom T-Handle push-pull cable relies on relative sliding movement between inner steel cable and fixed outer conduit. Operators apply manual push or pull force on the T-shaped handle. Force is transmitted via inner steel cable to output end fittings and drives linear mechanical movement. The outer conduit is securely fixed on equipment bulkhead with dual locking nuts to avoid displacement caused by vibration. The corrugated rubber bellows protects moving cable section from external dirt. Bidirectional push-pull motion realizes remote manual control of throttles, valves, locks and other mechanical mechanisms.
Product Image

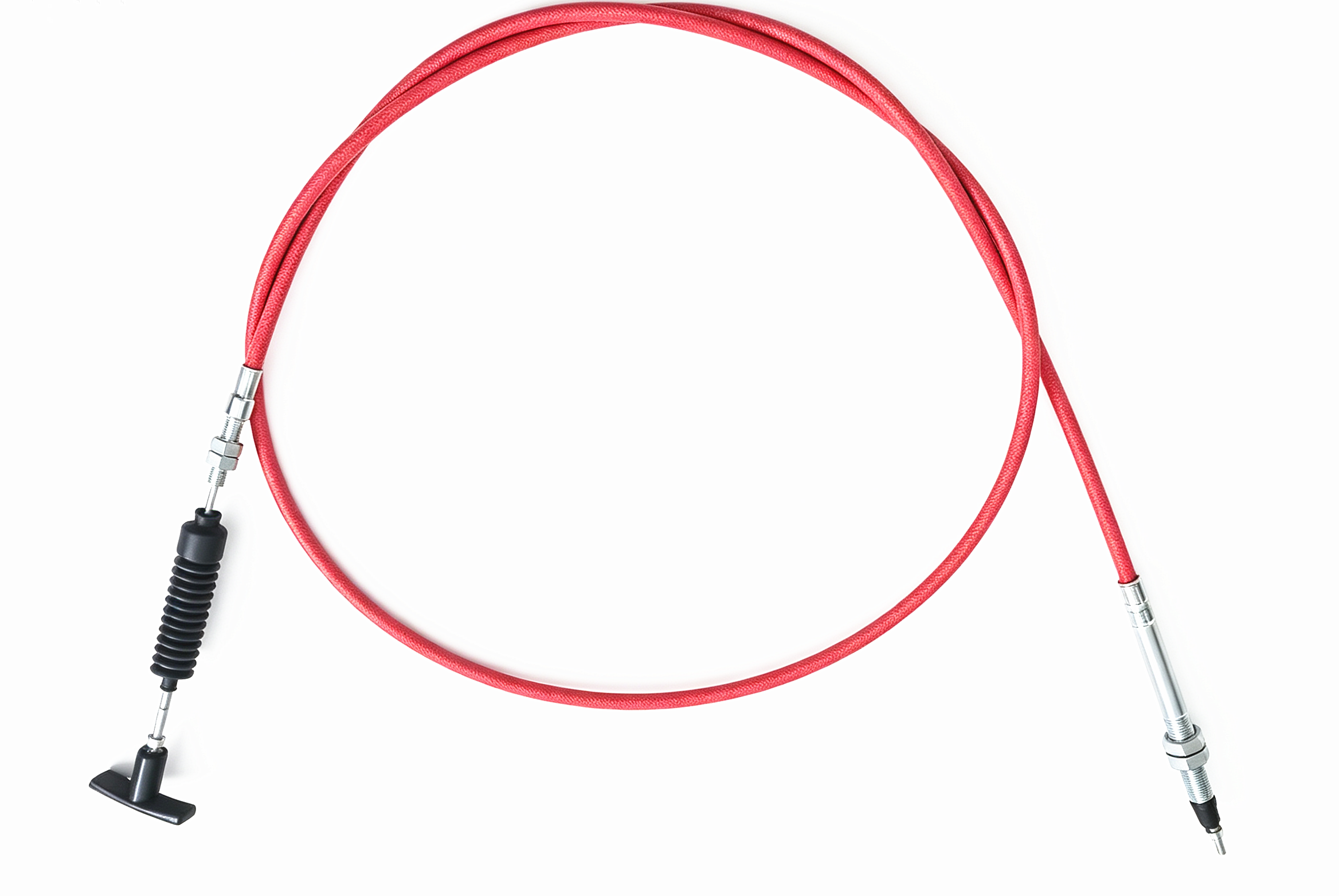

T-Handle Push-Pull Control Cable Assembly, Custom Mechanical Manual Control Cable
