Push Pull Control Cable With T-Handle
Push Pull Control Cable With T-Handle
Push Pull Control Cable With T-Handle
Push Pull Control Cable With T-Handle
Push Pull Control Cable With T-Handle
Push Pull Control Cable With T-Handle
Push Pull Control Cable With T-Handle
Push Pull Control Cable With T-Handle
Specifications
MOQ :
100 Piece/Pieces
Delivery Time :
7-40 work days
Cable Length :
Fully Customizable
End Fittings :
Threaded Terminals, Adjustable Connector, Dust‑Froof Rubber Boot
Packaging Details :
carton or wood case
Rated Load :
Customized According To Cable Dimension And Assembly
Model Number :
Customized
Outer Conduit Material :
PE / PVC
Payment Terms :
L/C,D/A,D/P,T/T
Mounting Style :
Threaded Bulkhead Installation With Lock Nuts
Price :
Negotiation
Working Stroke :
Customizable Per Application Requirements
Supply Ability :
888 Piece/Pieces per Month
Operating Temperature :
‑40°C ~ +120°C
Applications :
Agricultural Equipment, Trucks, Marine Equipment, Industrial Machinery, etc
Certification :
IATF16949
Inner Cable Material :
Carbon Steel / Stainless Steel
Brand Name :
PHIDIX
Handle Type :
Ergonomic T‑shape Pull‑Push Handle
Place of Origin :
China
Conduit Color :
Bright Red (Black, Other Colors Customizable)
Description

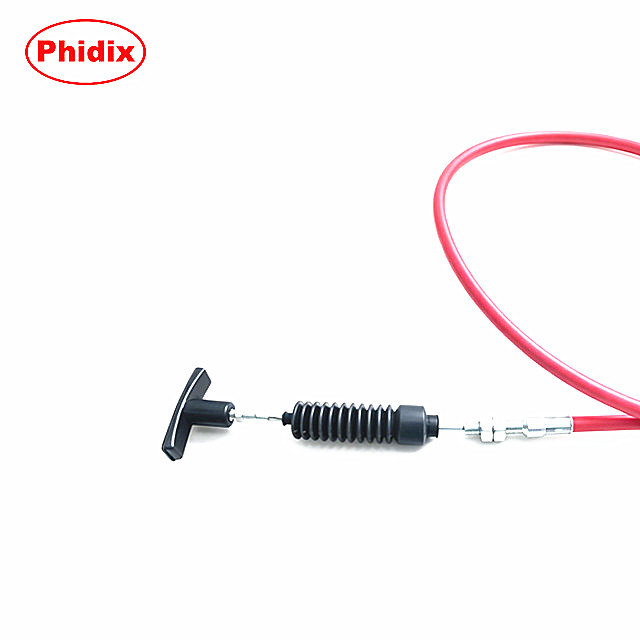

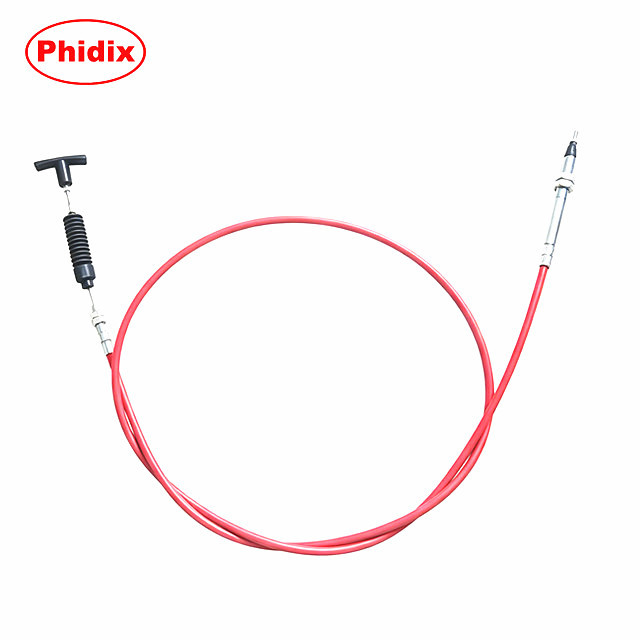

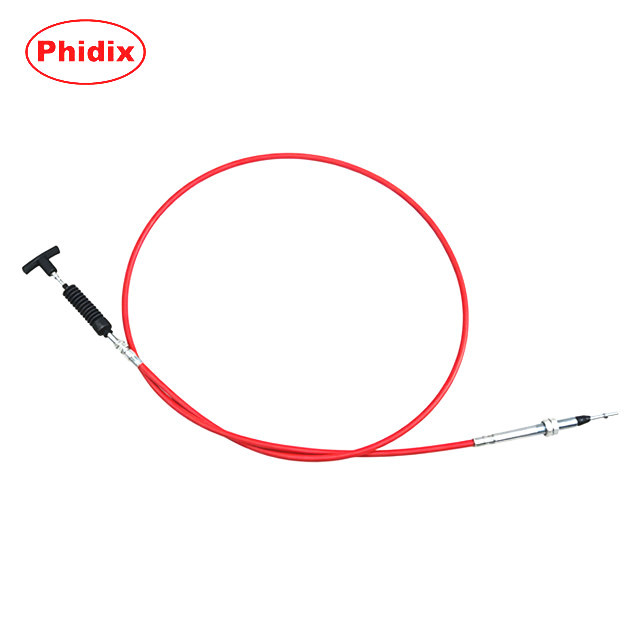

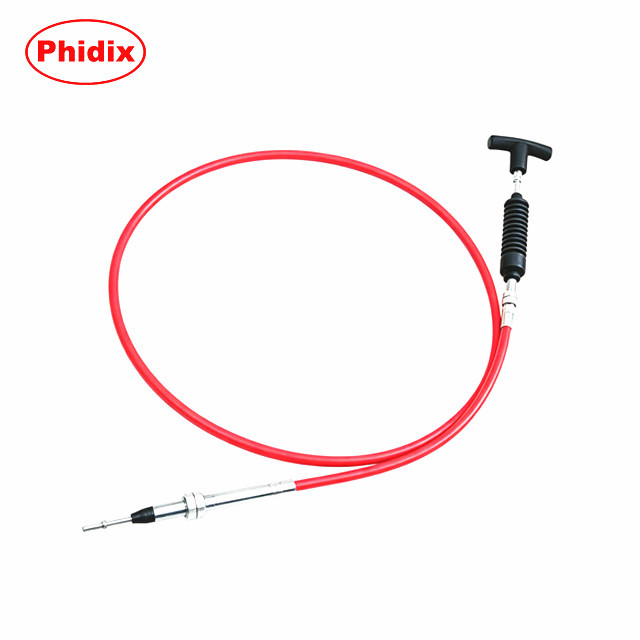

Push Pull Control Cable With T-Handle
The Phidix Push Pull Control Cable With T-Handle is a manual mechanical remote transmission assembly built for simple, reliable linear actuation. Featuring an easy‑grip T‑shaped handle at one end and threaded adjustable terminals on the output side, this cable assembly converts manual push‑pull force into linear movement for remote machine control.
The bright‑colored flexible outer conduit supports complex routing inside equipment. A rubber dust boot protects the handle joint from dust, moisture and debris. High‑strength multi‑strand steel inner cable delivers consistent force transmission with low friction. Designed for heavy‑duty outdoor and industrial environments, this cable offers stable manual operation for machinery where simple hand‑actuated remote control is required.
Applications
  • Construction machinery manual control systems
  • Agricultural equipment: harvesters, tillers, planters, feeders
  • Trucks, special‑purpose vehicles, off‑road equipment
  • Marine equipment, boat hatches, ventilation and throttle control
  • Industrial machinery, workshop equipment and automation accessories
  • Generator sets, power units and engine remote control
  • Emergency shut‑off, throttle adjustment and manual valve actuation
  • Forestry machinery and outdoor mobile working devices
Key Features
  • Ergonomic T‑handle for comfortable manual push‑pull operation
  • Flexible bright‑red outer conduit, easy for field inspection and wiring
  • Integrated dust‑proof rubber boot extends service life against dirt and splash
  • Adjustable threaded end fittings for convenient installation and fine‑tuning
  • High‑tensile multi‑strand steel inner cable for stable force transfer
  • Bulkhead threaded mounting with lock nuts for firm installation
  • Low‑friction internal structure ensures smooth hand feel
  • Resistant to vibration, abrasion and cyclic fatigue
  • Customizable length, stroke, terminals and conduit colour
  • Works for both push and pull operating conditions
Working Principle
The Push‑Pull Control Cable With T‑Handle transfers manual mechanical force via inner steel cable sliding inside the flexible outer conduit. When the operator pushes or pulls the T‑shaped handle, motion is transmitted by the inner cable to drive the connected target mechanism.
The outer conduit stays fixed on equipment via bulkhead threads, acting as a fixed guide for the moving inner wire. The rubber boot prevents contaminants from entering the cable joint. Threaded adjustable fittings allow technicians to fine‑tune stroke and position during assembly.
Product Image

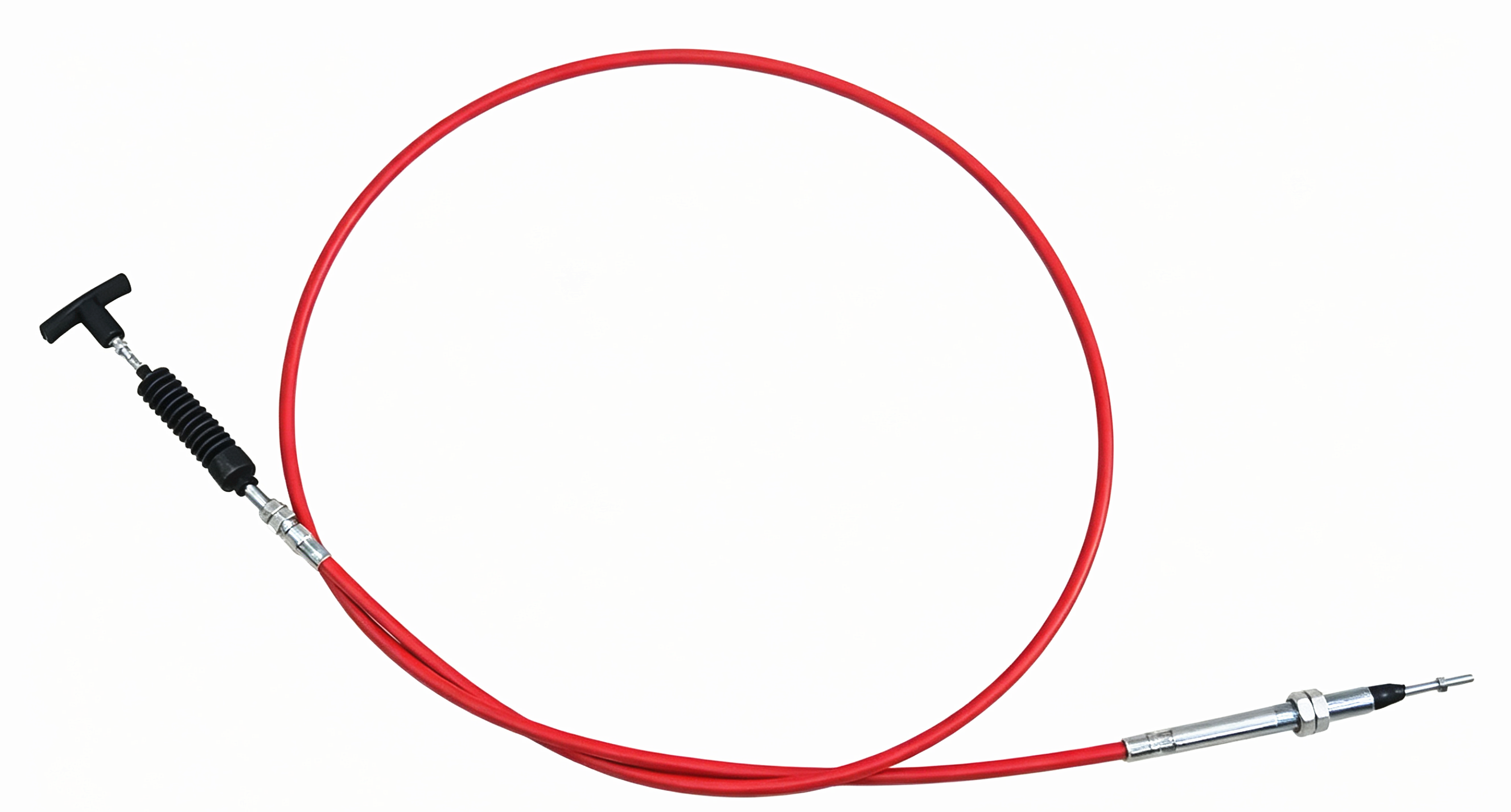

Push Pull Control Cable With T-Handle
