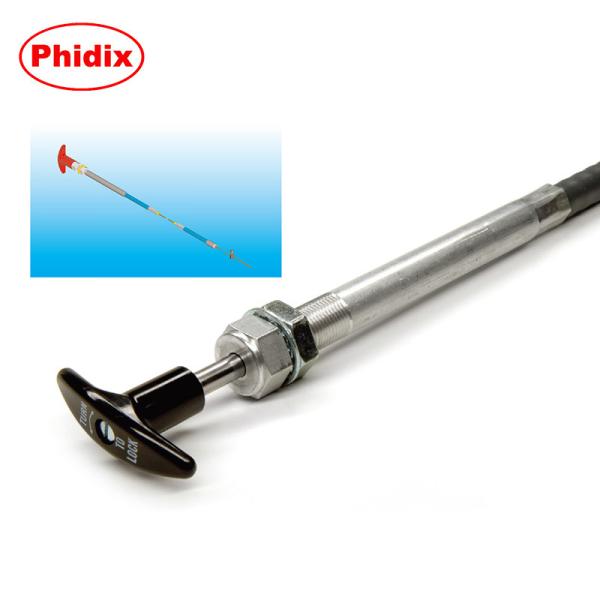

The Twist-Lock Cable End Fitting by Phidix is a precision-engineered control head designed to provide manual locking functionality for push-pull control systems. Used as a modular cable-end component, it ensures the operator can lock a mechanical setting in place via a secure quarter-turn T-handle—ideal for applications requiring vibration resistance, position security, and safety compliance.

As a standalone end fitting, this product is widely compatible with custom-built or replaceable cable assemblies, especially in PTO engagement, throttle control, and engine shut-off mechanisms across industrial, automotive, marine, and off-road sectors.

Key Features

• Quarter-Turn Locking: Securely locks cable position against vibration and operator disturbance.

• Threaded Panel Mount: Allows easy installation on control panels or brackets.

• Robust Construction: Carbon steel housing with optional plating for corrosion resistance.

• T-Handle Interface: Ergonomic grip with mechanical feedback for locking confirmation.

• Color Variants Available: Optional black or red handles for function differentiation (e.g. stop, choke, PTO).

• Versatile Cable Compatibility: Can be used with standard or custom push-pull cable cores.

Looking for complete cable assemblies? Visit our Twist-Lock Cable Assembly Main Page

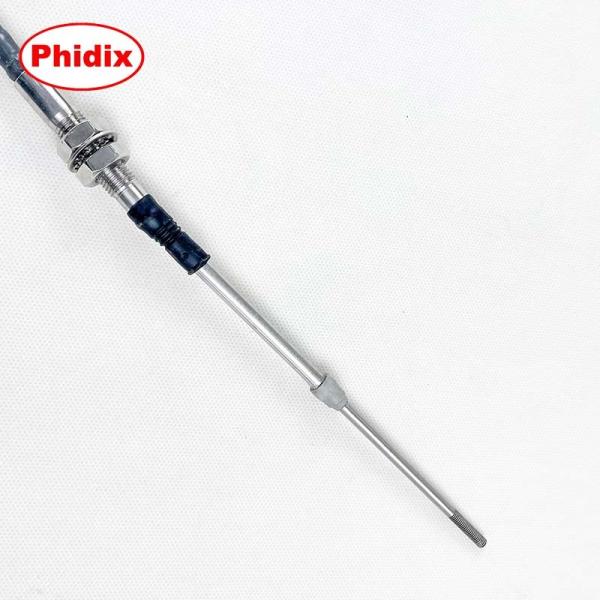

Output End Options

To adapt to various mechanical linkages, Phidix Twist-Lock cable heads support the following output end types:

Custom output end configurations available upon request.

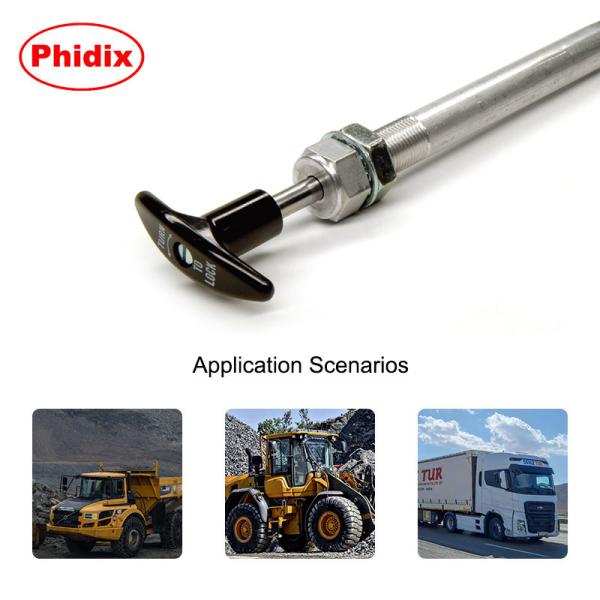

Typical Applications

This Twist-Lock cable head is designed for systems where manual locking, operator control, and vibration resistance are critical. Use cases include:

• Throttle lock for diesel and gasoline engines

• Choke cable for marine vessels or cold start

• PTO engagement/disengagement on tractors or utility vehicles

• Fuel shut-off and emergency stop cables

• Manual valve actuation in industrial equipment

Also available as a replacement part for existing cable systems.

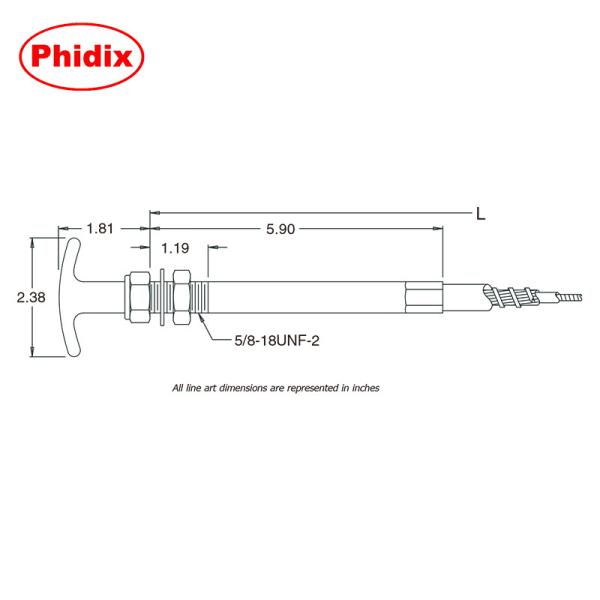

Engineering Specification

• Handle Style: T-handle, twist-to-lock

• Housing Material: Plated or uncoated carbon steel (customizable)

• Mount Type: Threaded nut front-mount

• Compatible Cable Size: 0.090–0.125 inch core (standard); others available

• Operating Temp Range: -20°C to +120°C

• Locking Load Capacity: ≥ 100 lbs static hold (varies by core & mount)

Integration & Replacement

This Twist-Lock control head can be used in:

• New cable assemblies as an OEM-selected end fitting

• Retrofit replacement of worn or non-locking cable heads

• Custom throttle/choke builds in industrial engine control systems

Phidix can supply:

• Just the end head

• End head + inner cable

• Full assembly including casing, inner core, and terminations

Explore more on Twist-Lock Cable Head Design Details
