Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Industrial Mechanical Control Cable Assembly Pull - Only Tension Gear Change Cables
Specifications
Brand Name :
Phidix
Model Number :
Pull-Only Tension
Certification :
IATF16949
Place of Origin :
Shang Hai
MOQ :
10 piece
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
800 pcs per month
Delivery Time :
7 - 40 work days
Packaging Details :
carton or wood case
Series :
pull only Industrial Control Cable Assembly
Applications :
Throttle control,Blade engagement,Choke,Latch release,Window release,Seat release
Transmission direction :
pull only unidirectional
Suggested End Fittings :
Rod Ends,Clevises,Threaded End Fittings
OEM :
Yes
Description

Pull-Only Control Cables for Gear Change and Mechanical Switching Systems

In mechanical systems that require discrete gear shifting, mode switching, or locking actuation, Phidix’s Pull-Only Tension Cables offer a lightweight, reliable, and customizable alternative to rigid rods or linkage bars. These cables are particularly suited for lever-operated or panel-actuated controls that require precise one-way pull motion to trigger mechanical engagement.


Applications in Gear or Mode Control

Phidix gear change cables are commonly used in systems where a lever, knob, or pedal is pulled to:

• Shift between gears or ranges
• Engage or disengage mechanical locks
• Change operation modes (e.g., high/low torque, directional shift)
• Trigger clutches or mechanical brakes in small equipment
Examples include:
• Agricultural machinery with manual range control
• Riding mowers or compact construction tools
• Trailer systems requiring discrete mode selection
• Industrial equipment with gear-lever actuation panels

Why Pull-Only Works Best

Feature Benefit
One-way motion Reliable trigger with low backlash
Flexible routing No need for direct line-of-sight like rods
Lightweight construction Ideal for compact, mobile, or space-constrained systems
Customizable ends Threaded or grooved for levers, knobs, clevises
Field-serviceable Easy to remove, reroute, or adjust in use

These cables allow gear-type movements without heavy linkage hardware, and can be tailored to your mounting position, stroke, and control interface.

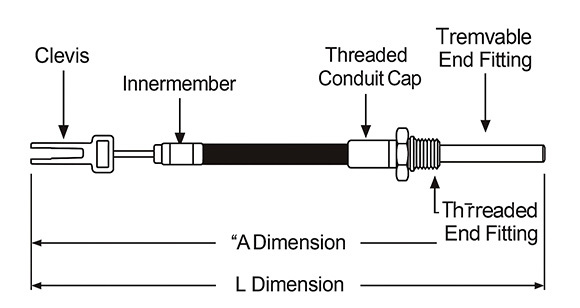

Matching Fitting Combinations

Depending on your control hardware, the following end combinations are typically used:

End A End B Gear Control Use
Threaded Grooved Panel switch to lever arm
Grooved Grooved Knob to gearbox cam release
Threaded Threaded Through-panel knob to lockout bracket

See End Fitting Dimensions →


Related Pages

• Tension Cable Overview

• Specification Guide

• Cable Customization Options


Talk to Us About Your Gear Switching Requirements

Let us know the mounting setup, travel length, and control direction—we’ll configure the right pull-only gear actuation cable for your system.


Contact Phidix
