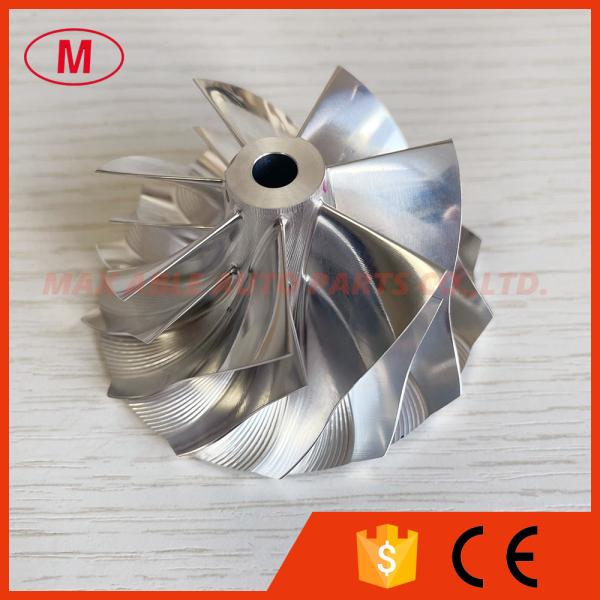

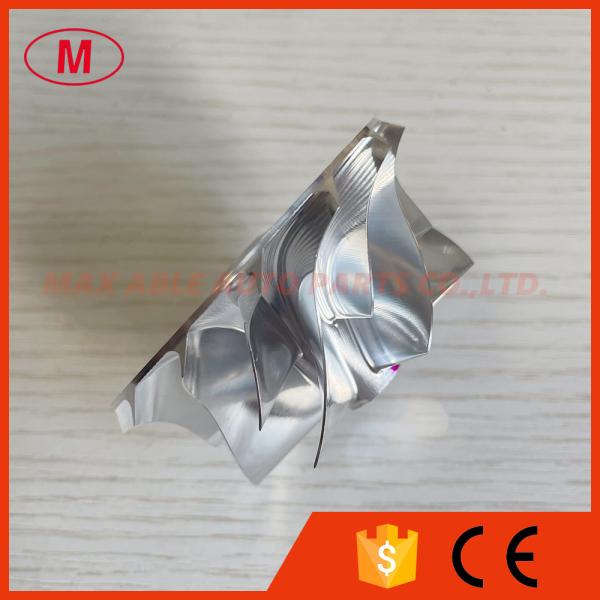

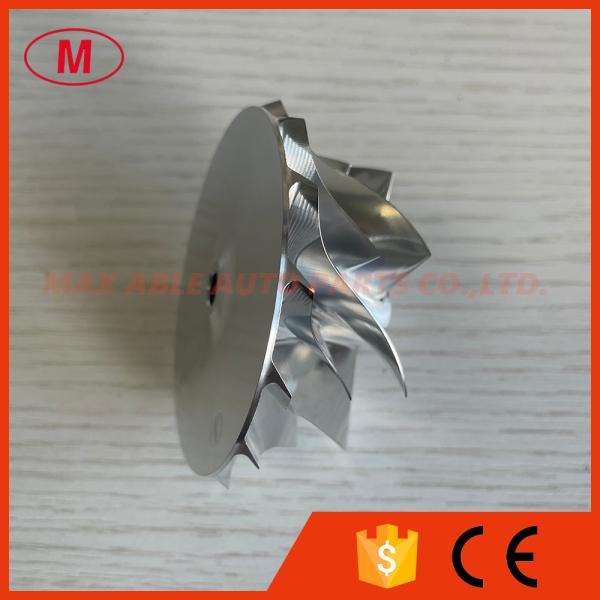

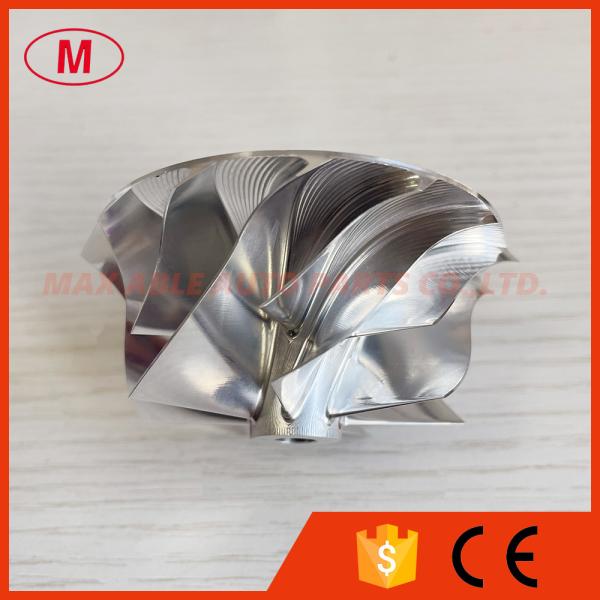

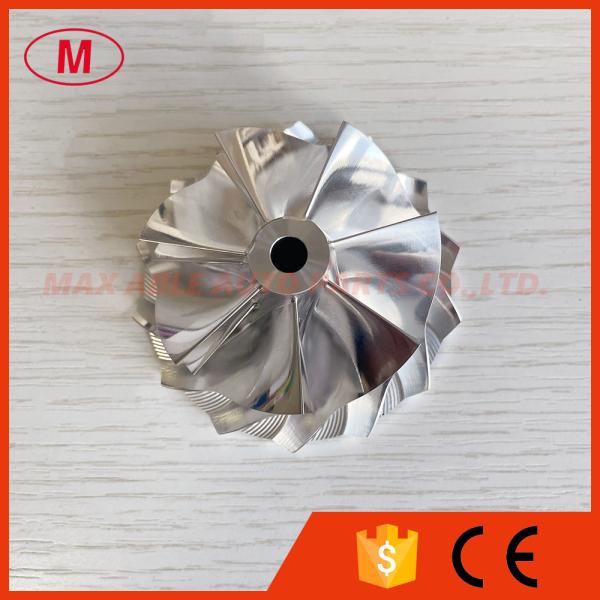

RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel
Specifications
Brand Name :
no
Model Number :
RHF5
Place of Origin :
China
MOQ :
1PC
Payment Terms :
TT,western union ,paypal
Supply Ability :
1000pcs
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Description
1. MODEL:RHF5 reverse
2.RHF5 reverse 7+7blades 52.00/63.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:13.50mm
Inducer:52.00mm
exducer:63.00mm
Tapered tio exducer:67.04mm
Tip height:4.50mm
Superback:1.00mm
bore size :6.10mm
Bore type:through
Overall height:31.50mm
Cutback:3.0mm
Trailing Angle:45 degree
Blade height:28.00mm
Sp Height angle:-5.00
Splitter height:18.00mm
7+7 blades
reverse rotation
It is for custom size ,please check carefully before buying.
Tapered tip Angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719
