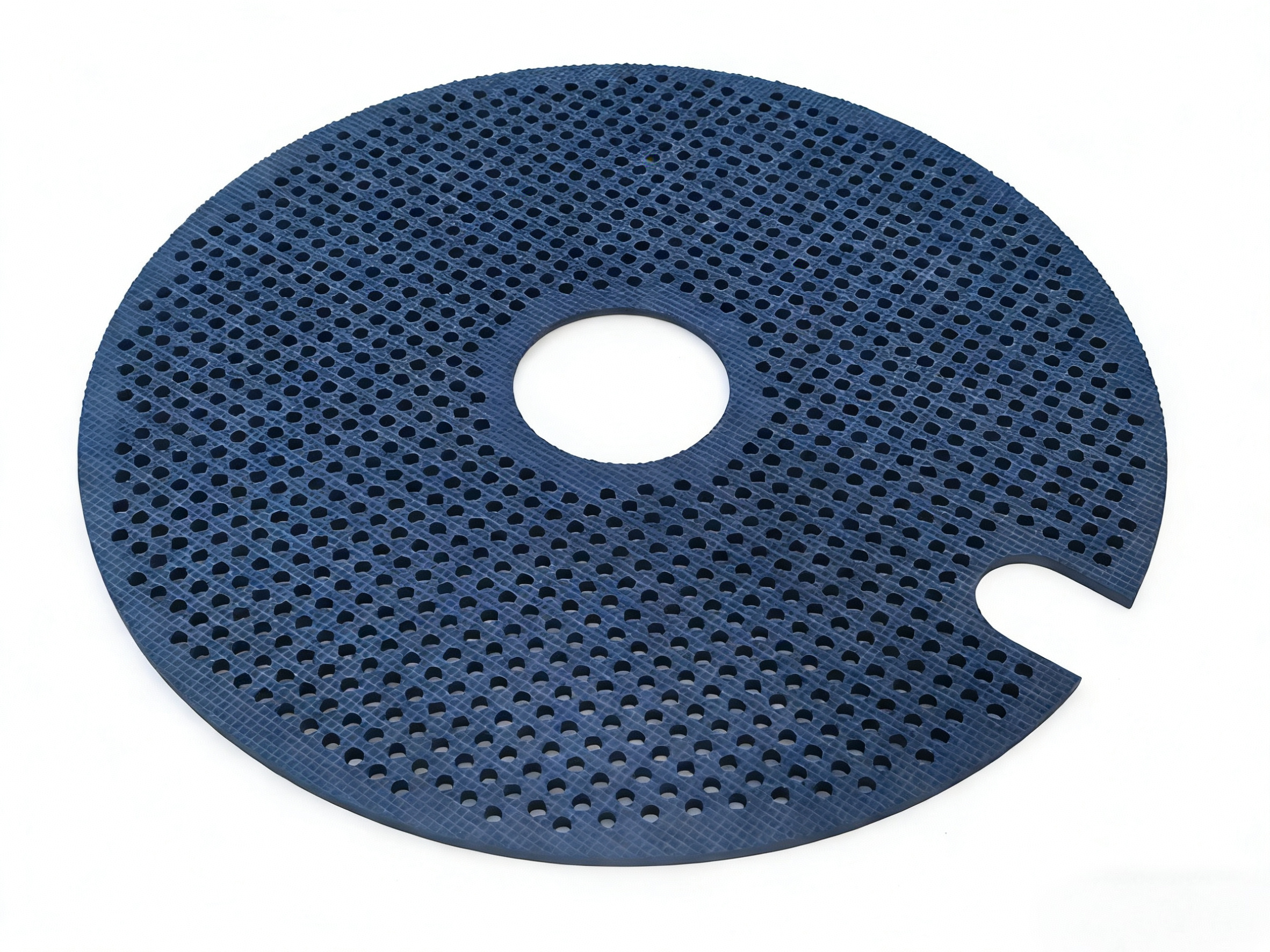

Semiconductor Grade Graphite Disc Index Of Isostatic Graphite Disk
Semiconductor Grade Graphite Disc Index Of Isostatic Graphite Disk
Specifications
Discharge Way :
automatic
Place of Origin :
China
Brand Name :
Fangda
Certification :
Iso9001
MOQ :
1 piece
Packaging Details :
Plywood case
Carbon Content :
99.9-99.99 %
Electric Resistance :
8-14 uΩ.m
color :
black
Purity :
High (typically >99% carbon)
Key Words :
Graphite part
Material :
isostatic graphite
Shore Hardness :
65 HSD
Applications :
Vacuum furnaceSintering process Heat treatment
Surface Finish :
Smooth
Reclaiming Capacity :
560l
Shape :
solid block
Density :
1.75 - 1.90 g/cm³
Oem :
Yes
Port :
Qingdao, Shanghai, Tianjin, Guangzhou
Chemical Composition :
Carbon
Description
Index of Isostatic Graphite
Graphite disc Index of Isostatic Graphite
Material Specifications
Grade Bulk Density (g/cm³) Electric Resistivity (μΩ*m) Compressive Strength (MPa) Flexural Strength (MPa) Shore Hardness Ash Content (ppm) Purified Ash Content (ppm) Coefficient of Thermal Expansion (*10⁻⁶/°C) Thermal Conductivity (W/m*K) Young's Modulus (GPa) Applications
CDI-1A 1.85 10-13 90 45 60 300 50 5 133 11.5 Semiconductor, Heat Zone in PV Industry, Ceramic Sintering, Vacuum Furnace
CDI-1B 1.8 10-13 86 40 55 300 50 5.4 121 10 Semiconductor, Heat Zone in PV Industry, Ceramic Sintering, Vacuum Furnace
CDI-1C 1.82 11-15 100 48 58 300 50 5.6 120 10.6 Semiconductor, Heat Zone in PV Industry, Ceramic Sintering, Vacuum Furnace
CDI-1D 1.75 12-16 80 40 58 300 50 5.8 108 10 Semiconductor, Heat Zone in PV Industry, Ceramic Sintering, Vacuum Furnace
CDI-4S 1.8 12.5 80 37 55 300 50 5.5 121 11.5 Electric Parts Sintering, Carbide Sintering, Vacuum Furnace, Diamond Sintering, Precious Metal Smelting
CDI-5L 1.85 11.5 95 50 62 300 50 5 130 11.5 Continuous Casting for Brass and Bronze, Precious Metal Smelting
CDI-8L 1.8 11 86 40 55 300 50 5.3 120 11.5 Continuous Casting for Bronze and Cast Iron, Precious Metal Smelting
CDI-9L 1.88 9 80 43 45 300 50 3.6 160 11 High Purification Requirements in Casting for Pure Copper and Copper-Nickel
EDM-10 1.86 12 110 52 66 300 50 6 100 10.5 EDM Precision Machining Molds
EDM-80 1.75 13 100 50 65 300 50 6 100 9 EDM Precision Machining Molds
EDM-60 1.88 11 140 70 66 300 50 5.7 100 11 EDM Precision Machining Molds
M32 1.85 14 150 80 80 -- -- 5.8 -- 12 High-precision electrode, 3D curved glass molds of mobile phone
M33 1.72 18 120 65 78 -- -- 6 -- 10.5 High-precision electrode, 3D curved glass molds of mobile phone
CDI-2G 1.8 12 80 40 55 -- 5 4.5 121 10 Optical Fiber Industry
CDI-3G 1.85 12 90 45 60 -- 5 5.2 133 11.5 Optical Fiber Industry
CDI-4G 1.85 12 102 48 65 -- 5 4.8 116 12.2 Optical Fiber Industry
CDI-S1 1.8 12.5 90 45 58 -- 5 4.5 105 10 Semiconductor
CDI-S20 1.8 10 75 43 50 -- 5 4.3 140 9 Semiconductor
CDI-S3 1.78 11 85 40 45 -- 5 3.8 120 10 Semiconductor
1. The above applications are only for reference. Various specifications and properties of isostatic graphite can be produced according to customers' requirements.
2. The above values are representative characteristics, not guaranteed values.
3. Standard size is nominal dimension.
