Special Industries Graphite Parts Black Components Of Graphite
Special Industries Graphite Parts Black Components Of Graphite
Specifications
color :
black
Place of Origin :
China
Brand Name :
Fangda
Certification :
Iso9001
MOQ :
1 piece
Packaging Details :
Plywood case
Shape :
solid block
Material :
isostatic graphite
Description

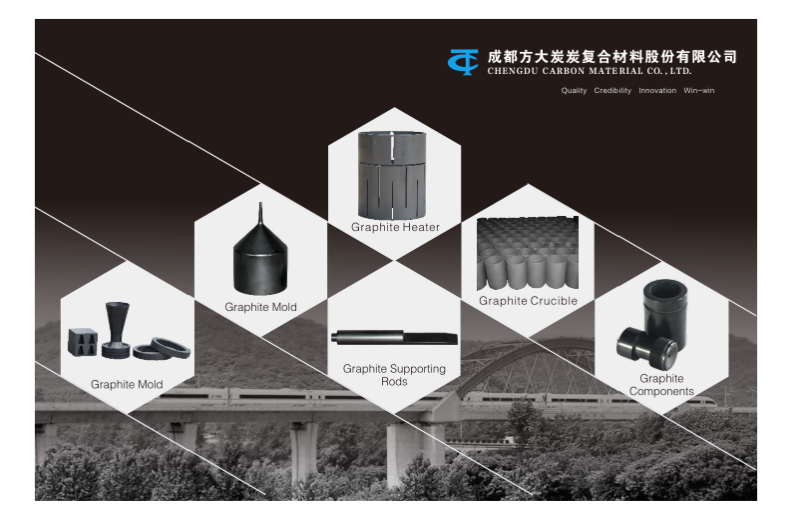

Specialized Industrial Graphite Solution
Applications & Uses
  • Graphite crucible liners for electron beam evaporation (EBE) systems
  • Graphite sliding rails and contact point materials for Light Rail Transit systems
  • High purity isostatic graphite heaters, electrodes, crucibles, molds, and plates for laser crystal research and production
  • Lubricating components for automotive, household appliances, and mechanical seal applications
  • Electrical conducting materials for the electrical industry
Technical Specifications
Grade Bulk Density (g/cm³) Electric Resistivity (μΩ·m) Compressive Strength (MPa) Flexural Strength (MPa) Shore Hardness Ash Content (ppm) Purified Ash: Graphitization (ppm) Purified Ash: Product (ppm) Coefficient of Thermal Expansion (*10⁻⁶/°C) Thermal Conductivity W/(m·K) Young's Modulus (GPa) Applications
CDI-1A 1.85 10-13 90 45 60 300 50 5 5.5 133 11.5 Semiconductor, Heat zone in PV Industry, Ceramic Sintering, Vacuum furnace
CDI-1B 1.8 10-13 86 40 55 300 50 5 5.4 121 10 Semiconductor, Heat zone in PV Industry, Ceramic Sintering, Vacuum furnace
CDI-4S 1.8 12.5 80 37 55 300 50 5 5.5 121 11.5 Electric Parts Sintering, Carbide Sintering, Vacuum Furnace, Diamond Sintering, Precious Metal Smelting, Seals
