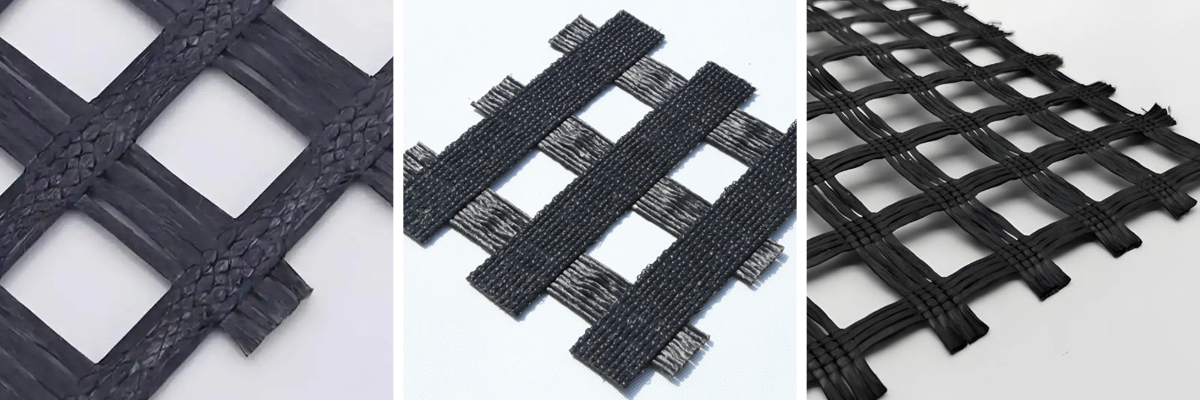

Warp Knitted PET Geogrid

1. Product Overview

What it is

Warp knitted PET geogrid is a high-performance geosynthetic reinforcement material, made of high-tenacity polyester filament yarn, warp-knitted into a stable grid structure, then coated with PVC or bitumen for anti-aging and anti-corrosion protection. It features fixed junction strength, no creep under long-term soil load.

How it is manufactured

High strength PET filament is arranged in warp and weft directions. The warp knitting machine binds warp and weft yarns together by continuous looping, forming integrated grid nodes. Afterwards, the grid substrate is coated with PVC or modified bitumen to improve resistance against alkali, acid, moisture and ultraviolet.

What it is used for

Mainly used for soil reinforcement, foundation stabilization, slope protection, road & pavement reinforcement, embankment construction to distribute load, reduce settlement and prevent cracking.

​

2. Difference between warp knitted PET geogrid and ordinary geogrids

1. Junction strength: Warp knitted grid has integral knitted nodes; yarns cannot slide at intersections. Ordinary woven geogrid has yarns simply interlaced, easy to slip under tension.

2. Creep performance: PET filament has low long-term creep, suitable for permanent engineering. PP geogrid suffers obvious creep under sustained load.

3. Elongation: Warp knitted PET geogrid breaks at low elongation (~10–25%). Ordinary woven PP geogrid has high elongation, large deformation under load.

4. Coating: PET grid adopts PVC/bitumen coating for chemical resistance. Many cheap geogrids have no protective coating.

5. Load transfer: Stable grid aperture locks soil/aggregate better, higher interlocking effect than extruded plastic geogrid.

3. Key Performance

- High tensile strength at low elongation

- Excellent anti-creep property for long-term static load

- Good resistance to acid, alkali, salt and soil chemical corrosion

- High junction strength, no node separation under tension

- Good compatibility with soil, aggregate and asphalt mixture

- Flexible, easy cutting and onsite installation

- Bitumen/PVC coating improves UV resistance and anti-aging

- Stable dimension under temperature variation

4. Technical Specifications

> Common standard range for reference

5. Application Fields

- Highway & municipal road subgrade reinforcement, old road reconstruction

- Expressway, railway embankment stabilization, soft ground treatment

- Airport runway, parking lot, port yard foundation

- Slope stabilization, retaining wall reinforced earth project

- Asphalt pavement anti-cracking layer, bridge deck reinforcement

- Landfill lining, tailing pond, hydraulic engineering
