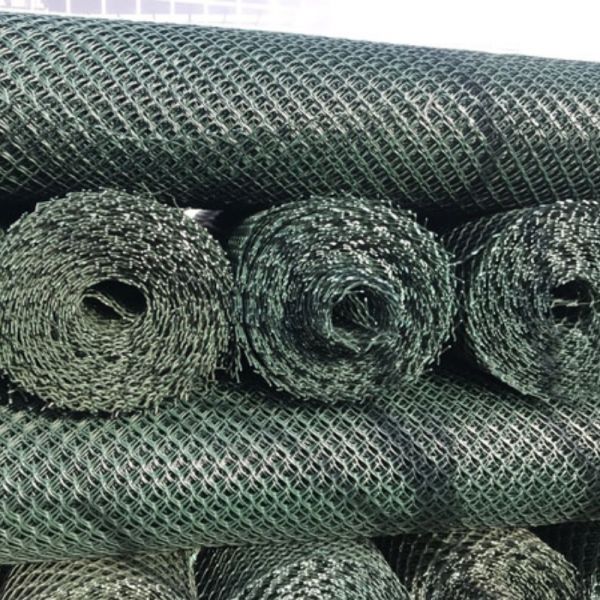

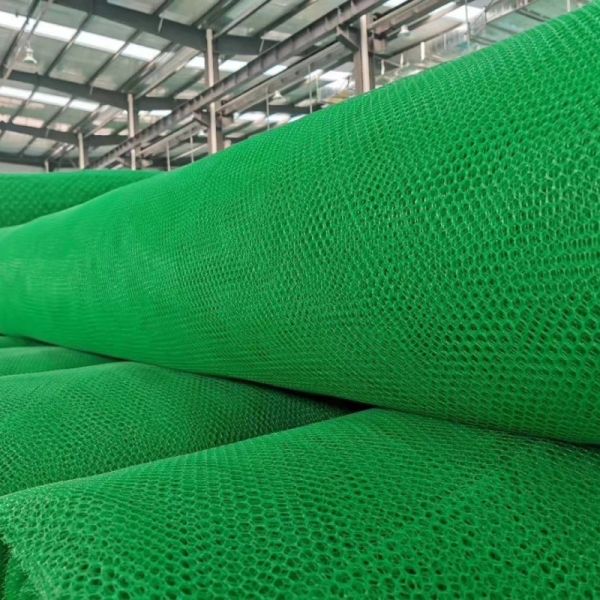

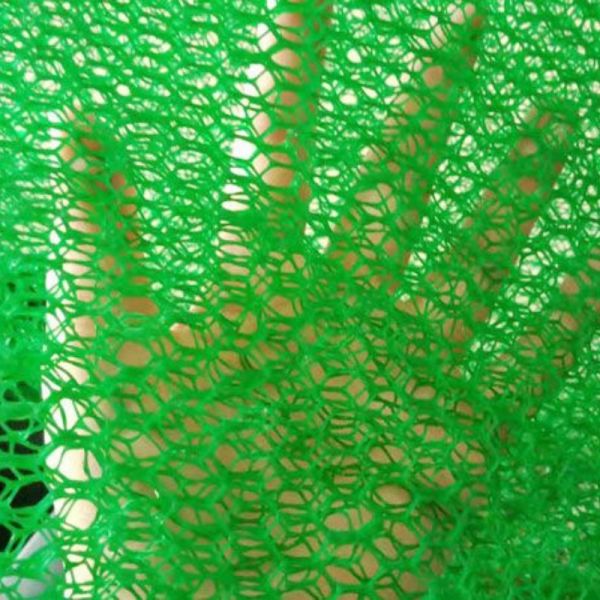

High Drainage Capacity 3D Composite Drainage Geonet for Landfill Roadbed and Tunnel Engineering
High Drainage Capacity 3D Composite Drainage Geonet for Landfill Roadbed and Tunnel Engineering
High Drainage Capacity 3D Composite Drainage Geonet for Landfill Roadbed and Tunnel Engineering
High Drainage Capacity 3D Composite Drainage Geonet for Landfill Roadbed and Tunnel Engineering
High Drainage Capacity 3D Composite Drainage Geonet for Landfill Roadbed and Tunnel Engineering
High Drainage Capacity 3D Composite Drainage Geonet for Landfill Roadbed and Tunnel Engineering
Specifications
Structure :
Three Dimensional Core with Double Side Fabric
Place of Origin :
China
Function :
Filtration Drainage Protection
Product Name :
3D Composite Drainage Geonet
Tensile Strength :
High Strength
Payment Terms :
T/T
Material :
HDPE Geonet with Nonwoven Geotextile
Supply Ability :
9999999㎡/MONTH
Application :
Landfill Drainage System
MOQ :
1000pcs
Brand Name :
YPEP
Thickness :
Customizable
Delivery Time :
5 days
Other Name :
Composite Drainage Net
Packaging Details :
Woven fabric packaging
Description
Product Description

3D Composite Drainage Geonet is an advanced geosynthetic drainage material designed to provide efficient water flow, filtration, and protection in engineering applications. It combines a three dimensional HDPE geonet core with nonwoven geotextile bonded on both sides, forming a multifunctional drainage system.

This structure integrates filtration, drainage, and protection into one product. The geotextile layer prevents soil particles from entering the core, while the geonet ensures continuous water flow even under high compressive loads.

Compared with traditional sand and gravel drainage systems, this composite material significantly reduces installation time, material cost, and labor requirements. It also provides more consistent drainage performance and long term stability.

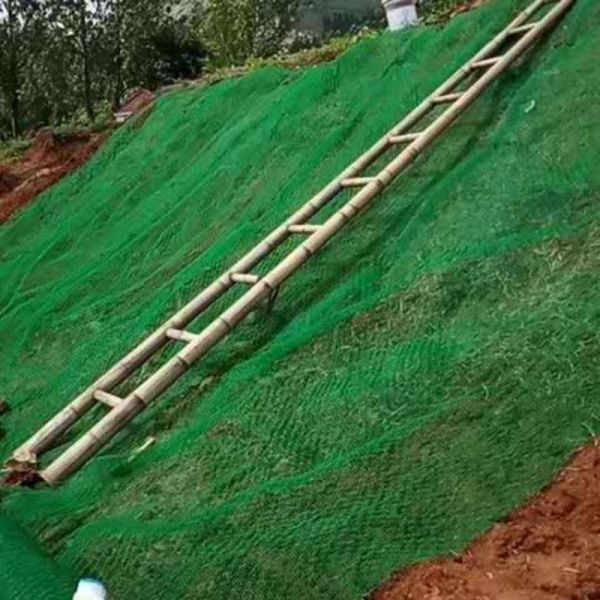

The unique 3D structure allows the product to maintain its thickness under heavy loads up to 3000 kPa, ensuring long lasting drainage capacity. It is widely used in landfill leachate collection systems, roadbed drainage, tunnel lining drainage, and slope protection projects.

Technical Specification
Property Unit Geonet Composite Geonet
Density g/cm³ ≥0.939 —
Carbon Black Content % 2 to 3 —
Tensile Strength MD KN/m ≥8.0 ≥16.0
Hydraulic Conductivity m²/s ≥3.0*10⁻³ ≥3.0*10⁻⁴
Peel Strength KN/m — ≥0.17
Geotextile Weight g/m² — ≥200
Compressive Resistance kPa ≥3000 ≥3000
Standard — CJT452 CJT452
High Drainage Capacity 3D Composite Drainage Geonet for Landfill Roadbed and Tunnel EngineeringHigh Drainage Capacity 3D Composite Drainage Geonet for Landfill Roadbed and Tunnel Engineering
Why Choose Us
  • Integrated filtration and drainage solution
  • High compressive strength for heavy load projects
  • Stable long term drainage performance
  • Custom production for engineering requirements
  • Experienced export supplier
FAQ

Q: Can it replace gravel drainage systems
A: Yes it provides equivalent or better performance with less cost.

Q: Is it suitable for landfill projects
A: Yes it is widely used in landfill leachate systems.

Q: Does it clog easily
A: No the geotextile layer prevents clogging effectively.
