3D Geo Textile Mat HDPE Vegetation Reinforcement Geogrid Mat
3D Geo Textile Mat HDPE Vegetation Reinforcement Geogrid Mat
3D Geo Textile Mat HDPE Vegetation Reinforcement Geogrid Mat
3D Geo Textile Mat HDPE Vegetation Reinforcement Geogrid Mat
3D Geo Textile Mat HDPE Vegetation Reinforcement Geogrid Mat
3D Geo Textile Mat HDPE Vegetation Reinforcement Geogrid Mat
Specifications
Other Name :
Erosion Control Mat
Thickness :
10 to 16 mm
Application :
Soil Stabilization
MOQ :
1000pcs
Packaging Details :

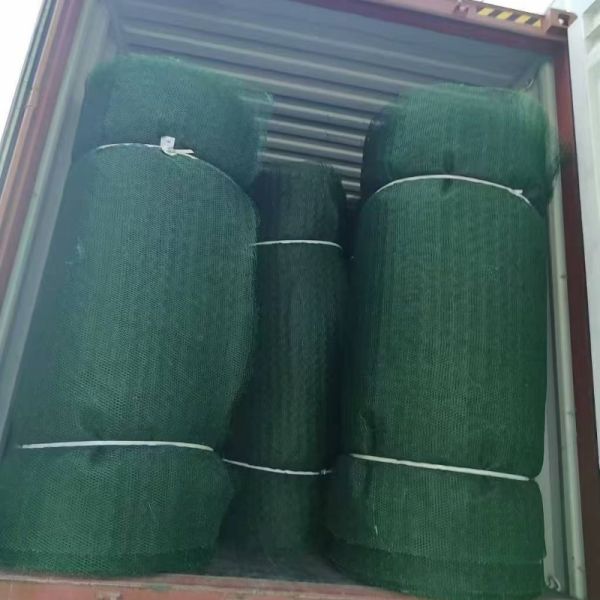

Woven fabric packaging
Color :
Black
Place of Origin :
China
Weight :
220 to 430 g m2
Product Name :
3D Geomat
Supply Ability :
9999999㎡/MONTH
Delivery Time :
5 days
Material :
HDPE
Structure :
Three Dimensional Network
Brand Name :
YPEP
Payment Terms :
T/T
Description
High Performance 3D Geomat for Soil Stabilization Slope Protection and Vegetation Reinforcement
Product Description

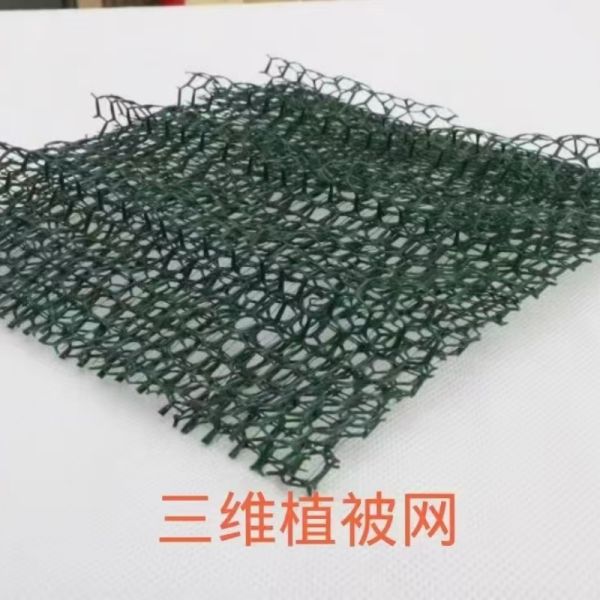

3D Geomat is a high performance geosynthetic material designed for slope stabilization and long term erosion control. Its three dimensional network creates a stable environment where soil particles can be retained and plant roots can grow effectively.

The open structure allows soil and seeds to fill the mat, creating a natural growth base. Once vegetation develops, the combination of roots and geomat forms a reinforced protective layer that significantly increases slope stability and resistance to erosion.

Compared to traditional slope protection methods, this product provides both structural reinforcement and ecological restoration. It reduces runoff velocity, enhances soil shear strength, and minimizes damage caused by rainfall.

This makes it an ideal choice for highways, railways, riverbanks, and environmental engineering projects.

Technical Specification
Parameter Unit Range
Material Type — HDPE
Thickness mm 10 12 14 16
Unit Weight g/m² 220 260 350 430
Tensile Strength KN/m 0.8 to 3.2
Void Ratio % ≥90
UV Resistance Hours ≥500
Roll Width m 1 to 4
Roll Length m 30 to 50
Temperature Resistance °C -30 to 70
3D Geo Textile Mat HDPE Vegetation Reinforcement Geogrid Mat
Why Choose Us
  • Reliable product performance
  • Stable manufacturing quality
  • Competitive export pricing
  • Flexible customization options
  • Fast delivery time
FAQ

Q: What is the main function of 3D Geomat
A: It stabilizes soil and supports vegetation growth.

Q: Is it suitable for long term use
A: Yes it provides durable slope protection.

Q: Can it be used in rainy areas
A: Yes it performs well under heavy rainfall.
