Specifications
Delivery Time :
5 DAYS
Brand Name :
YPEP
Packaging Details :
Woven fabric packaging
Payment Terms :
T/T
Place of Origin :
China
Supply Ability :
8,000,000m^2/Month
Certification :
ISO9001
MOQ :
1000pcs
Description
Product Description

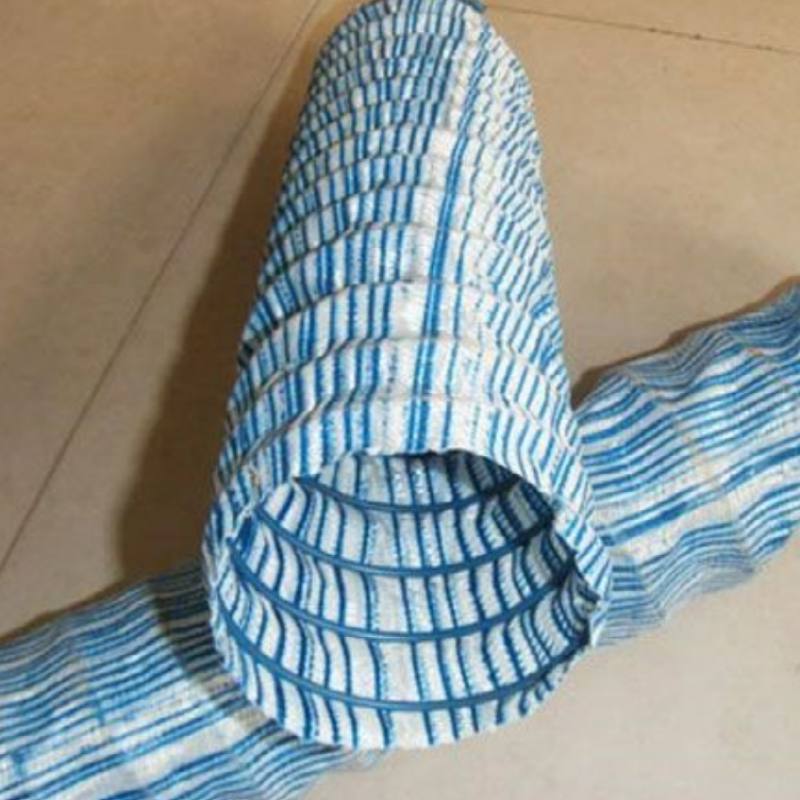

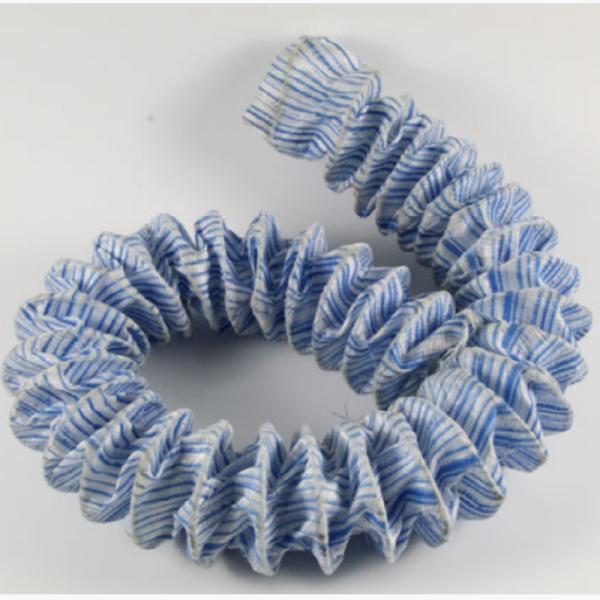

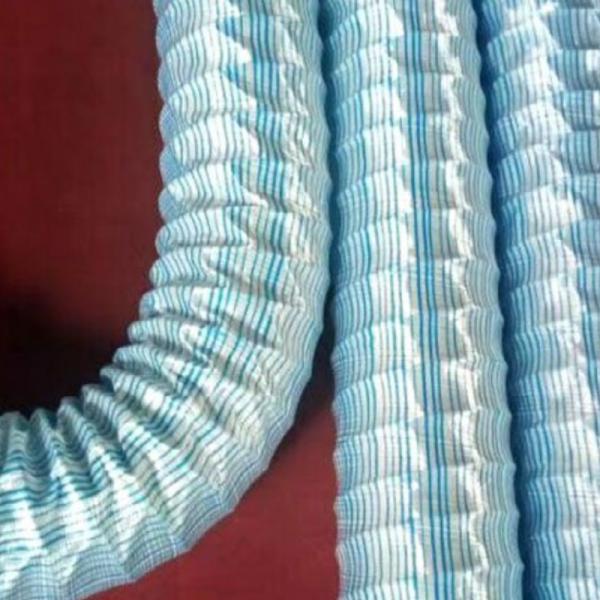

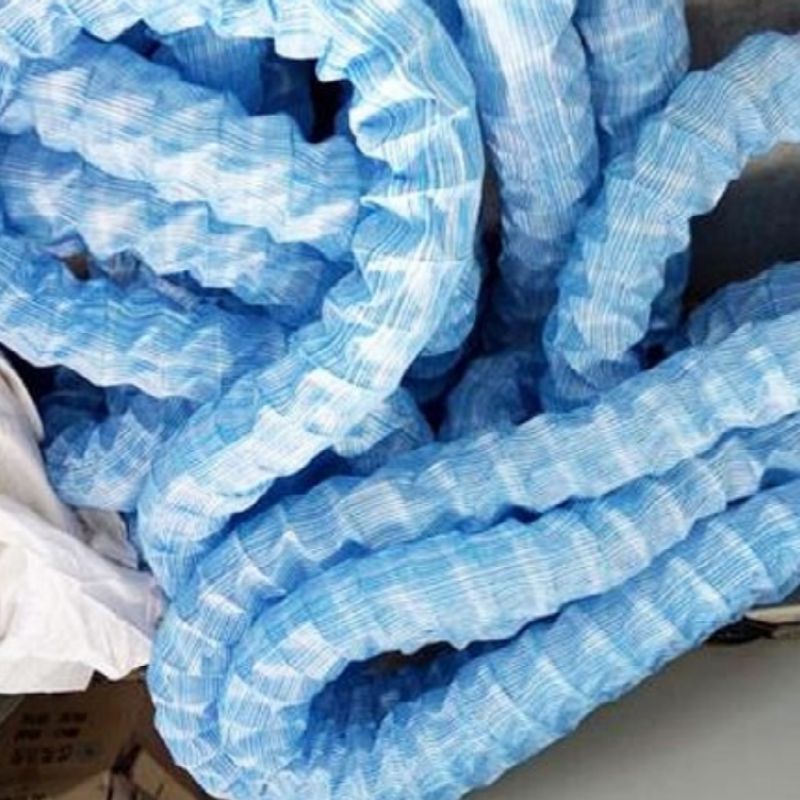

The flexible permeable pipe is a high pressure resistant soft structure formed by the rust-proof spring coil supporting the pipe body. The inner lining of the non-woven fabric is filtered to prevent sediment impurities from entering the pipe, thereby achieving the effect of net water penetration. The outer covering layer of polypropylene filament and the spring steel ring tube body are organically integrated, which has a good all-round water permeability function. The permeated wa- ter can penetrate into the pipe smoothly, and the sediment impurities are blocked outside the pipe, so as to achieve the purpose of water permeation, filtration and drainage.

Product Features
  1. Pore diameter is small, good omnidirectional water permeability.
  2. High tensile and compressive strength and long service life.
  3. Good corrosion resistance and bio-erosion resistance.
  4. Good overall continuity, and convenient to connect with fewerjoints.
  5. Lightweight and convenient for construction.
  6. Soft texture, and good binding with soil.
Product Application
  1. Discharge infiltration water, reduce the infiltration line, strengthen the soft soil layer, and strengthen the soil to prevent collapse.
  2. Drainage of airports, railways, highways, sports fields, and parks.
  3. Drainage system of mine tail dam, ash dam of thermal power plant, landfill plant and etc.
  4. Drainage inside tunnel wall, back of retaining wall, subgrade, pavement and slope.
Flexible Permeable Hose
Specification FH50 FN80 FH100 FH150 FH200 FH250 FH300
Allowable Deviation Of Outer Diameter ±2.0 ±2.5 ±3.0 ±3.5 ±4.0 ±6.0 ±8.0
Filter Cloth Performance
Item Performance Index
FH50 FH80 FH100 FH150 FH200 FH250 FH300
Tensile Strength MD, KN/5cm, ≥ 1
Elongation MD, %, ≥ 12
Tensile Strength CMD, KN/5cm, ≥ 0.8
Elongation CMD, %, ≥ 12
Ball Bursting Strength, KN, ≥ 1.1
CBR Bursting Strength, KN, ≥ 2.8
Permeability Coefficient K20, cm/s, ≥ 0.1
Equivalent Aperture O95, mm 0.06~0.25
Note: Only one is required of the ball bursting strength test and CBR bursting strength test . Due to the small filter cloth area, FH50 should use the ball bursting strength test; FH80 and above are recommended to use CBR bursting strength test .
Withstand Flat Rate (N/M)
Specification FH50 FH80 FH100 FH150 FH200 FH250 FH300
Withstand Flat Rate 1%, ≥ 400 720 1600 3120 4000 4800 5600
2%, ≥ 720 1600 3120 4000 4800 5600 6400
3%, ≥ 1480 3120 4800 6400 6800 7200 7600
4%, ≥ 2640 4800 6000 7200 8400 8800 9600
5%, ≥ 4400 6000 7200 8000 9200 10400 12000

Flexible Permeable PipeHigh Penetration Capacity, Filters Out Debris For Efficient Water Drainage In Farm Fields, Stormwater, And Flooding AreasFlexible Permeable PipeHigh Penetration Capacity, Filters Out Debris For Efficient Water Drainage In Farm Fields, Stormwater, And Flooding AreasFlexible Permeable PipeHigh Penetration Capacity, Filters Out Debris For Efficient Water Drainage In Farm Fields, Stormwater, And Flooding Areas
