Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Automatic Nut Feeder for Spot Welding with M5-M12 Compatibility 220V/50Hz Power and 0.5MPa Air Source
Specifications
Brand Name :
BLM
Model Number :
standard or customized
Certification :
ISO 9001
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
USD2000-3000.-/set
Payment Terms :
T/T
Supply Ability :
300 sets/ month
Delivery Time :
7~45days
Packaging Details :
wooden case
Type :
Automatic Nut Feeder for Spot Welding Machine
Voltage :
110-380V
MOQ :
1 SET
Applicaiton :
spot welding
Used For :
automatic transfer of nuts
Condition :
Brand New
Warranty :
12 months after shipment
Advantages :
Automatic type
Inspection report :
Yes
Customization :
Yes
Description

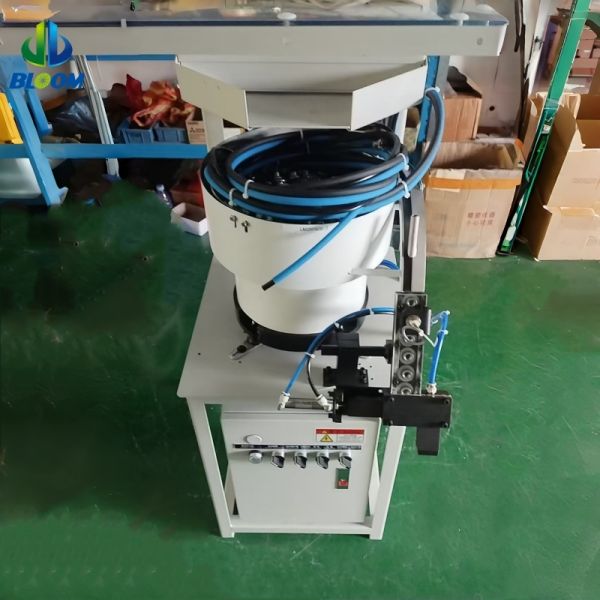

This nut spot welder is equipped with a conveying system compatible with M5-M12 standard and non-standard nuts. Utilizing electromagnetic adsorption/slide-rod conveying combined with vibration-based anti-reverse screening, it achieves PLC-controlled pneumatic transfer (5-45 nuts/minute, ≥98% accuracy). The device supports both standalone and linked operation modes, and features centralized multi-machine control. When synchronized with the welder, it enables a fully automated "start-feed-weld" process. Characterized by precision, high efficiency, reverse-proof screening, low energy consumption, and stable performance, it is compatible with mature techniques from both Western and Asian markets. Operating on 220V/50Hz power (80W) and a 0.5MPa air source, it significantly enhances nut welding efficiency in the automotive and hardware industries.



Name Automatic Nut Feeder /Vibratory Bowl Feeder
Material Aluminum(AL7075), Stainless Steel(SUS304)
Condition Brand new
Power
AC220V

Frequency

50 / 60Hz

Air pressure

0.4 ~ 0.7Mpa

Feeding capacity

30 ~ 50 pieces/min

Feeding source distance

200mm


Applicable nut size


M5–M12 (each nuts feeder can transfer one kind nut)


Nut capacity


Approximately 2000 pieces , including storage silo


Total weight:


80kg

Original

China

Package

Wooden case

Package size

150X150X120 cm


Vibrating Bowl Feeders are the most common devices used to feed individual parts in Industrial Assembly Automation Applications.They are utilized in many industries including automotive, electronic, food, Fast Moving Consumable Goods (FMCG), packaging and metal working industries. It also serves other industries such as glass, foundry, steel, construction, recycling, pulp and paper, and plastics.
