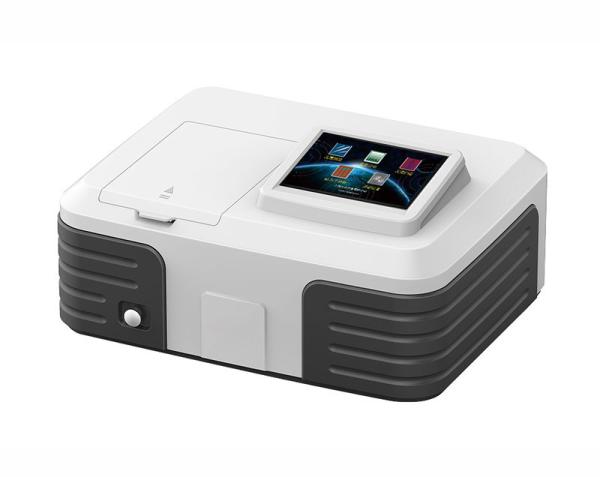

V-6000T 2nm Spectroscopy System , UV VIS Spectrophotometer With USB Output
V-6000T 2nm Spectroscopy System , UV VIS Spectrophotometer With USB Output
V-6000T 2nm Spectroscopy System , UV VIS Spectrophotometer With USB Output
V-6000T 2nm Spectroscopy System , UV VIS Spectrophotometer With USB Output
Specifications
Brand Name :
Quenda
Model Number :
V-6000T
Certification :
CE,ISO
Place of Origin :
QINGDAO,CHINA
MOQ :
1set
Price :
USD1000-20000
Payment Terms :
T/T
Supply Ability :
200set per month
Delivery Time :
3-7days
Packaging Details :
Carton
Wavelength Range :
190-1100nm
Spectral Bandwidth :
2nm
Stray light :
0.05% T @ 220 nm, 360 nm
Noise :
±0.0005A
Data Output Port :
USB
Detector :
Silicon Photodiode
Description

V-6000T UV / VIS Spectrophotometer Spectroscopy System With With A 6 Inches Large LCD Display

Profile

UV-6000 equips with a 6 inches large LCD display , it is an ideal and advanced analytical instrument for laboratory to realize Wavelength Scanning.Kinetics , Multi-wavelengh test , etc . All functions can be realized with the advanced stand-alone system , all data and graphs can be shown on device.

UV/VIS Spectrophotometer Technology advantage

◆ 800*480 large touch screen clearly shows test results and graphs.

◆ Powerful data analysis system with internal computer host could realize multi functions independently.

Like establishing calibration curve, photometric measurement, quantitative measurement, spectral scanning,

dynamics, DNA/Protein test, multi-wavelength analysis and data printing.

◆ Optical system adopts suspension design. All optical parts are independently fixed on the 8mm thick aluminum
deformation-free base to avoid the impact of bottom plate deformation and outside vibration on optical system.
This premium design greatly improved the stability and reliability of the instrument.

◆ Convenient data storage and printing function. UV-6000T can be directly connected to the printer for A4 format data and graph printing.

◆ Automatic power on self test and system positioning function could inspect and calibrate the deviation before every use.

◆ All test data and analysis report can be exported to USB disk directly.

UV/VIS Spectroscopy System ​Technical Parameter

Model UV-6000T
Wavelength Range 190-1100nm
The spectral bandwidth 2nm
Wavelength Accuracy ±0.5nm
Stray light 0.05% T @ 220 nm, 360 nm
Wavelength Repeatability ≤0.1nm
Photometric Accuracy

士0.2%T(0-100%T)

±0.002Abs(0-0.5Abs)

±0.004Abs(0.5-1.0Abs)
Photometric Repeatability

≤0.1%T(0-100%T)

0.001Abs(0-0.5Abs)

0.002Abs(0.5-1.0Abs)
Stability 士0.001A/h@500nm
Photometric Range 0-200%T, -0.3-3.0A, 0-9999C
Baseline flatness 士0.001A
Noise ±0.0005A
Display 800*480 touch screen
Data Output Port USB
Print Port USB Port
Light source Tungsten Lamp & Deuterium Lamp
Power Requirements AC 220V/50Hz or AC 110v/60Hz
Detector Silicon Photodiode
Dimension 460*380*180mm
Weight 20KG

Standard Accessories

Item Description Quantity Unit
1 Spectrophotometer 1 set
2 1cm Glass cuvette 4 pcs
3 Power cord 1 pcs
4 User’s Manual 1 pcs
5 1 cm quartz cuvette 2 pcs
6 Dust Cover 1 pcs

Authentication

V-6000T 2nm Spectroscopy System , UV VIS Spectrophotometer With USB Output

Exhibition

V-6000T 2nm Spectroscopy System , UV VIS Spectrophotometer With USB Output

Instrument commissioning and training

V-6000T 2nm Spectroscopy System , UV VIS Spectrophotometer With USB Output

Customer visit

V-6000T 2nm Spectroscopy System , UV VIS Spectrophotometer With USB Output
