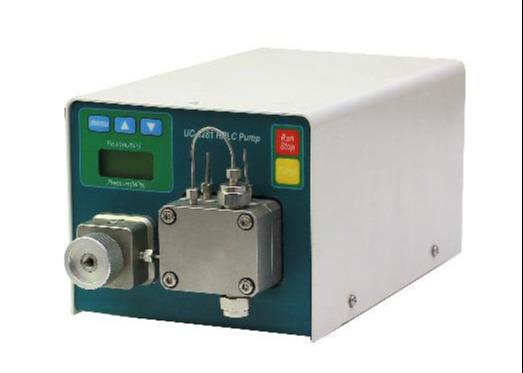

Push Button Miniature High Pressure Infusion Pump Ion Chromatographiy/HPLC Pump

Profile

This product adopts 32-bit embedded microprocessor with ARM7 core.

This product adopts electronic pressure pulsation suppression technology.

This product adopts high precision DC servo motor

Infusion PumpTechnology Advantage

Ultra-miniaturized design

Expandable to binary high pressure gradient system

It can be expanded to a four-element low-pressure gradient system

No mechanical buffer (electronic pressure pulsation suppression)

The pump head can be replaced according to demand (analysis/semi-preparation)

External control can be carried out through RS-232/485 interface

Ion Chromatography Pump

Infusion Pump Technical Parameter

Flow rate range: 0.001～9.999 mL/min (10mL pump head) 0.01～49.99 mL/min (50mL pump head)

Infusion pump structure: double plunger series reciprocating pump

Flow accuracy: <0.5%

Flow rate reproducibility: 0.2%

Pressure fluctuation: <0.1MPa (secondary water@1mL/min@10MPa) <0.1MPa (secondary water@4mL/min@5MPa)

Pressure range: 0～40MPa 0～25MPa

Remote control: RS-232/485 interface, can be controlled by computer

System protection: the maximum pressure can be set to protect

Display: LCD 2×8 English display

Power supply: 24V, 3A DC

Size/weight: 130×210×110 mm (length×height×depth)/2.8Kg

Qingdao Shenghan Chromatograph Technology Co., Ltd. (SHINE) was established in 2002, specializing in the R&D, production, sales and after-sales service of ion chromatograph and relevant parts. It is a high-tech enterprise with ISO 9001 quality management system certification and ISO 24001 environmental management system certification. The total number of independent intellectual property rights, patents and software copyrights belonging to SHINE is about 100.

At present, the company has 4 series of ion chromatograph:desktop IC, portable IC, online IC and customized IC , which are widely used in environmental protection, food and drug, hydrogeology, petrochemical, health and epidemic prevention, electronic and electrical, scientific research and other industries. It basically meets the requirements of routine and trace detection of anion, cyanide, iodide, sugar, small molecular organic acid, etc. At present, it has provided perfect solutions for 5000 + users in different industries and exported to more than 40 countries and regions . In addition, SHINE is one of the few enterprises in the world that can realize mass production of IC columns.

In 2012, 2013 and 2016, SHINE has undertaken “National Major Scientific Instrument and Equipment Development Projects” for 3 times, and won the special "Science and Technology Enterprise Innovation Fund" project and the "National Key New Product Plan" project of the Ministry of Science and Technology. It is a “Individual Champion of Manufacturing Industry in Shandong”and "The Third Batch of National Manufacturing Industry Single Champion Cultivation Enterprises", and was shortlisted in “2019 Shandong High Tech Top 50 Brand” list and become “China's Top 500 Patent Enterprises”.

To protect the rights and interests of users, SHINE has set up a powerful after-sales service team with 24-hour free customer service hotline, 8 authorized after-sales service stations in China, and cooperates with foreign local agents to ensure response within 2 hour and relieve users' worries.

Through rapid development, the company has grown in enterprise scale, R & D and market share. It is a highly recognized solution provider for ion chromatography in China.
